PowerQUAD™ 20/30/55 Gallon Liquid Shut-Off Assembly

PowerQUAD™ 20/30/55 Gallon Liquid Shut-Off Assembly

Part Number: PQ638

  • PowerQUAD 20/30/55 Gallon Liquid Shut-Off Assembly

    PQ638

1 1
$111.38 USD
$111.38 USD
Sale Sold out

Ideal for wet vacuum applications, Liquid Shutoff Assembly limits intake of vacuumed fluids when drum is full, preventing damage to exhaust silencer. Float ball rises as liquid level rises, blocking vacuum inlet of the PowerQUAD™ engine, ceasing vacuum operation. Wire cage with internal float ball mounts to underside of drum cover and replaces cartridge filter. Fits Guardair PowerQUAD™ 20, 30 and 55 Gallon Drum Vacuums and Vacuum Generating Heads.

View full details

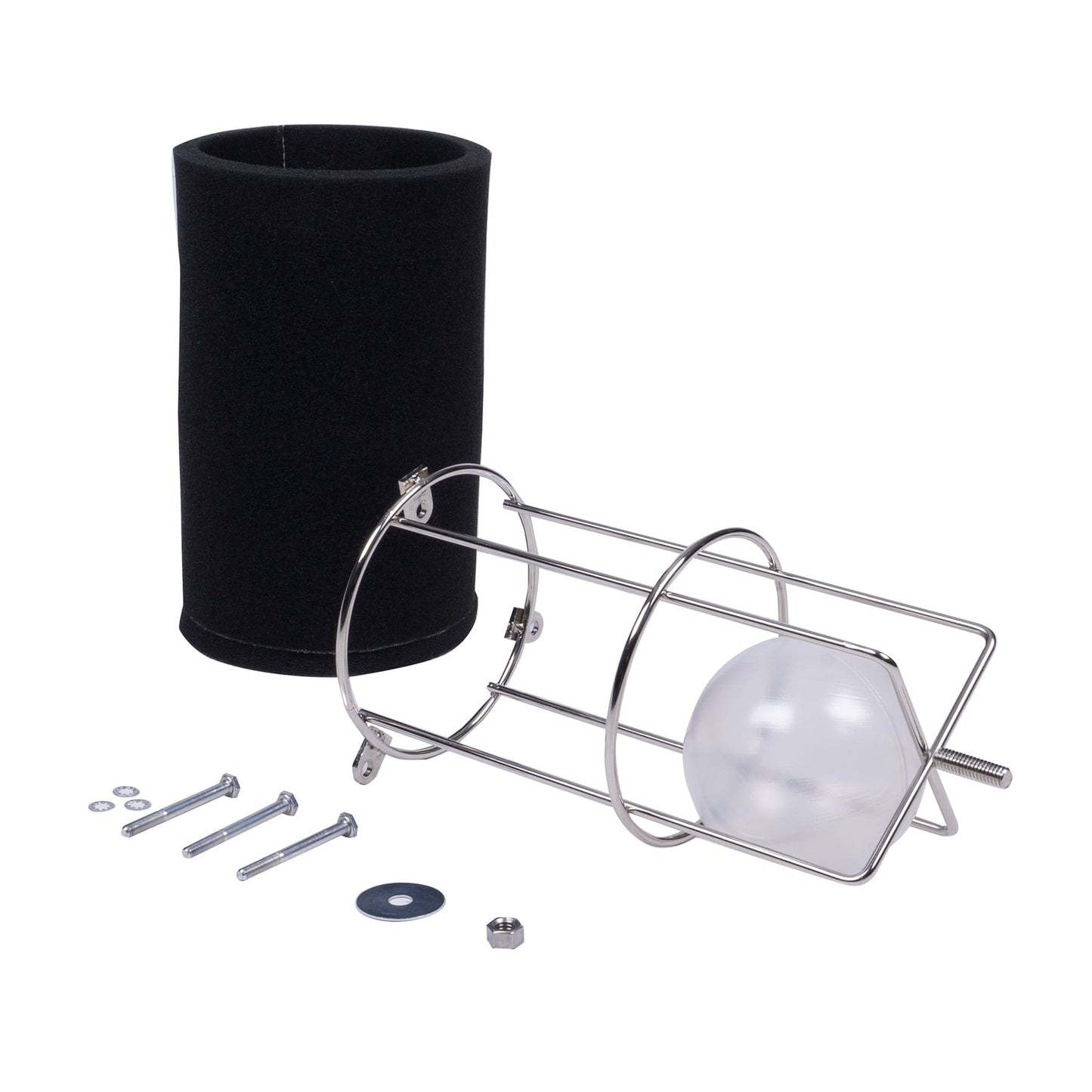

  • Wire cage with internal float ball
  • (1) 20/30/55 Gal Wire Cage Coalescing Filter
  • (1) Installation Hardware
  • (1) Wire Cage
  • (1) Ball Float
    • Wire cage with internal float ball
  • (1) 20/30/55 Gal Wire Cage Coalescing Filter
  • (1) Installation Hardware
  • (1) Wire Cage
  • (1) Ball Float
    • Part Number Dimensions
    (L" x W" x H")     		Weight
    (lbs)
    Part Number PQ638 Dimensions
    (L" x W" x H")     6.8 X 6.8 X 11.2     		Weight (lbs) 0.7
    Lead Time: 2 Days
