Personnel Cleaning Station NED 5.5 Gallon Vacuum

Personnel Cleaning Station NED 5.5 Gallon Vacuum

Part Number: CS3000NED

Skip to product information
1 of 5
Regular price $2,452.82 USD
Regular price Sale price $2,452.82 USD
Sale Sold out

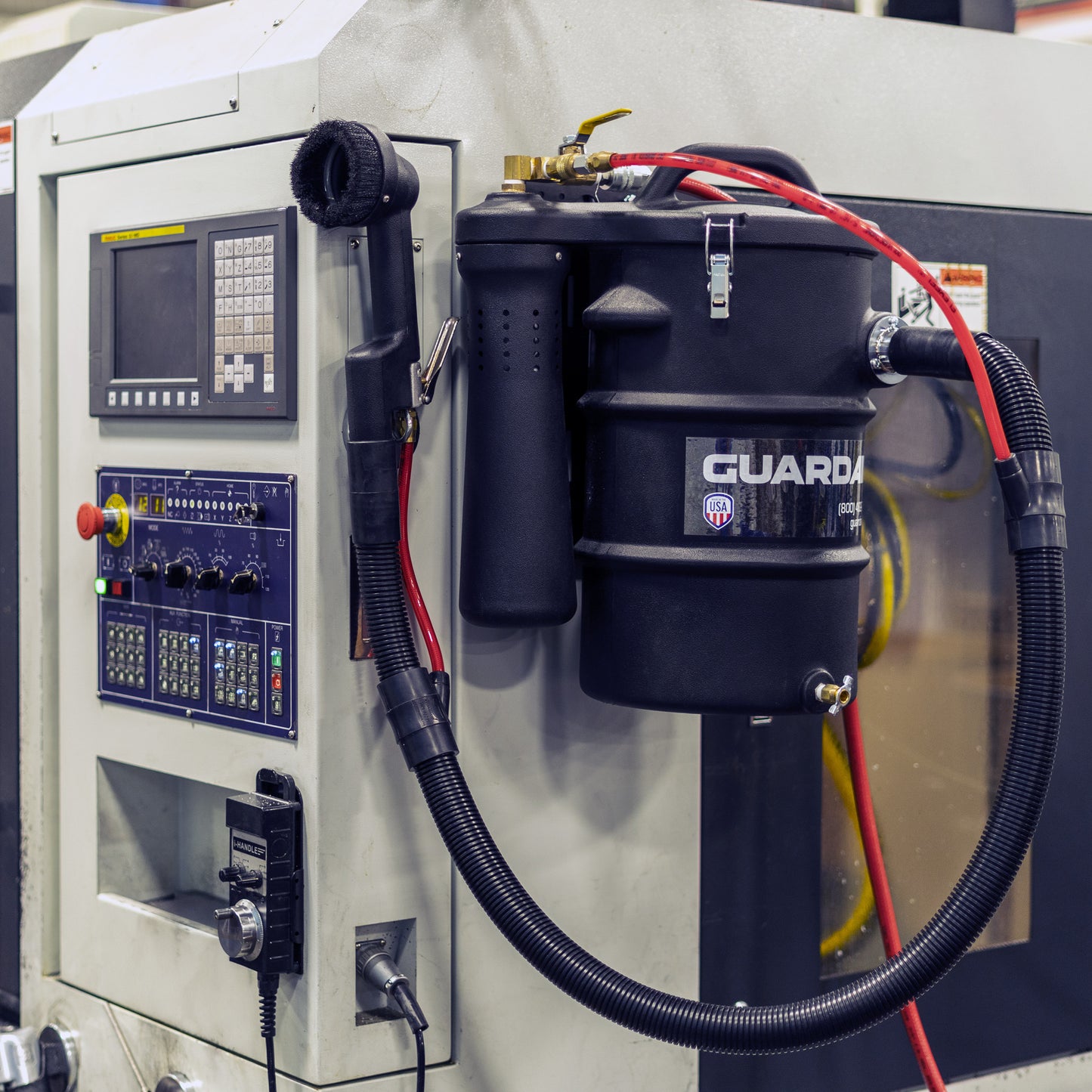

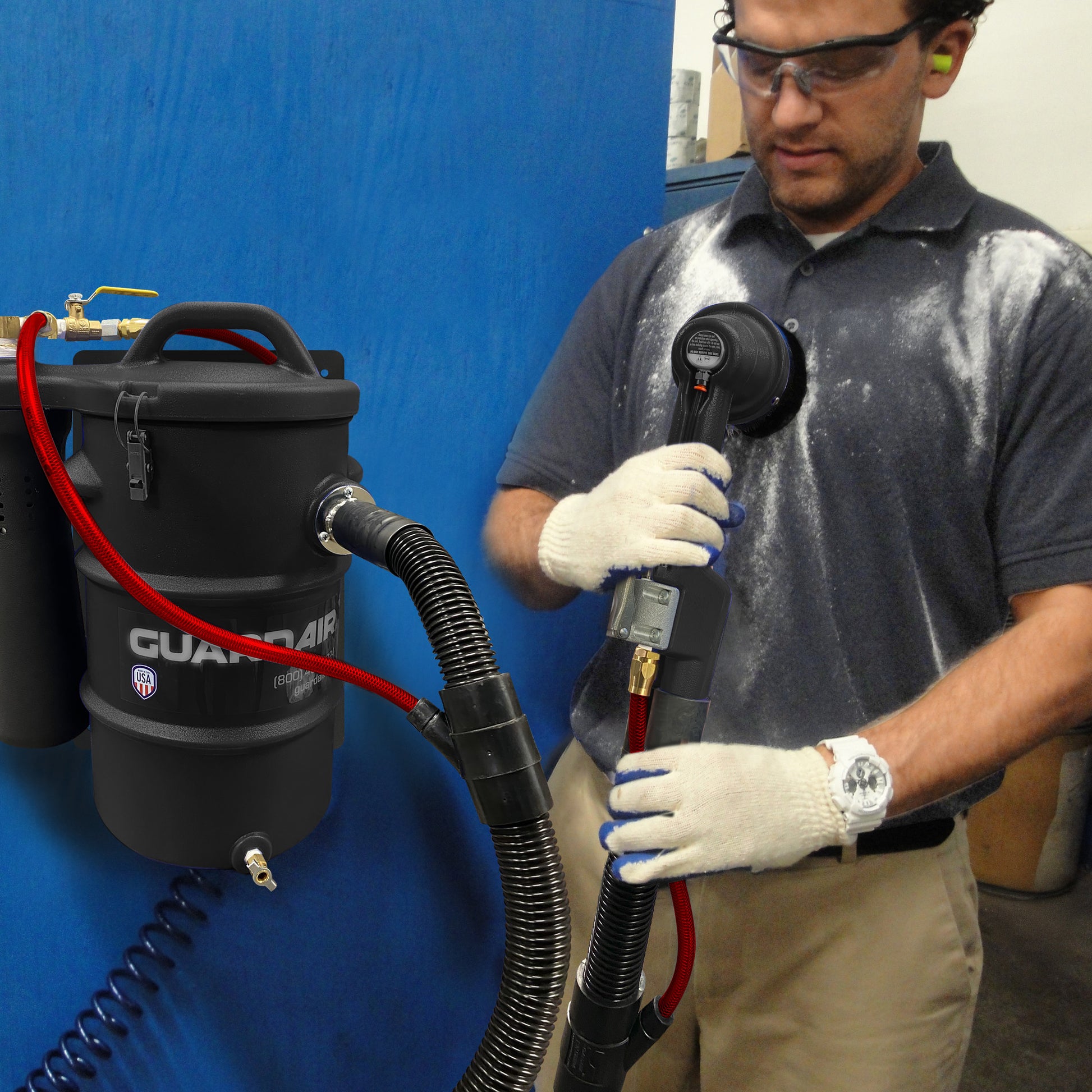

Eliminate the dangerous practice of self-cleaning with air guns! Powered by standard shop compressed air, the Personnel Cleaning Station NED (Non-Electrical Discharge) quickly vacuums dust, powders, and chips off worker clothing and skin. Pairing a high-efficiency pneumatic vacuum with a proprietary, on-demand air-agitator brush attachment, the Personnel Cleaning Station NED is safe and effective. Thumb-switch activated, the air-agitator loosens and lifts particles airborne into the vacuum hose for transport to the container. With no electric motor to burn out, the unit is virtually maintenance free. Constructed from electrically conductive components, the Personnel Cleaning Station NED suppresses the buildup of static charges for safe use with combustible materials commonly found in manufacturing, chemical, and food processing facilities. Static conductive vacuum and air supply hose ensure static suppression. Includes pre-drilled mounting plate for mounting the unit on vertical surfaces, thereby saving valuable factory floor space. Grounding lug provides extra degree of safety. Proudly made in USA.

PERSONNEL CLEANING STATION NED is not approved for use in CLASS 1, 2, or 3 HAZARDOUS LOCATIONS as defined by the National Fire Protection Association (NFPA).

View full details

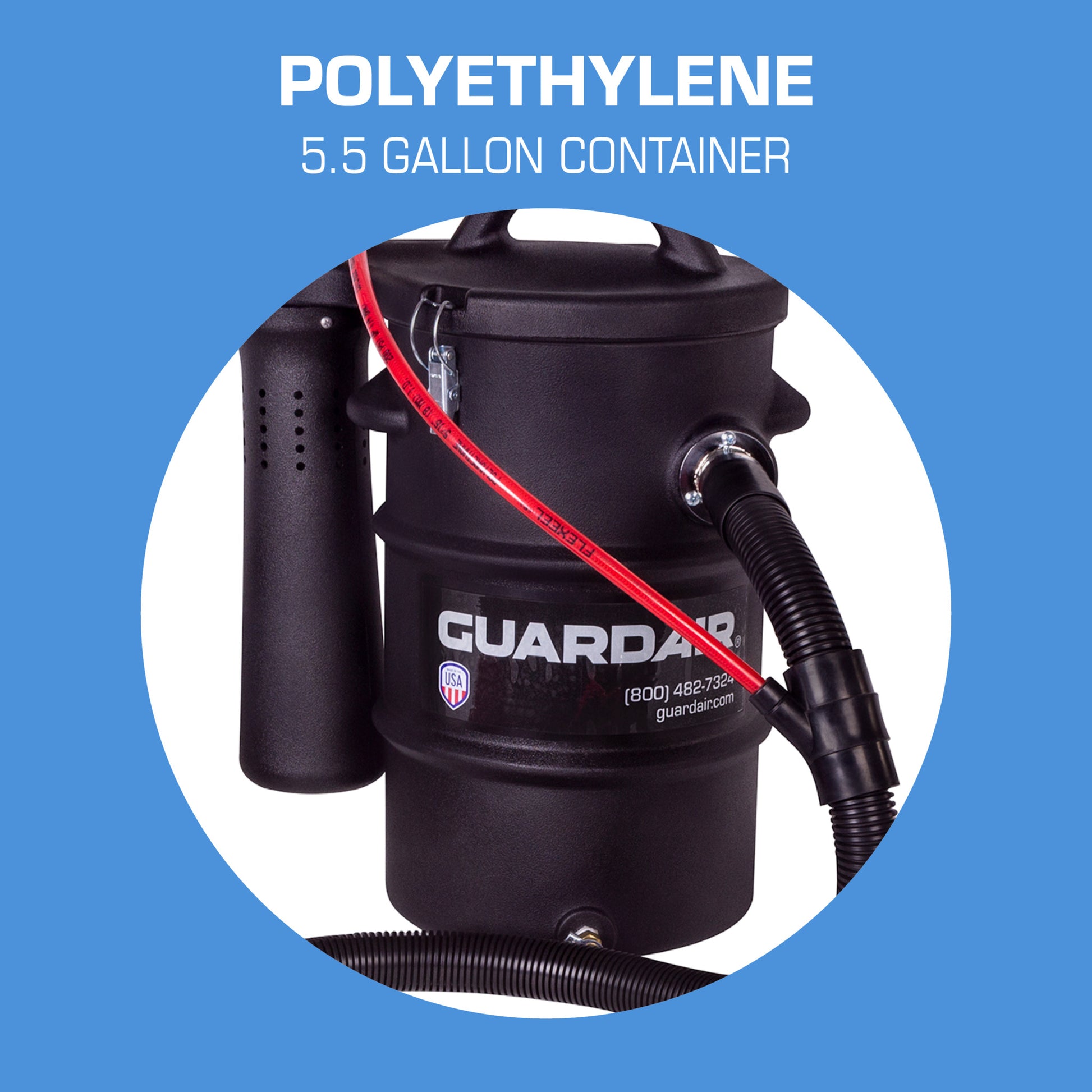

  • 5.5 gallon, static conductive polyethylene container
  • Standard cartridge filter (77% efficient @ 0.8 microns)

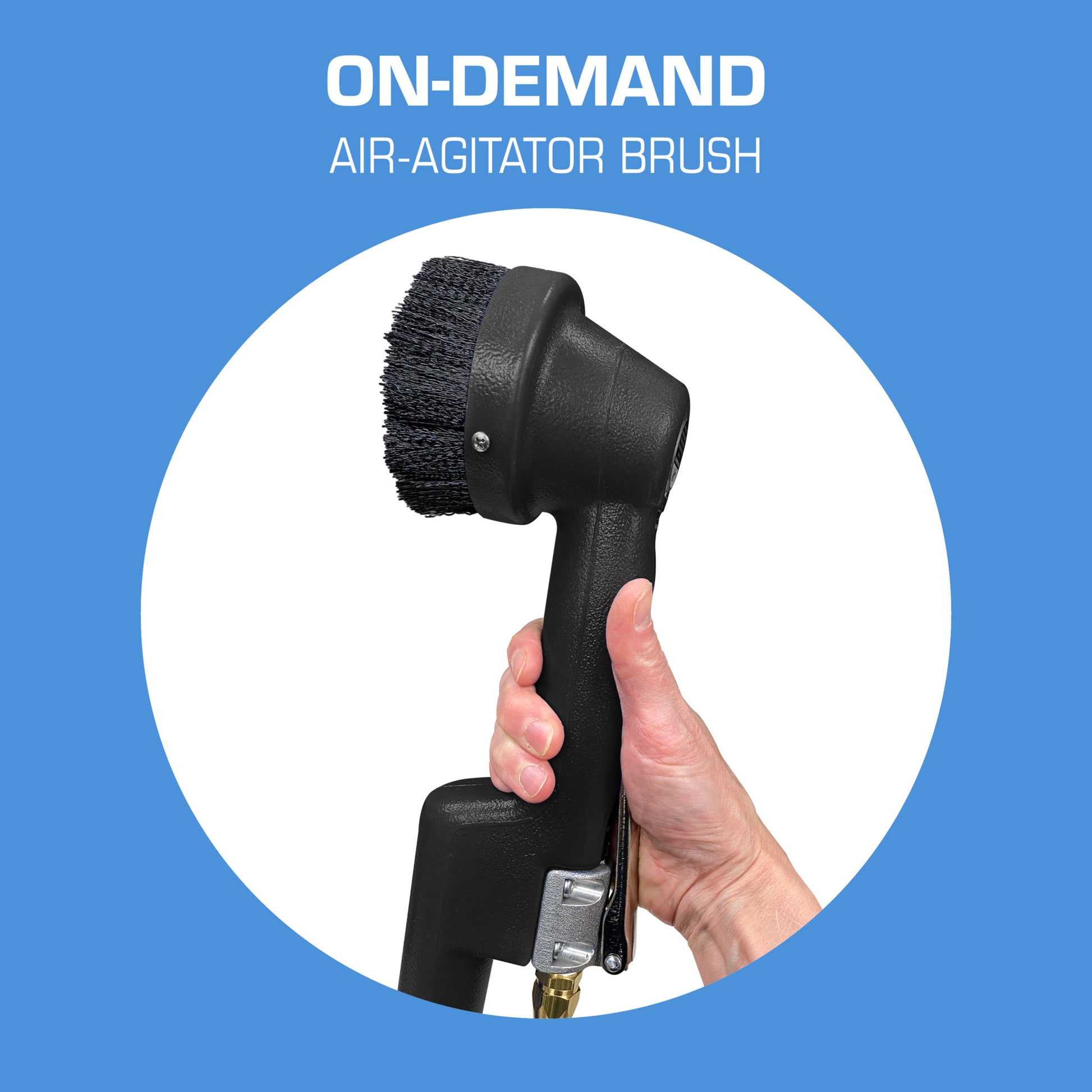

  • Static conductive, air-agitator brush attachment

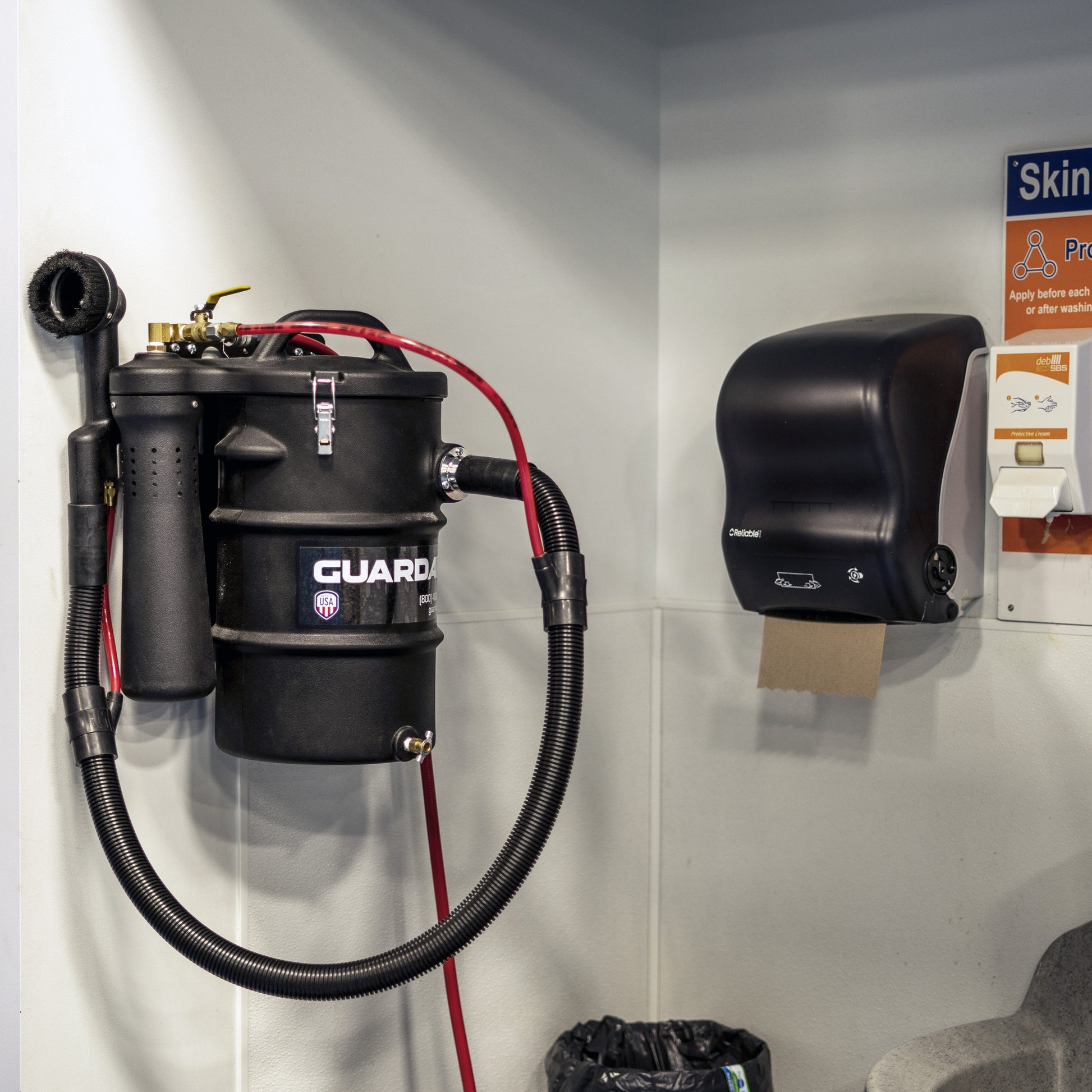

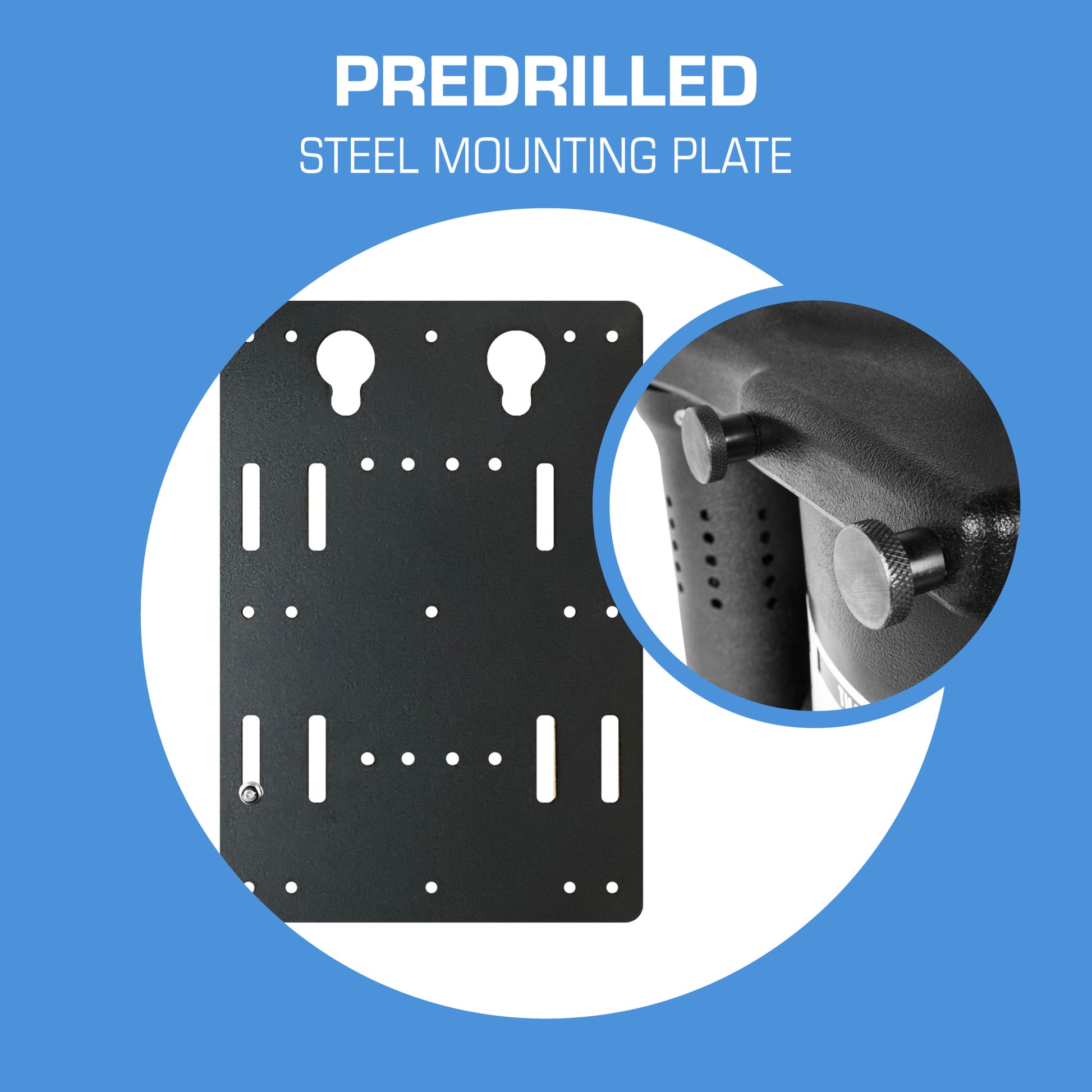

  • Pre-drilled, steel vertical mounting plate

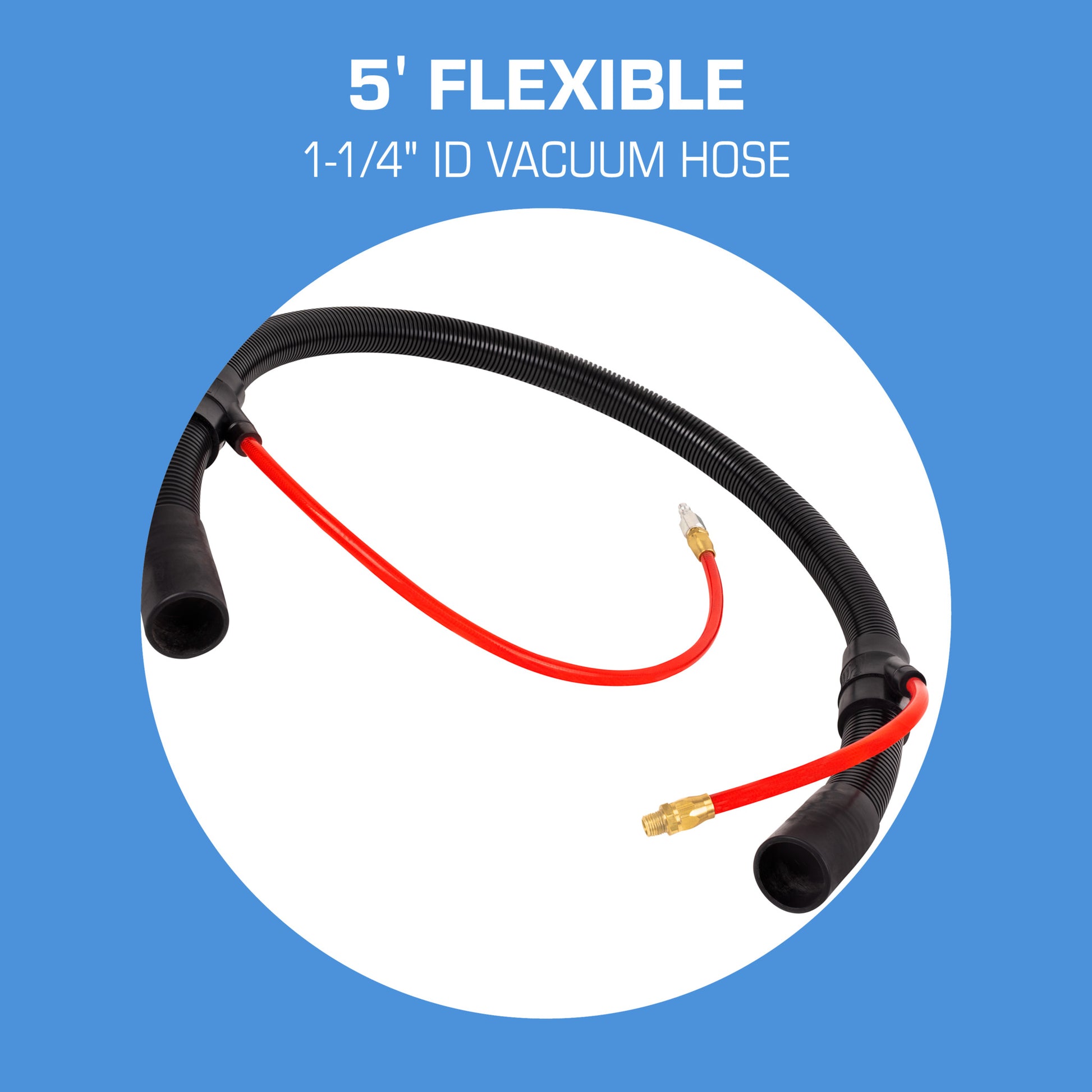

  • 1-1/4” ID x 5’ static conductive vacuum hose
  • 3⁄8” ID x 20’ static conductive air hose

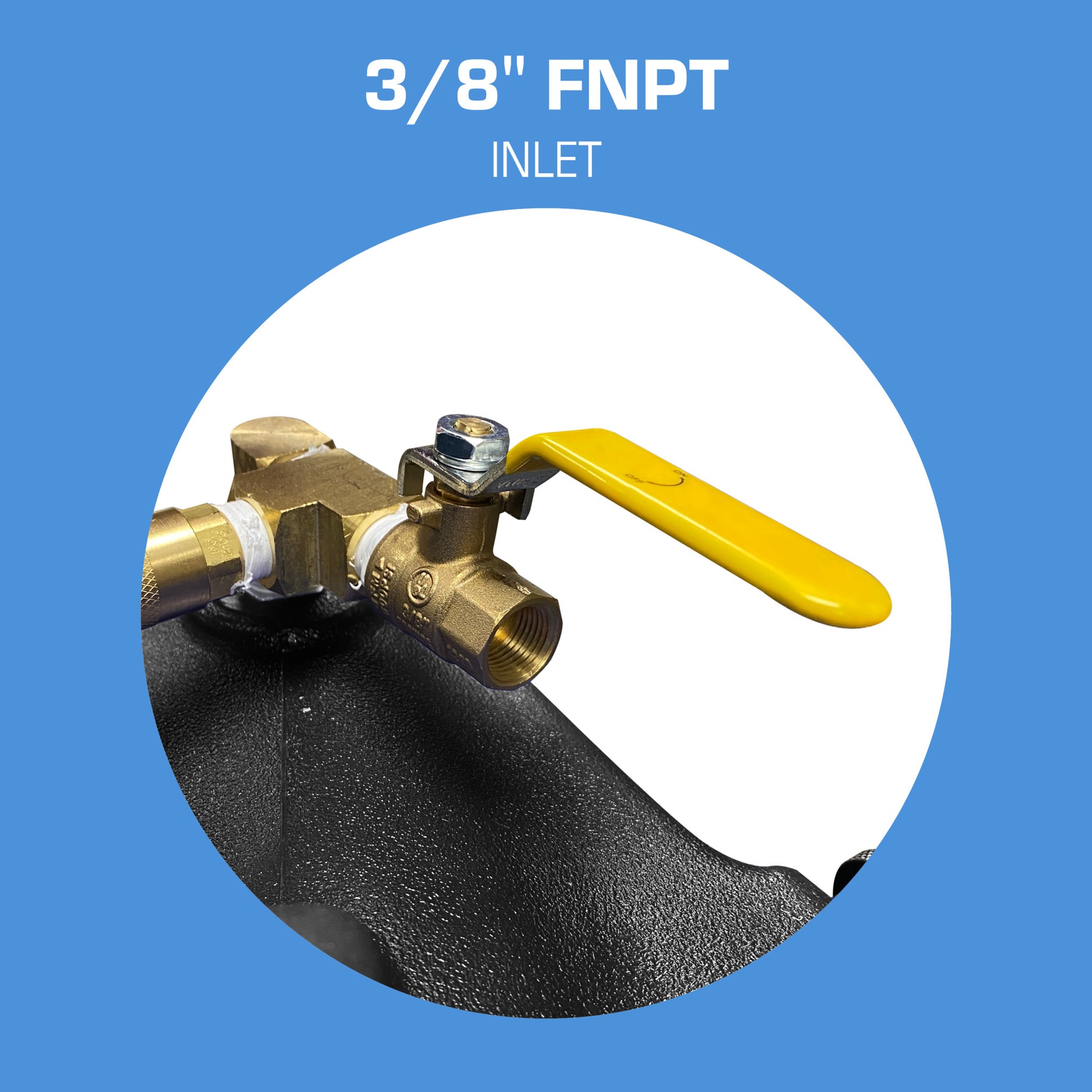

  • Shutoff valve with 3⁄8” FNPT inlet

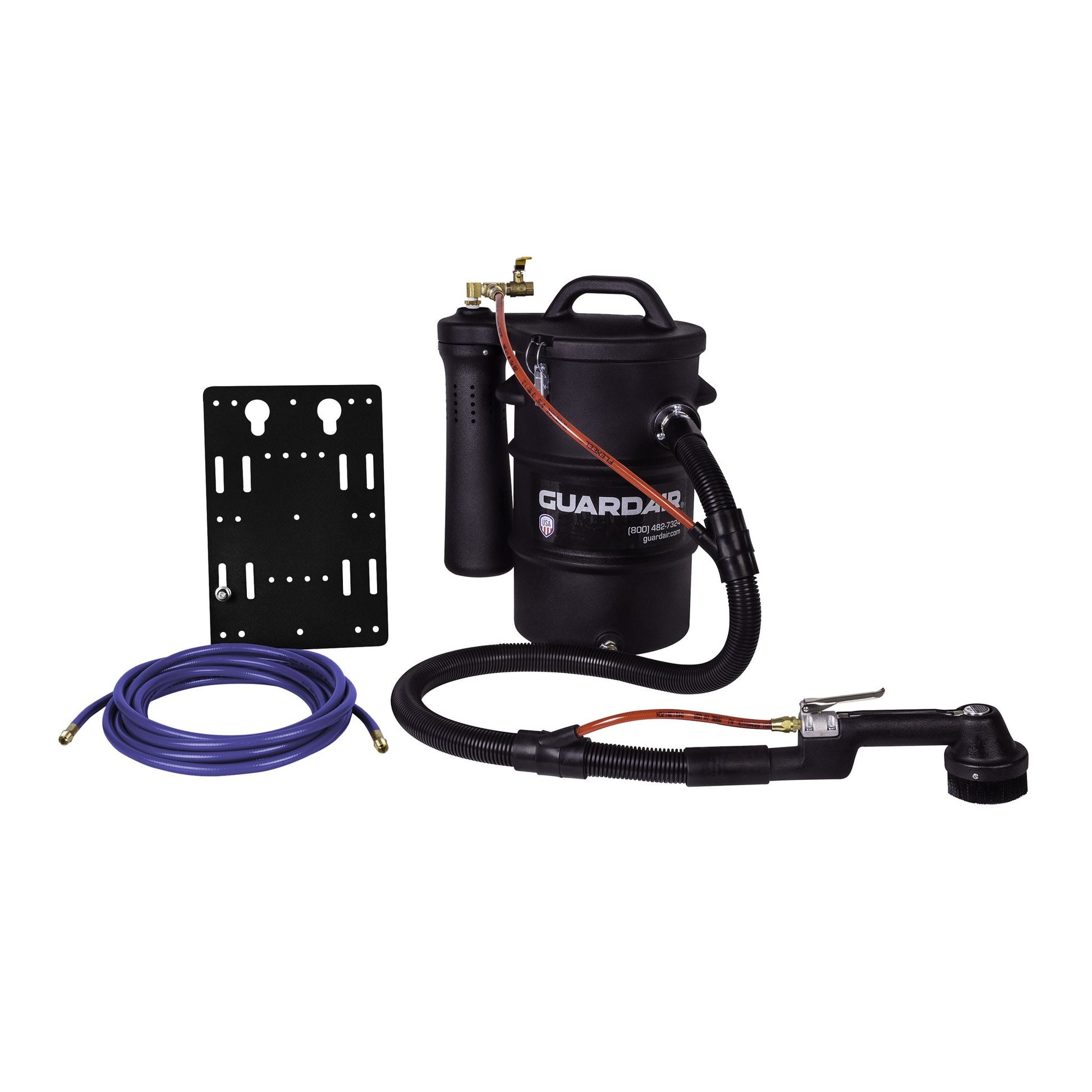

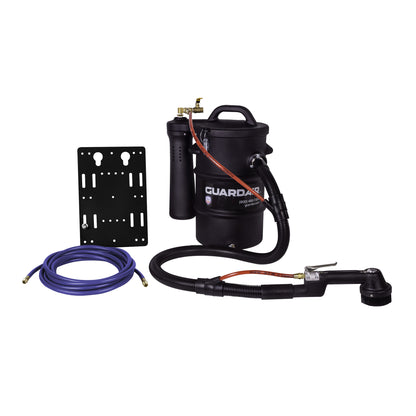

  • (1) Personnel Cleaning Station NED
  • 1) Mounting Plate w/ Hardware
  • (1) 1-1/4" ID x 5' Vacuum Hose
  • (1) Air-agitator Brush Attachment
  • (1) 20' Static Conductive Air Supply Hose

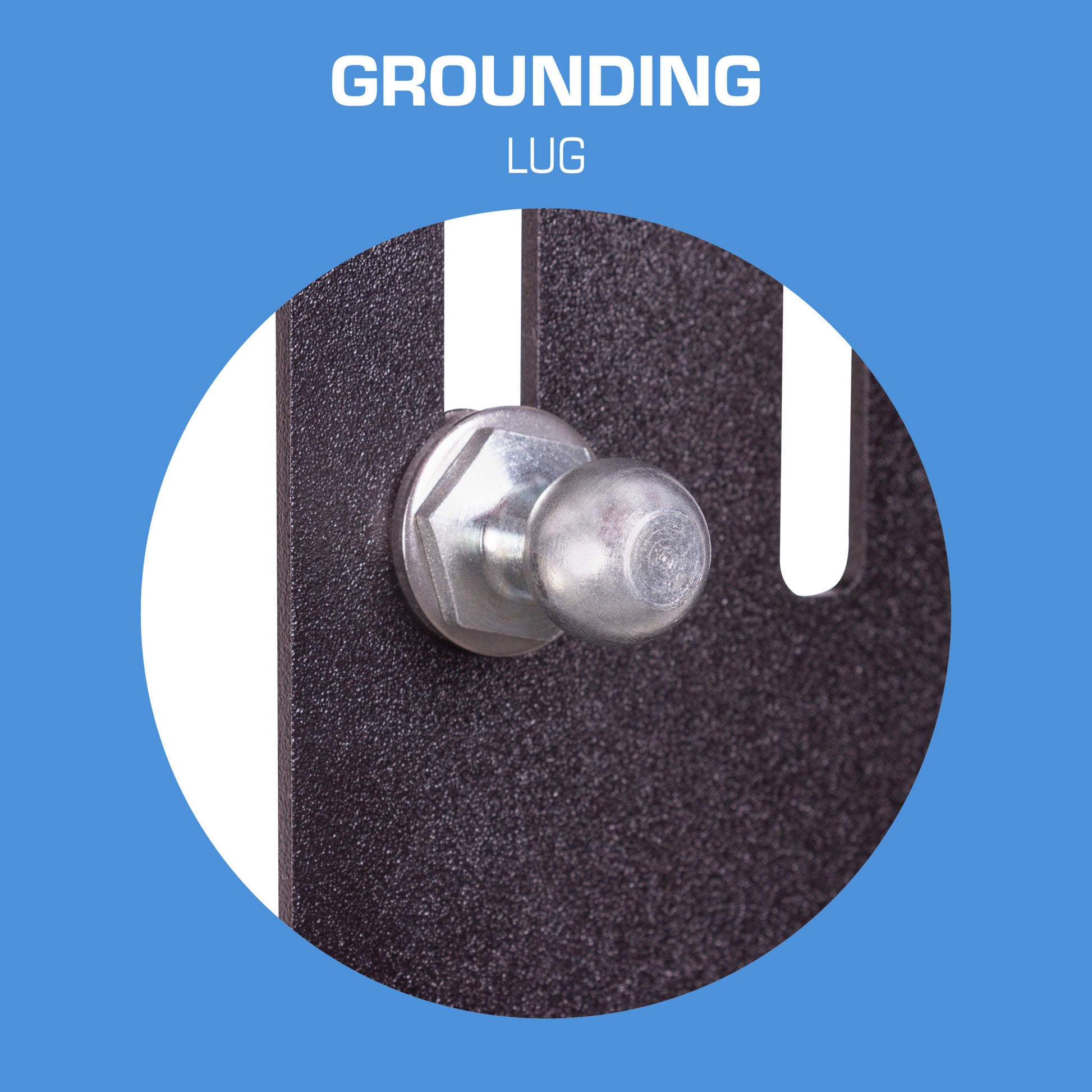

  • (1) Grounding Lug
    • 5.5 gallon, static conductive polyethylene container
    • Standard cartridge filter (77% efficient @ 0.8 microns)
    • Static conductive, air-agitator brush attachment
    • Pre-drilled, steel vertical mounting plate
    • 1-1/4” ID x 5’ static conductive vacuum hose
    • 3⁄8” ID x 20’ static conductive air hose
    • Shutoff valve with 3⁄8” FNPT inlet
  • (1) Personnel Cleaning Station NED
  • 1) Mounting Plate w/ Hardware
  • (1) 1-1/4" ID x 5' Vacuum Hose
  • (1) Air-agitator Brush Attachment
  • (1) 20' Static Conductive Air Supply Hose
  • (1) Grounding Lug
  • Part Number Vacuum
    Hose ID
    (in)
    Compressed
    Air Inlet
    (in)
    Compressed
    Air Usage
    (cfm)
    Min. Size
    Air Compressor
    (hp)
    Vacuum Flow
    (cfm)
    Vacuum
    Lift
    (in H20)
    Noise
    Level
    (dBA)
    Dimensions
    (L" x W" x H")
    Weight
    (lbs)
    Part Number CS3000NED Vacuum Hose ID 1.3 Inlet Connection 3/8 Flow (cfm) 33 Min. Compressor Required (hp) 4.7 Vacuum Flow (cfm) 73 Vacuum Lift (in H20) 77 Noise Level (dB) 88 Dimensions
    (L" x W" x H")
    21.8 X 12.5 X 17
    Weight (lbs) 20.6
