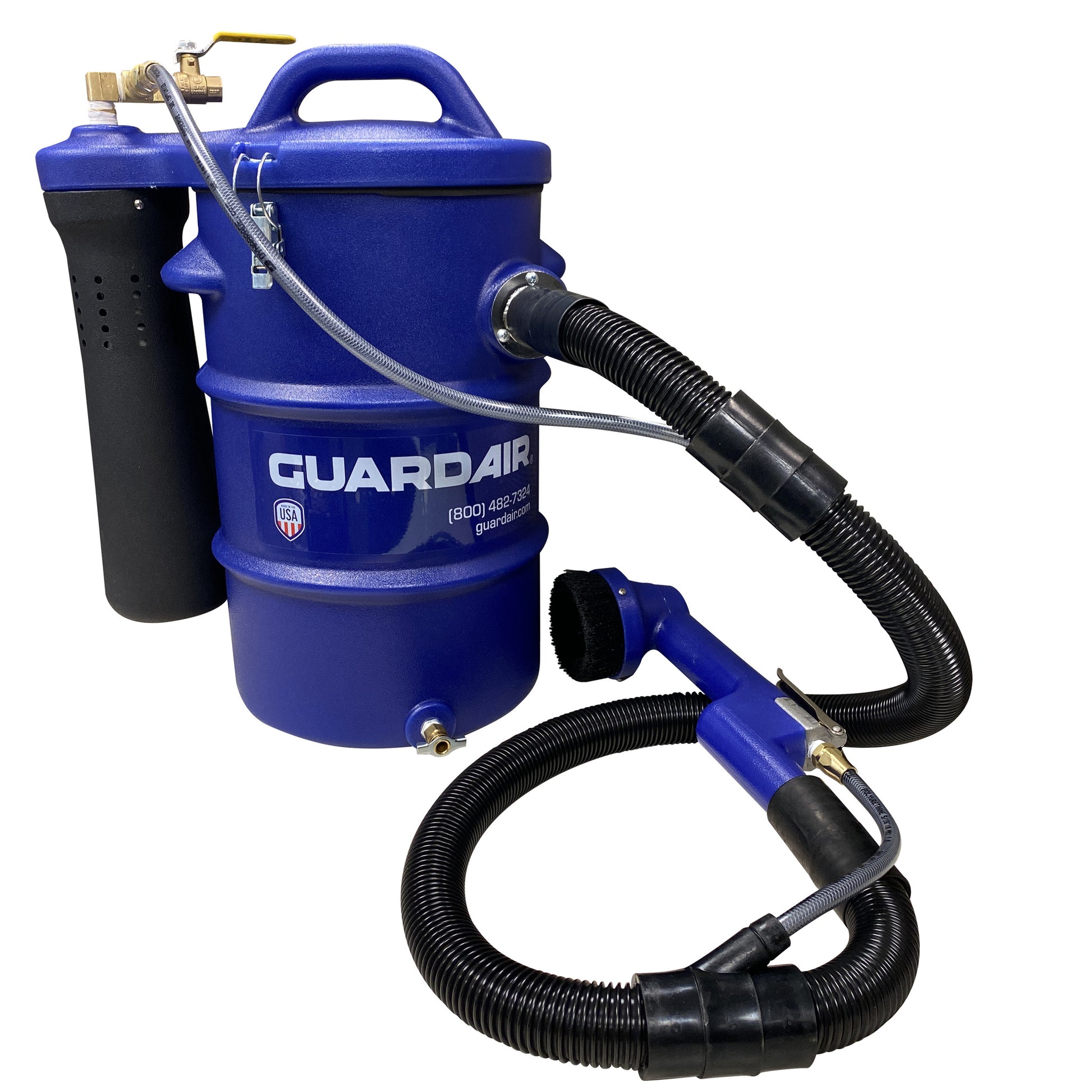

Personnel Cleaning Station 5.5 Gallon Vacuum

Personnel Cleaning Station 5.5 Gallon Vacuum

Part Number: CS3000

1 14
$1,947.32
$1,947.32
Sale Sold out

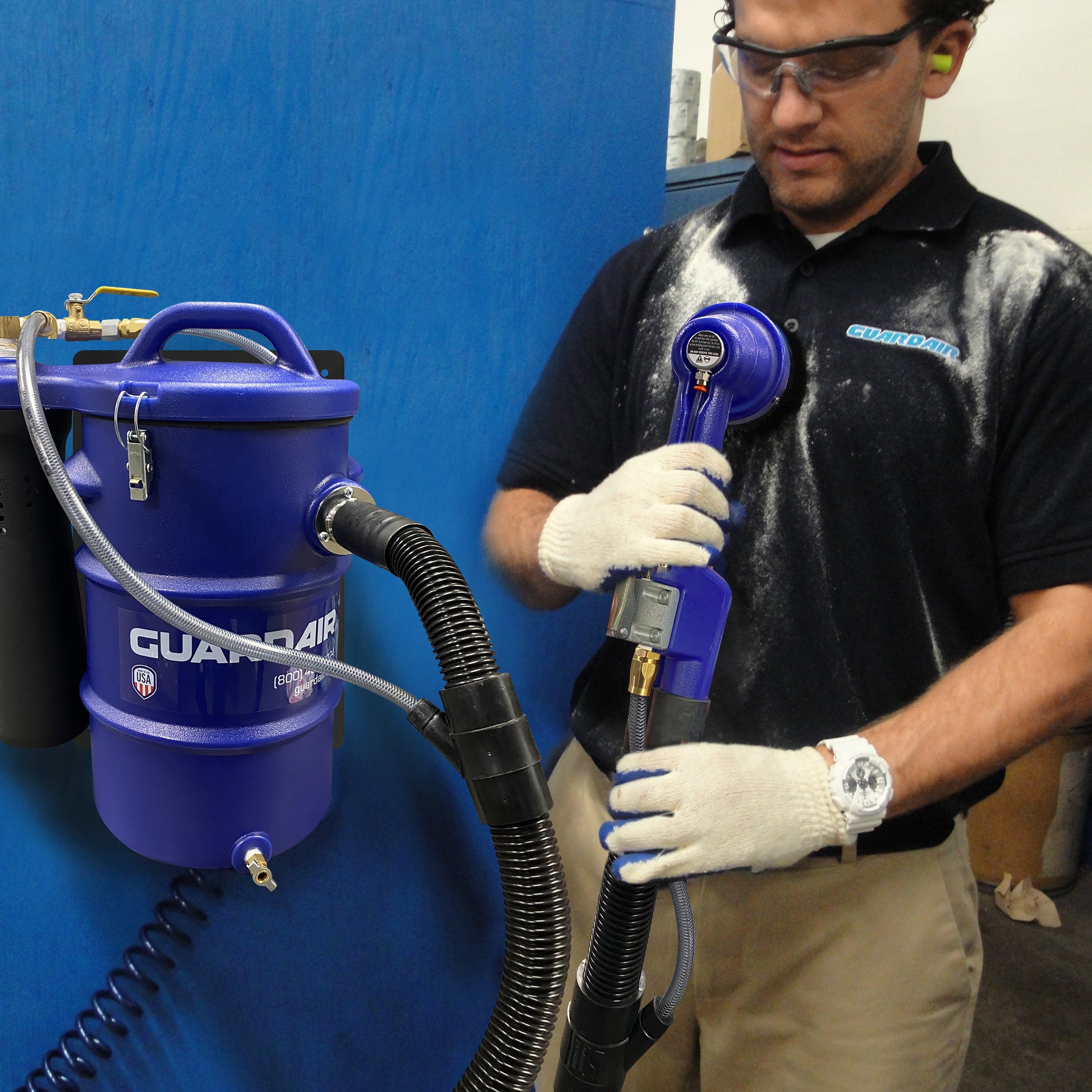

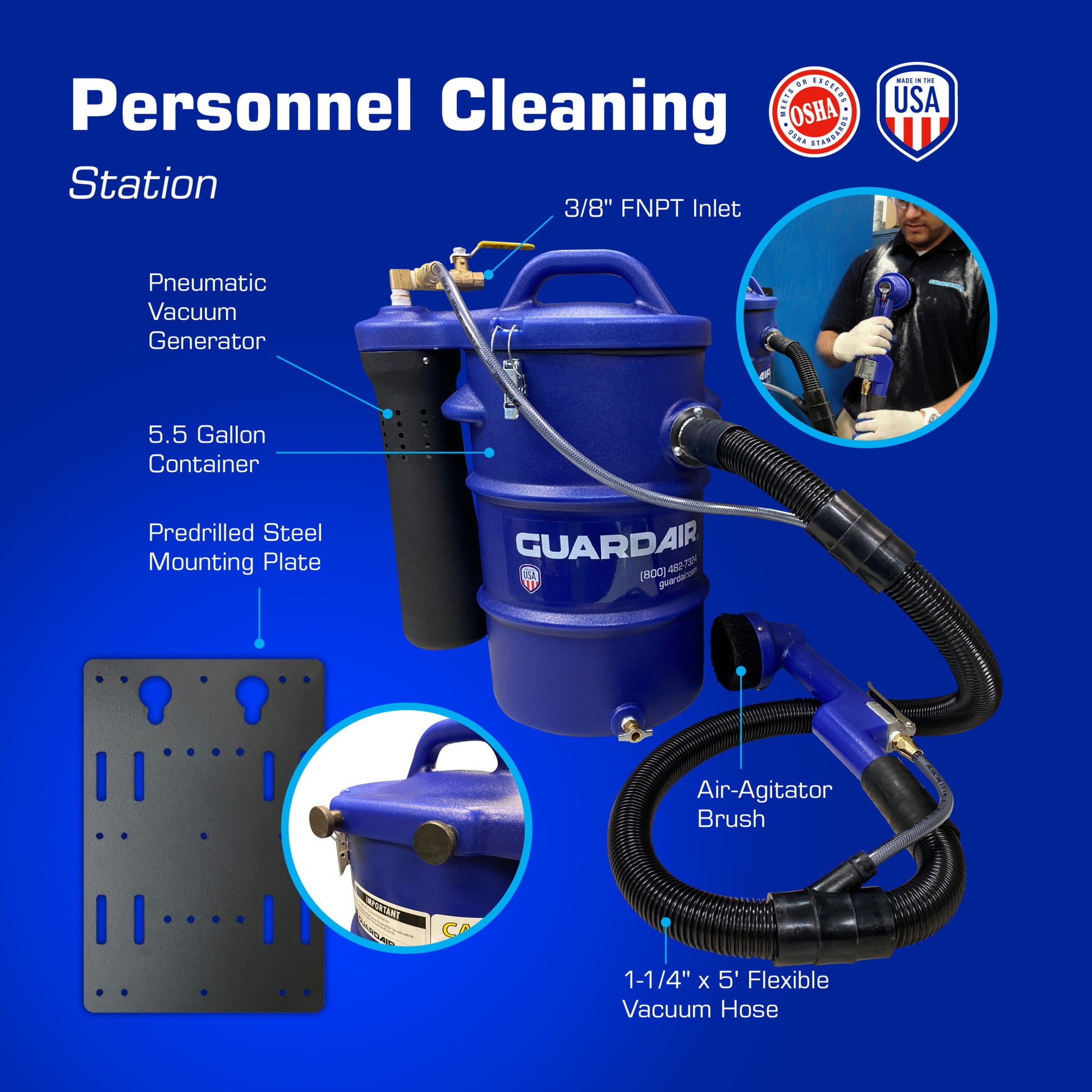

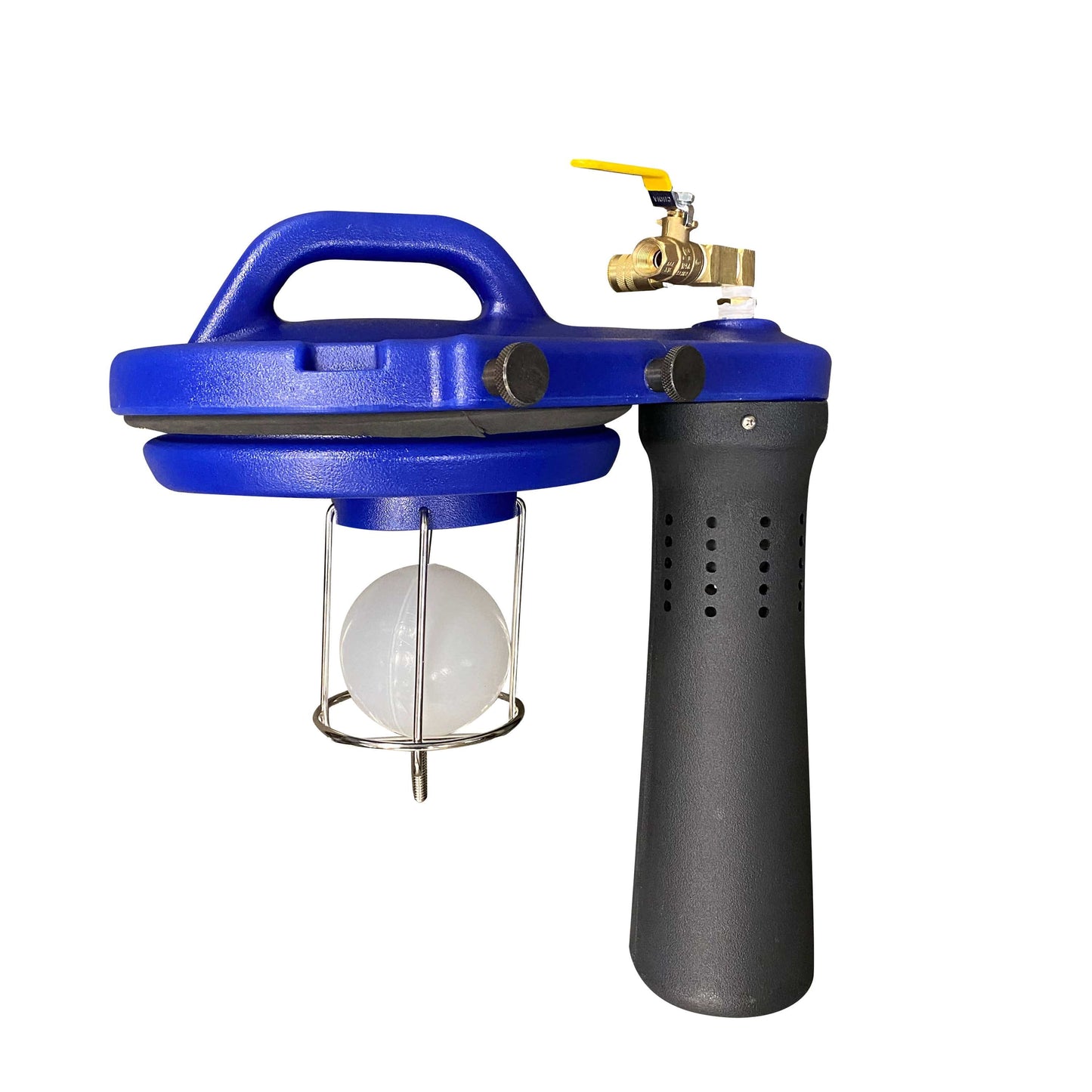

Running off standard shop compressed air, the CS3000 Personnel Cleaning Station pairs a proprietary, on-demand air-agitator brush attachment with a high-efficiency pneumatic vacuum. Thumb-switch activated, the air-agitator loosens and lifts particles airborne where the vacuum sucks them away safely and effectively. With no motor to burn out, the CS3000 is virtually maintenance-free. Vertical Mounting System (VMS) mounts on any vertical surface, saving valuable factory floor space. Non-returnable item.

View full details

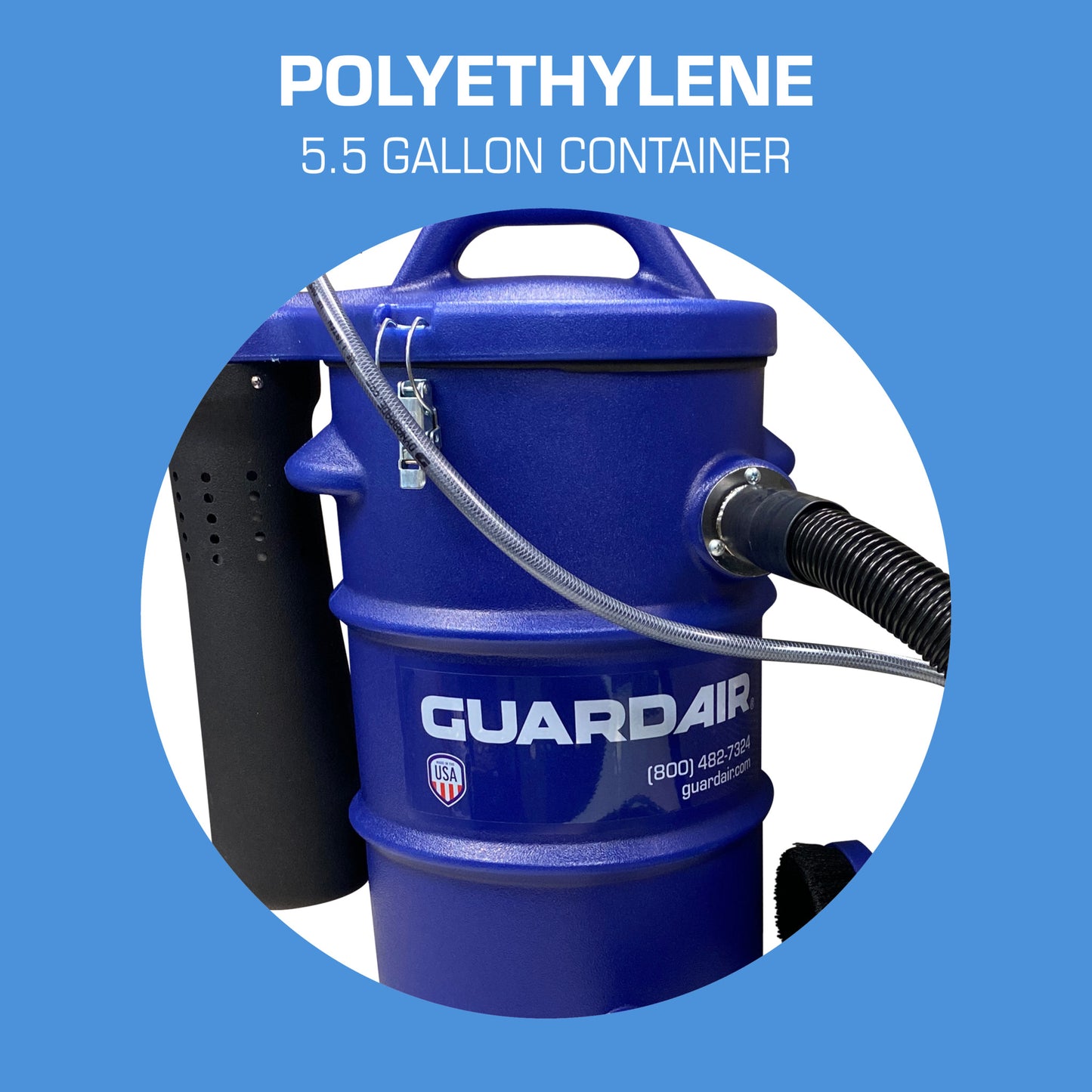

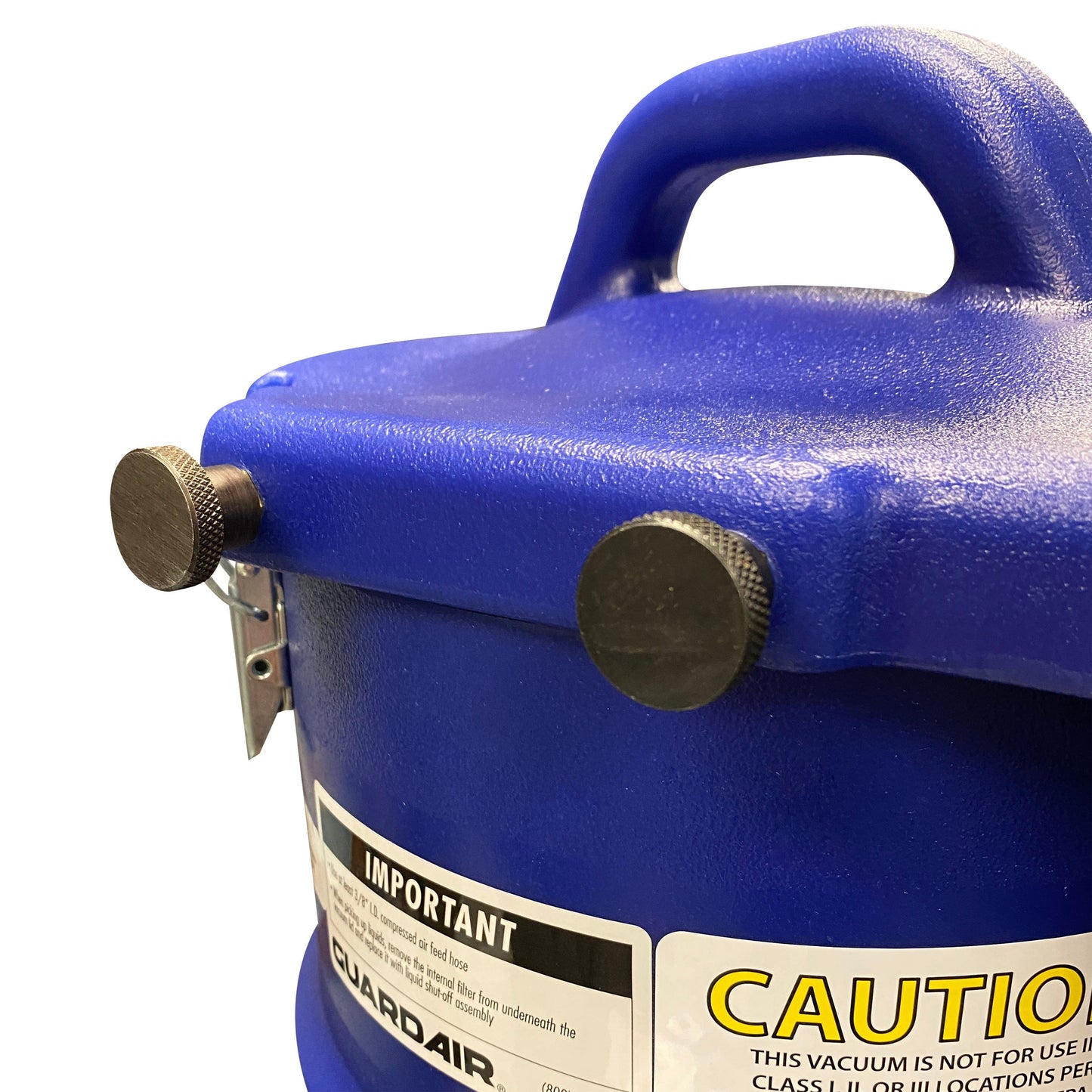

  • 5.5 gallon chemical resistant polyethylene container

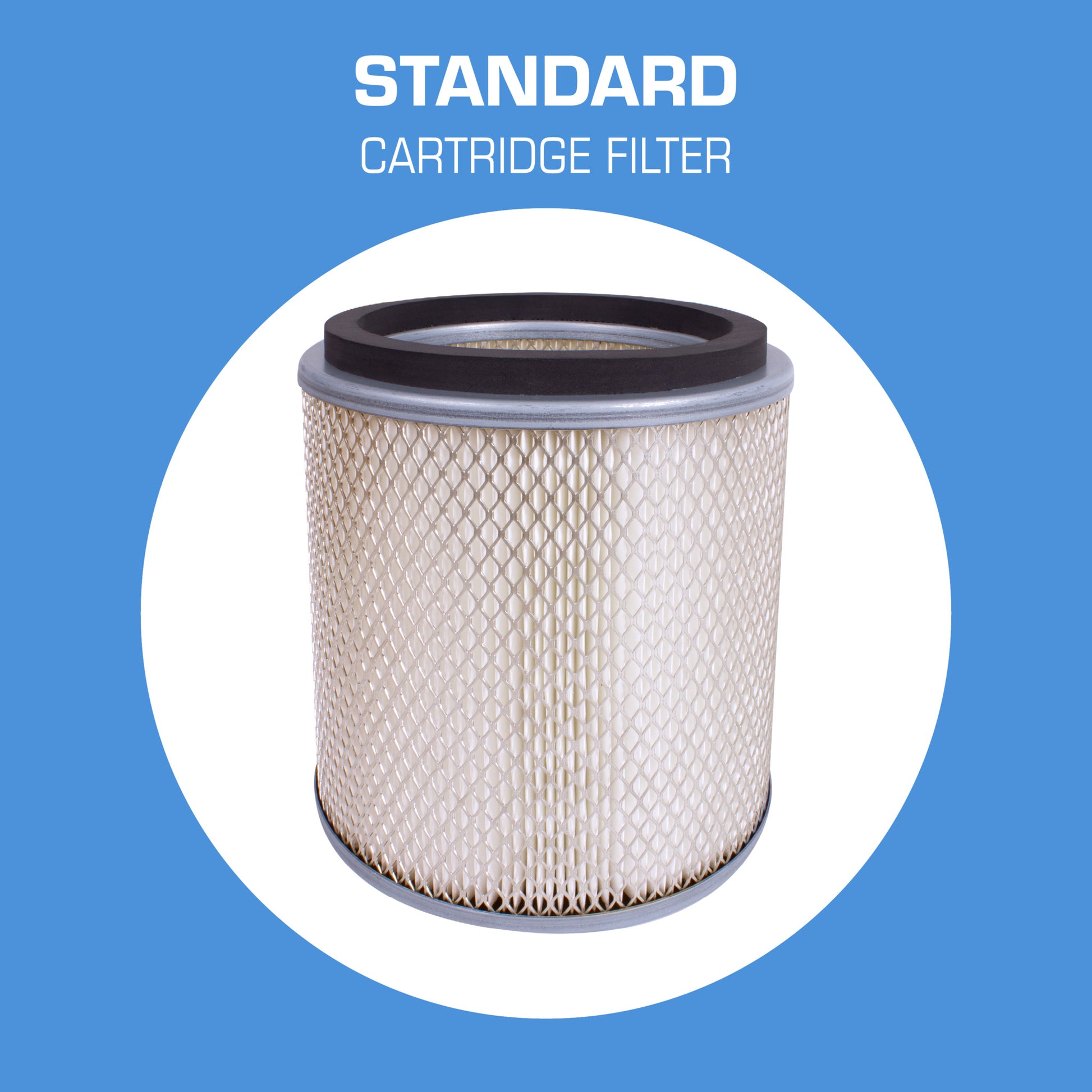

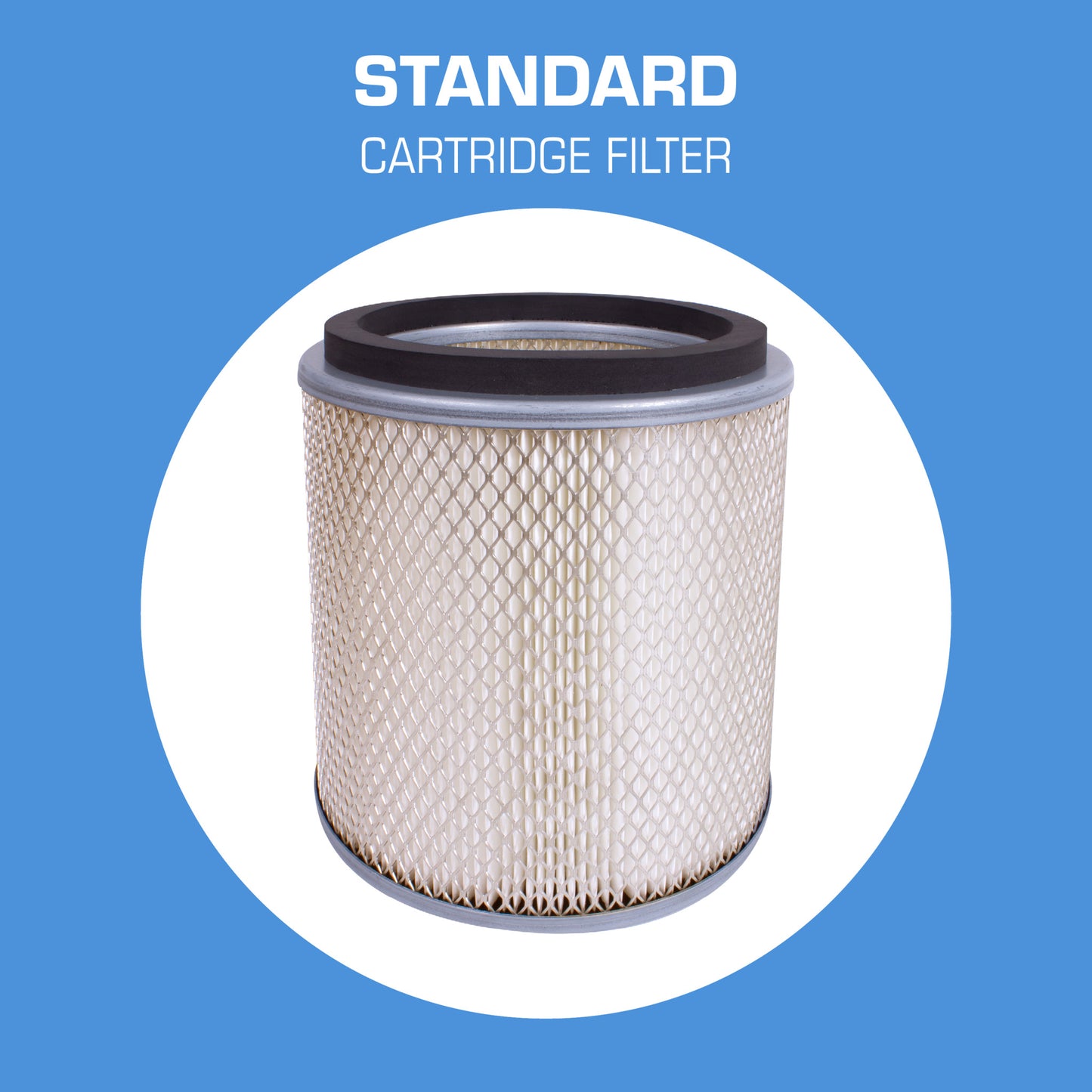

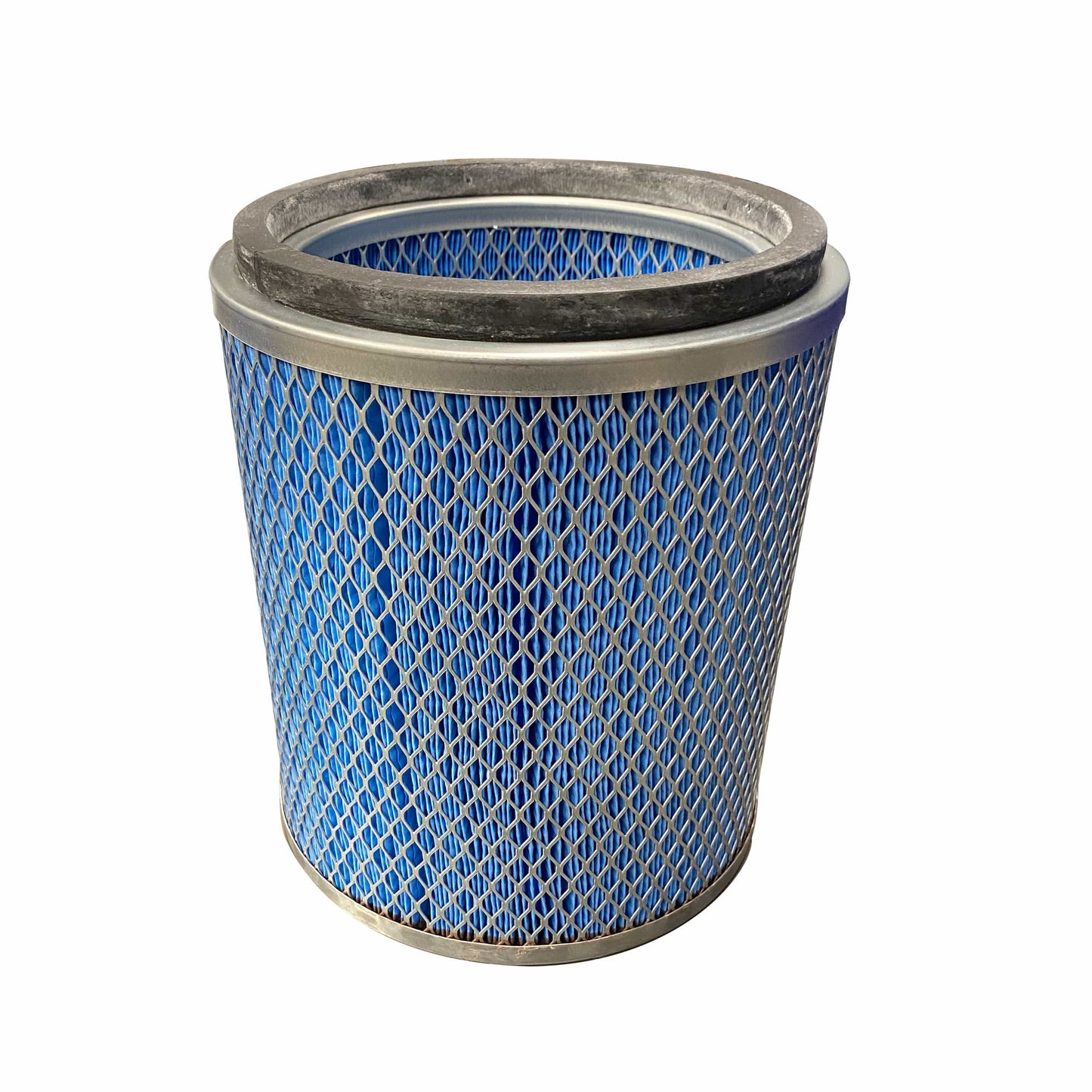

  • Cartridge filter (77% Efficient @ 0.8 Microns)

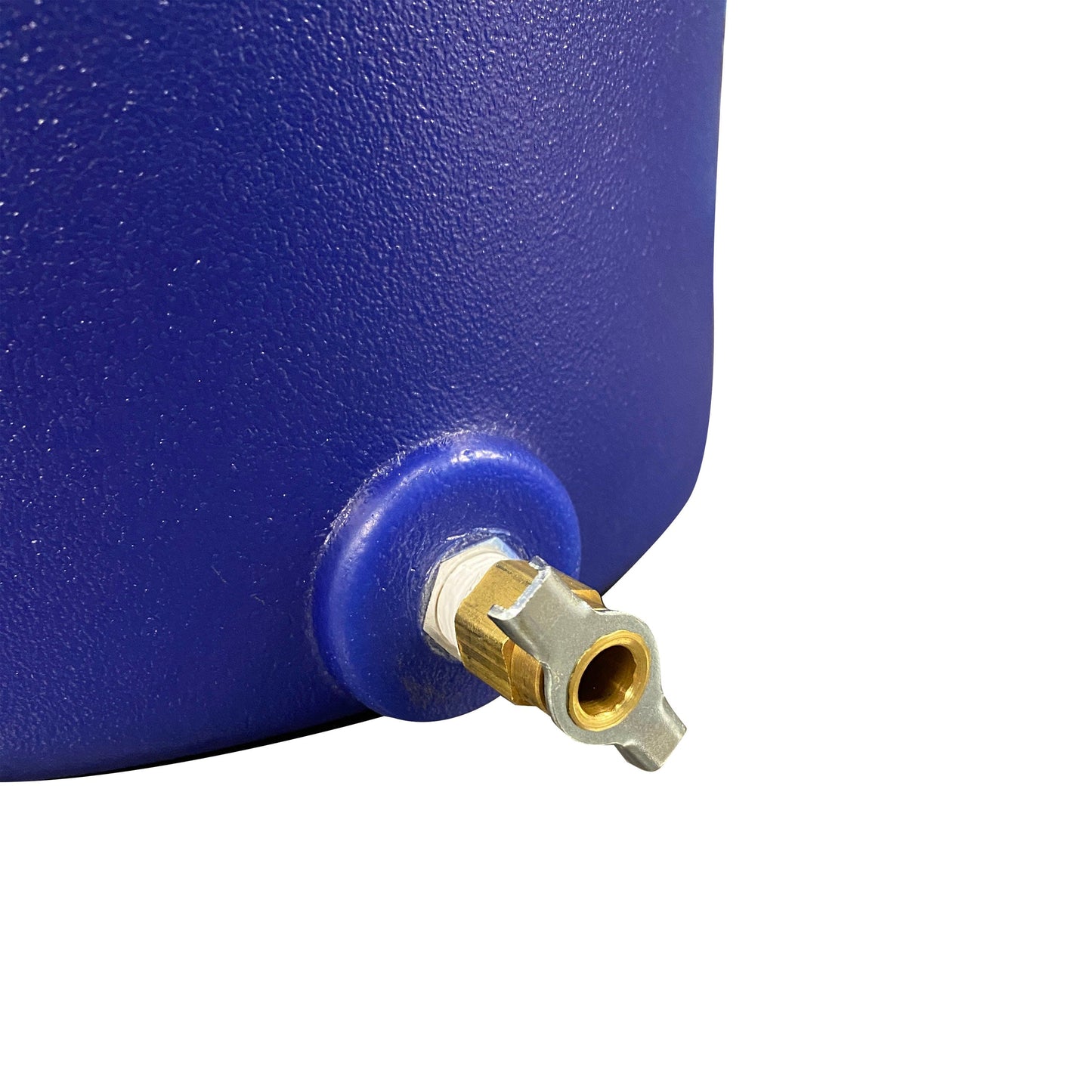

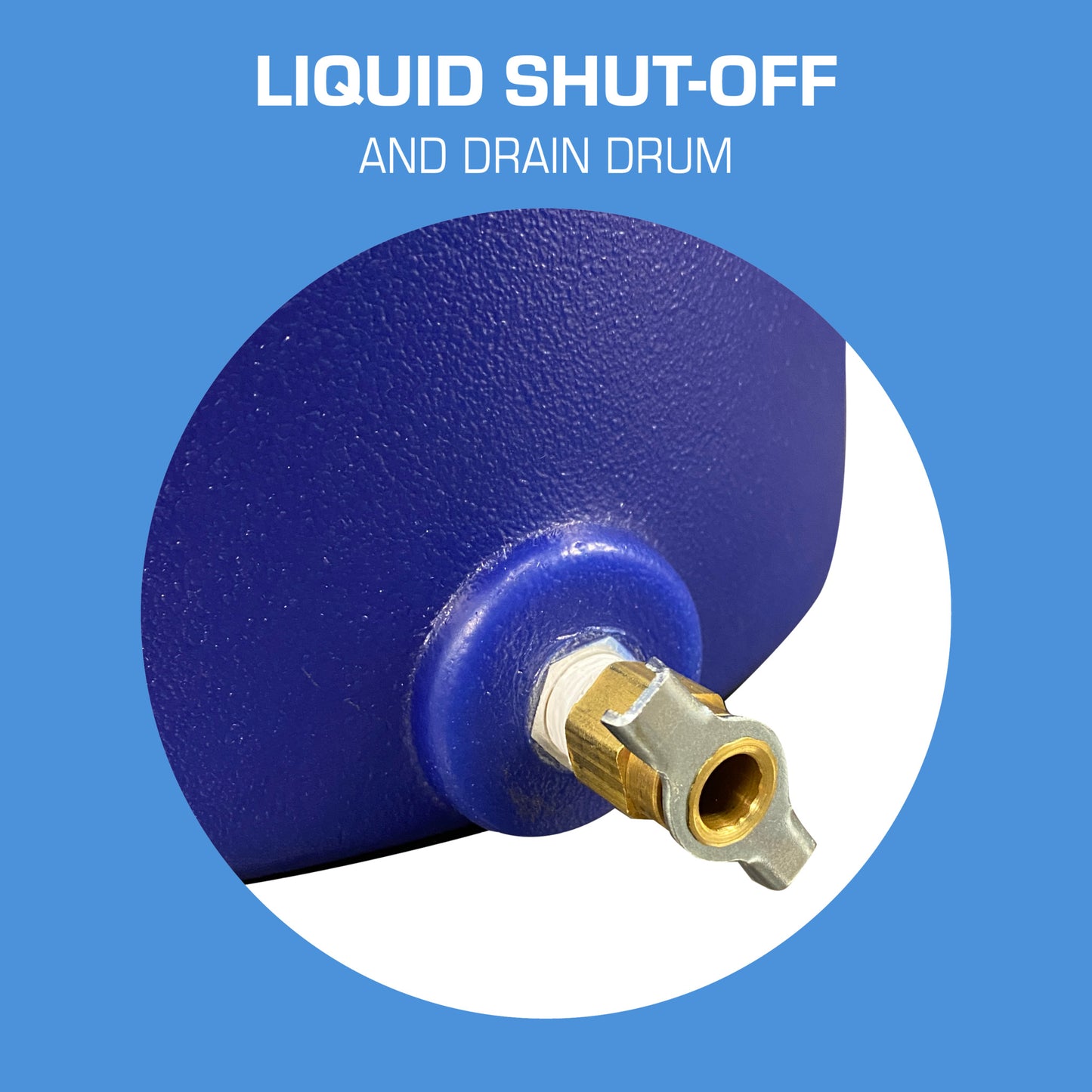

  • Liquid shut-off and drum drain

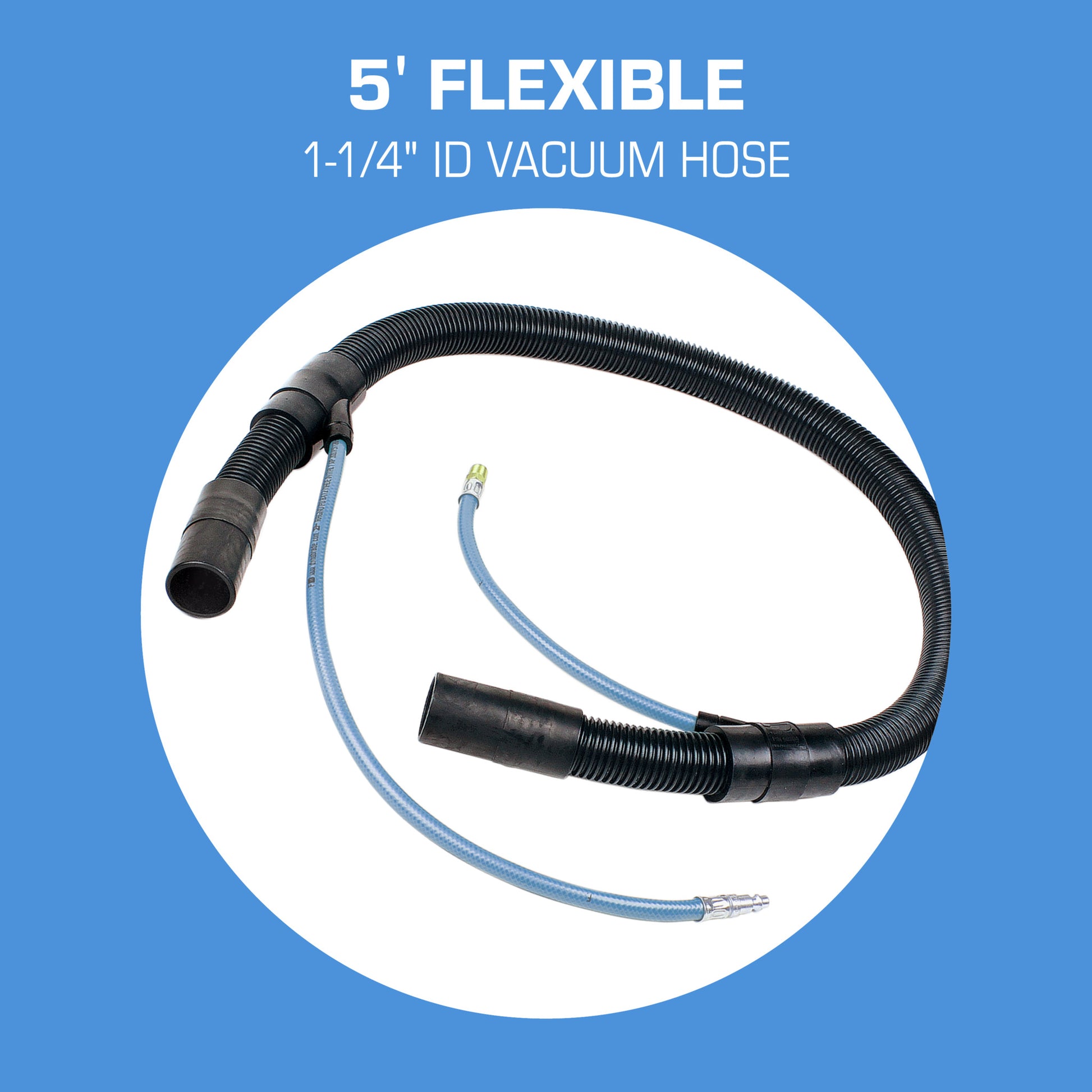

  • 1-1/4" ID x 5' flexible vacuum hose

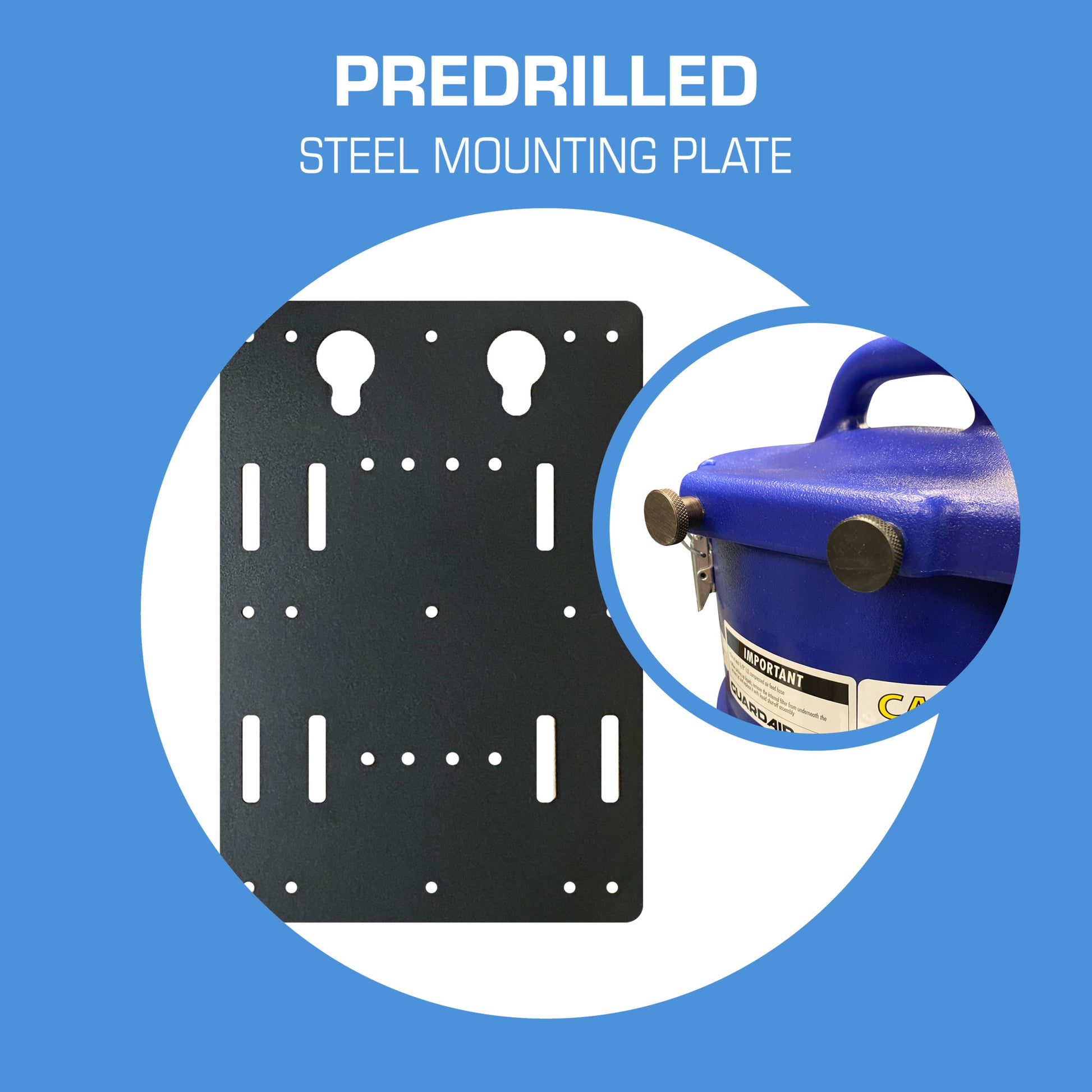

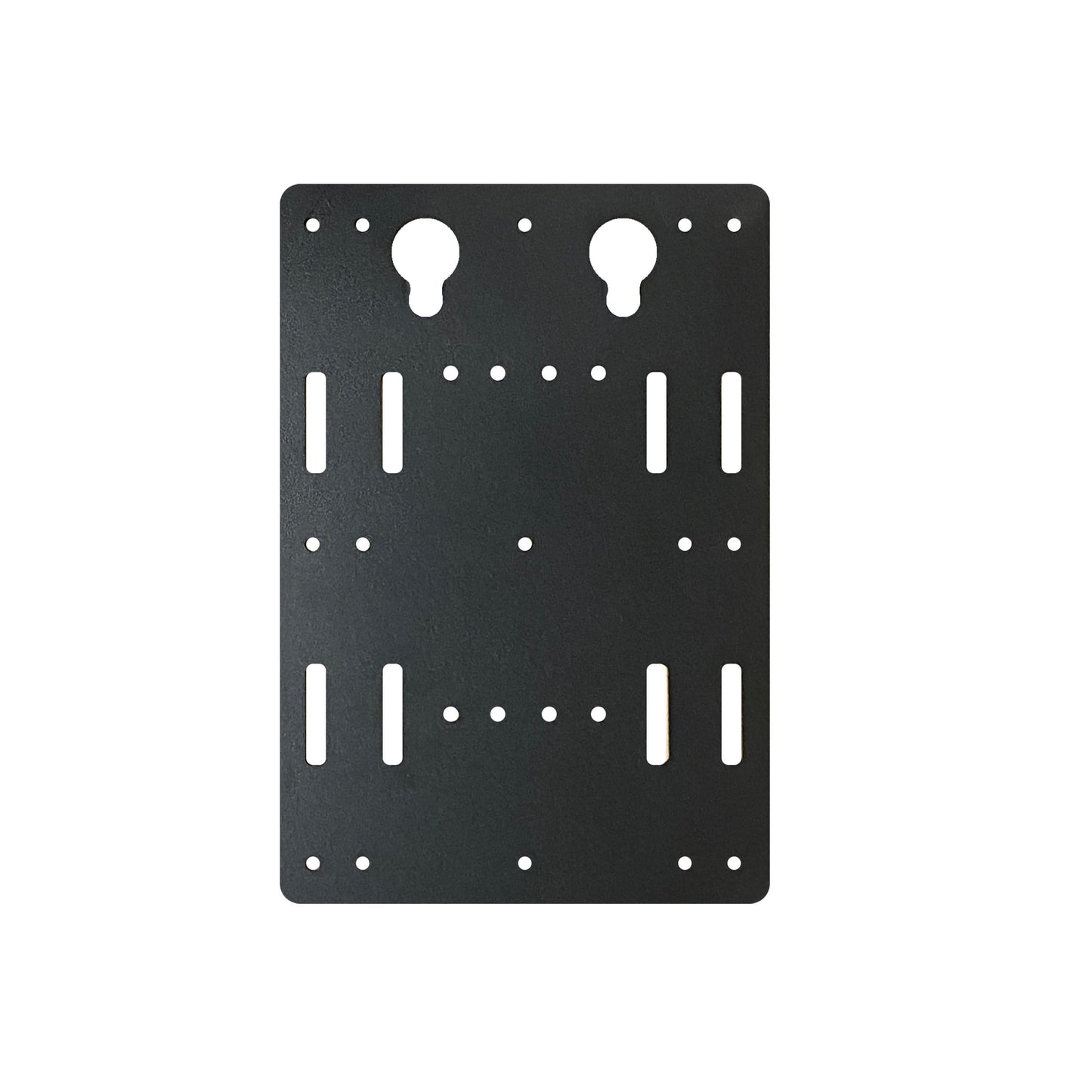

  • Predrilled, steel mounting plate

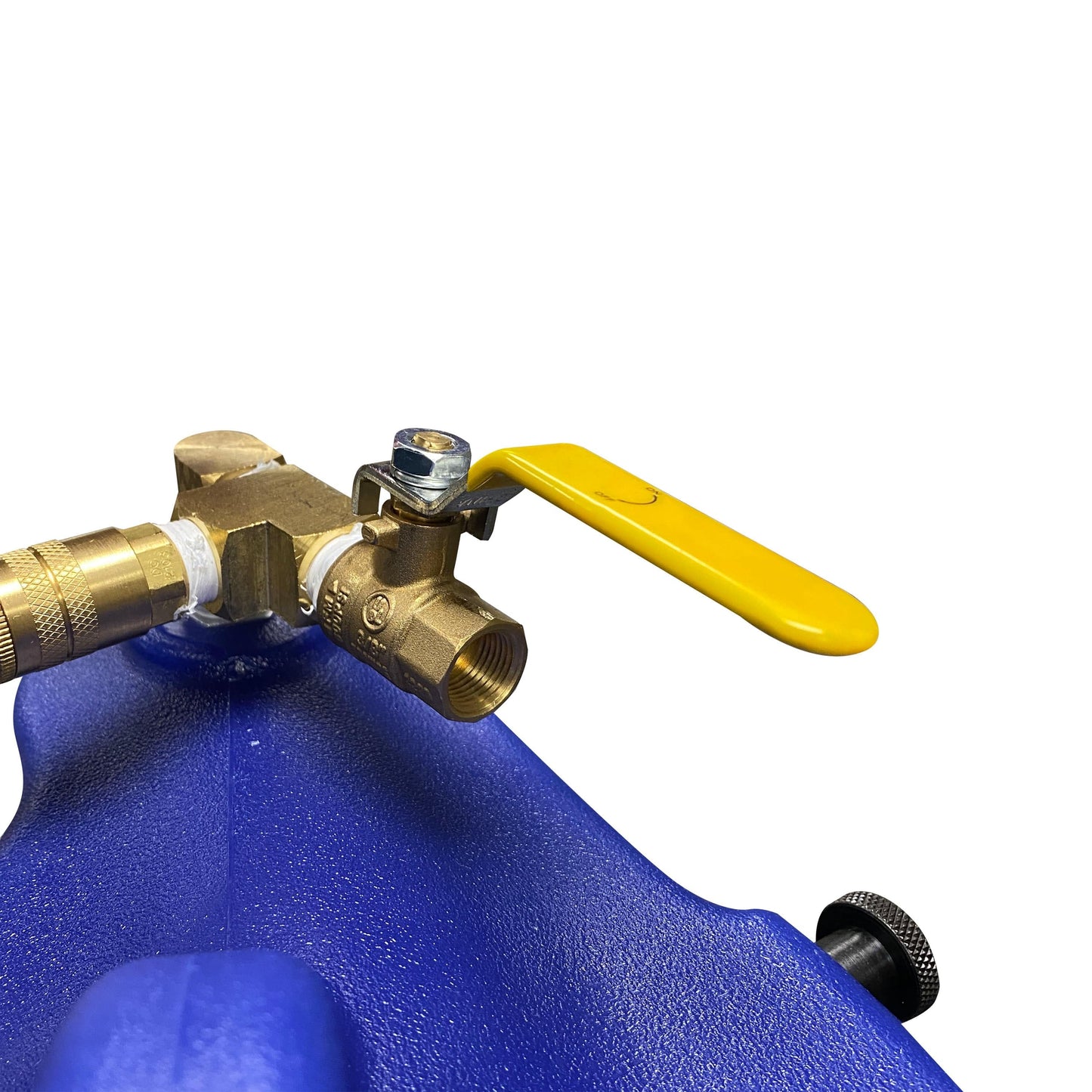

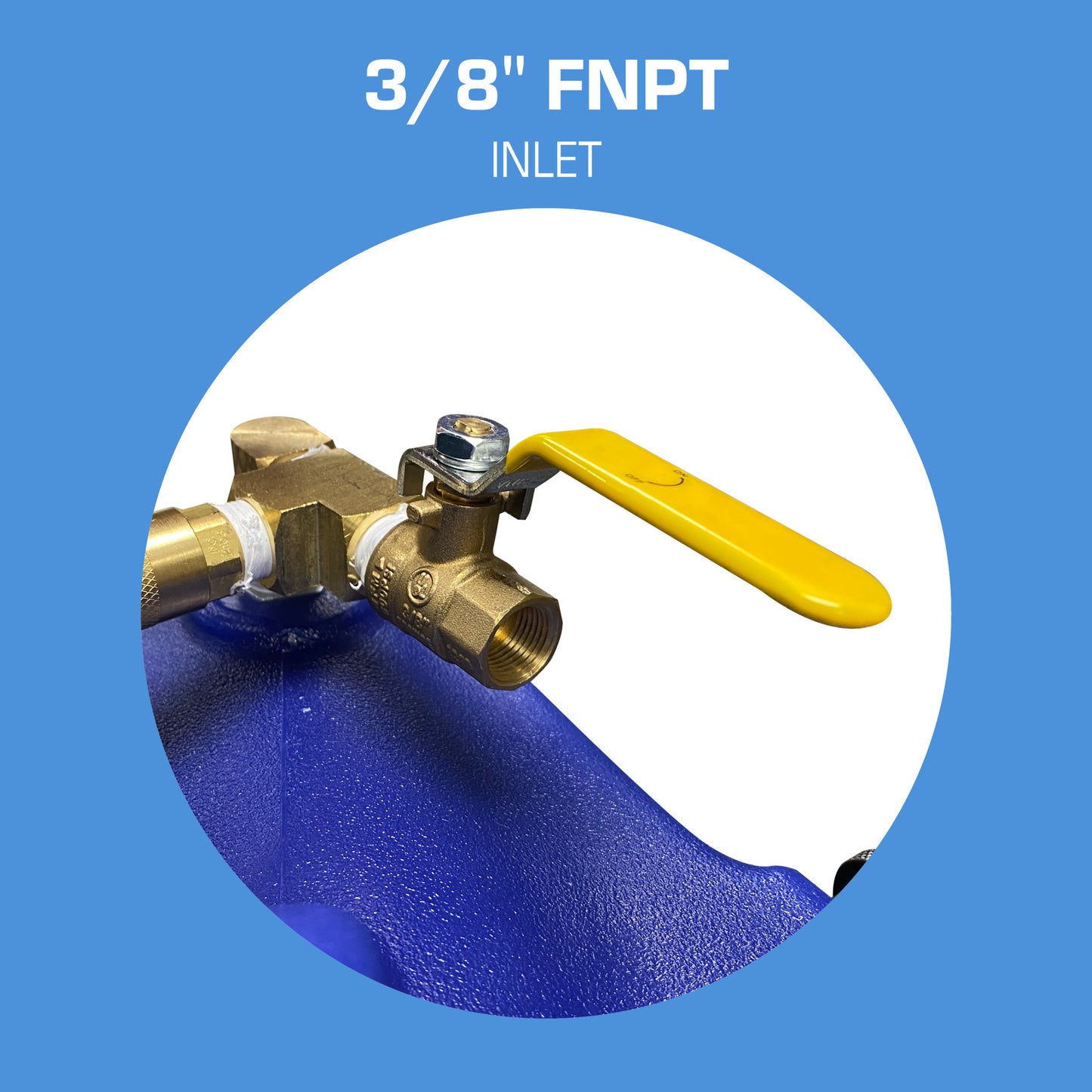

  • 3/8" FNPT inlet
  • (1) Personnel Cleaning Station
  • (1) Mounting Plate w/ Hardware
  • (1) 1-1/4" ID x 5' Vacuum Hose

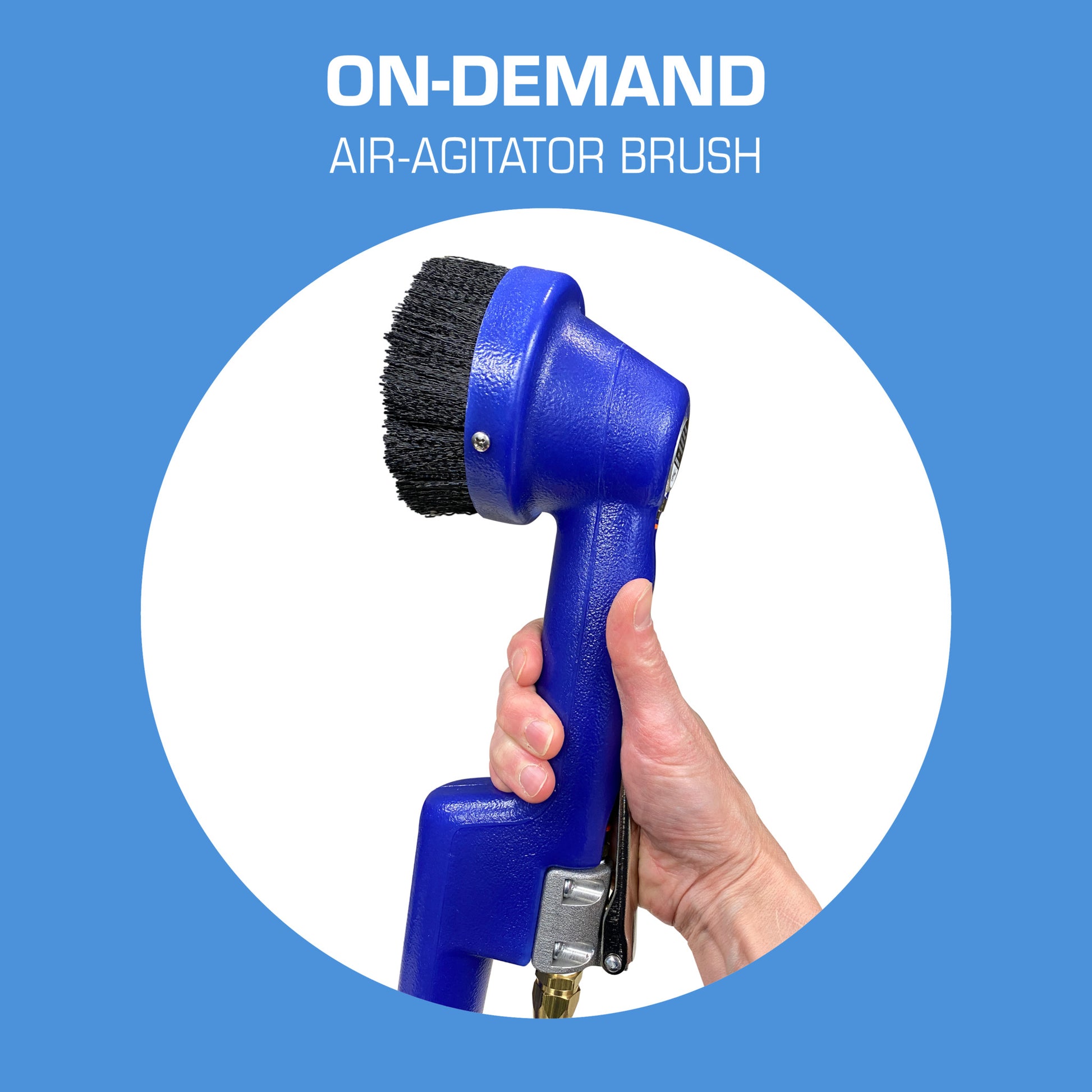

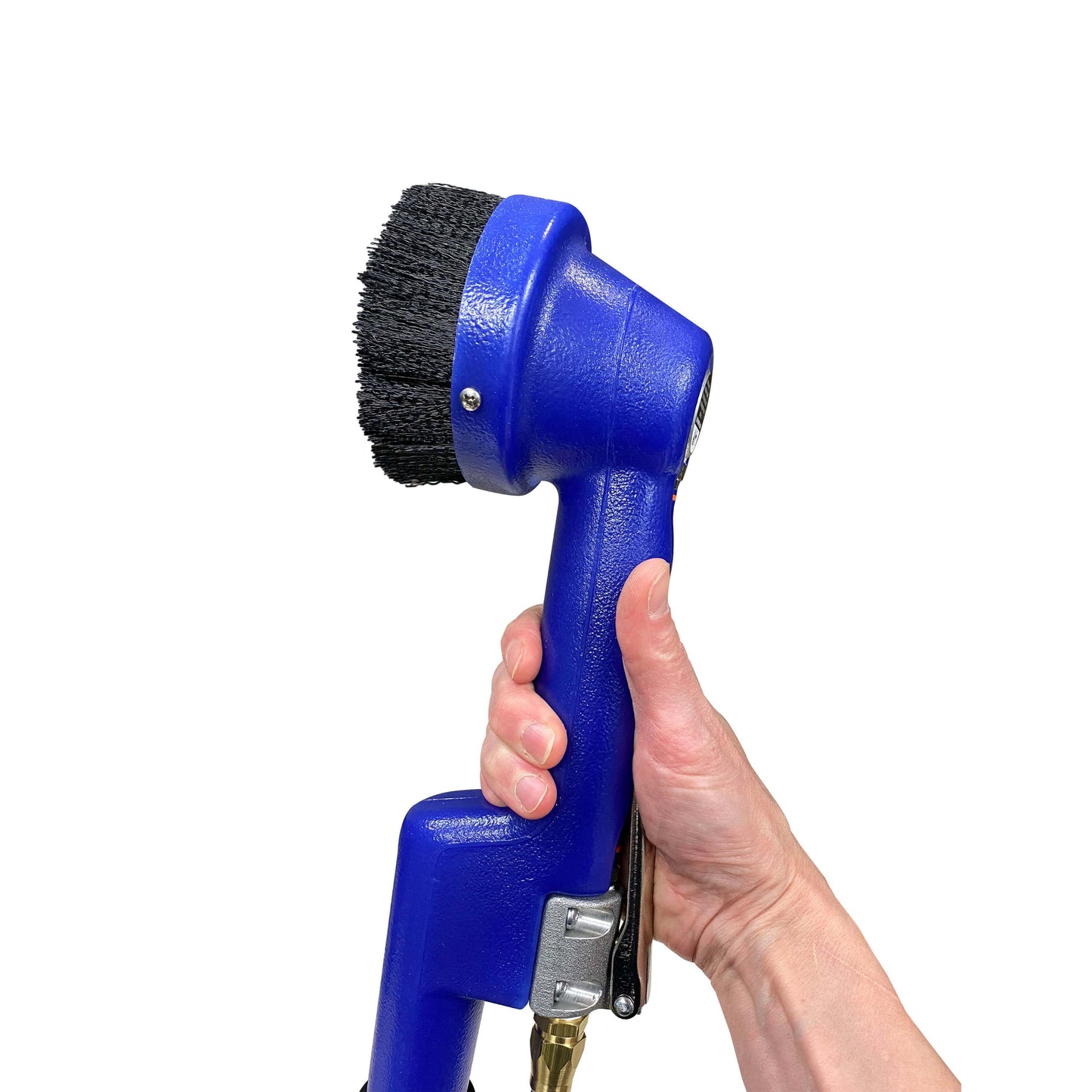

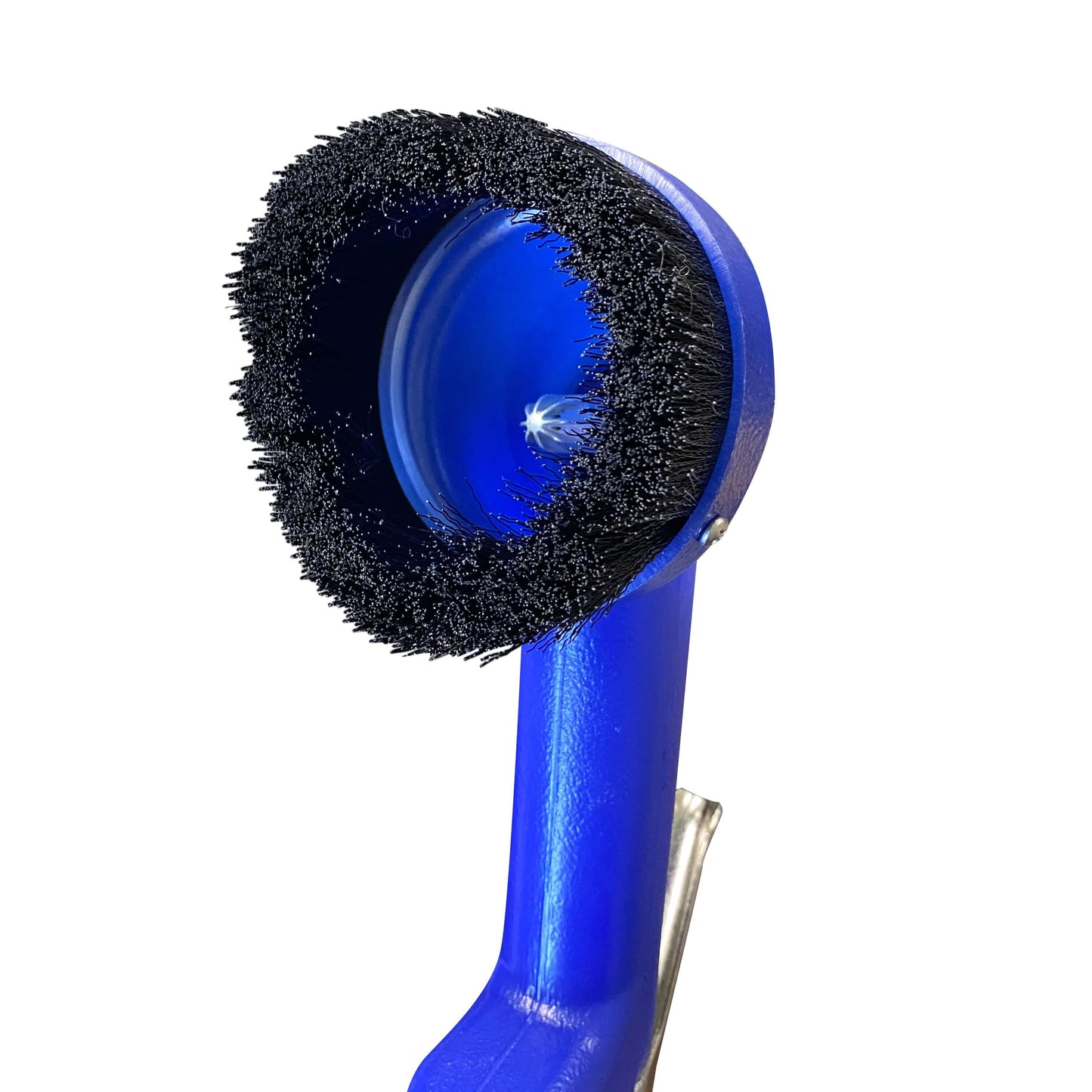

  • (1) Air-agitator Brush Attachment
    • 5.5 gallon chemical resistant polyethylene container
    • Cartridge filter (77% Efficient @ 0.8 Microns)
    • Liquid shut-off and drum drain
    • 1-1/4" ID x 5' flexible vacuum hose
    • Predrilled, steel mounting plate
    • 3/8" FNPT inlet
  • (1) Personnel Cleaning Station
  • (1) Mounting Plate w/ Hardware
  • (1) 1-1/4" ID x 5' Vacuum Hose
  • (1) Air-agitator Brush Attachment
    • Part Number Vacuum
    Hose ID
    (in)     		Compressed
    Air Inlet
    (in)     		Compressed
    Air Usage
    (cfm)     		Min. Size
    Air Compressor
    (hp)     		Vacuum Flow
    (cfm)     		Vacuum
    Lift
    (in H20)     		Noise
    Level
    (dBA)     		Dimensions
    (L" x W" x H")     		Weight
    (lbs)
    Part Number CS3000 Vacuum Hose ID 1.25 Inlet Connection 3/8 Flow (cfm) 33 Min. Compressor Required (hp) 4.7 Vacuum Flow (cfm) 73 Vacuum Lift (in H20) 77 Noise Level (dB) 88 Dimensions
    (L" x W" x H")     21.8 X 12.5 X 17     		Weight (lbs) 20.6
    Lead Time: 2 Days
