Air Hose Assemblies

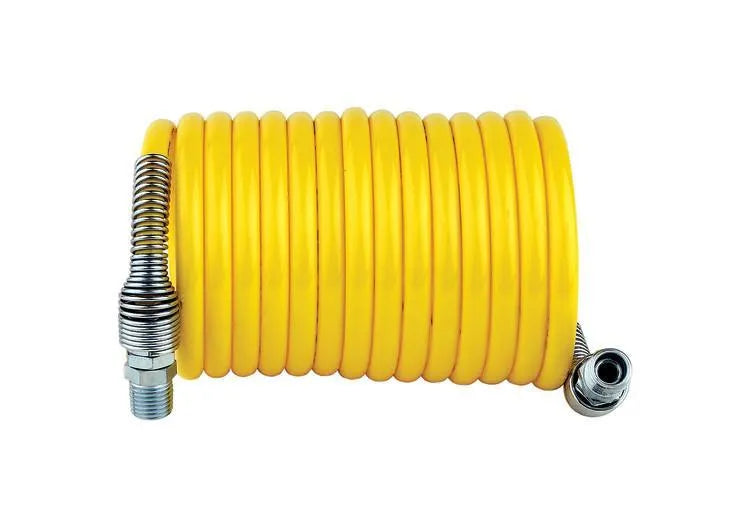

Nylon Coiled Air Hose Assembly

Lightweight, tough and abrasion resistant, nylon coiled air hose combines flexibility with excellent dimensional stability. Acting as a spring, the coiled hose expands in length as required by the operator, then retracts when released to the original coiled dimensions. Eliminates the need for bulky hose reels. Minimizes clutter and hose dragging.

Nylon Coiled Air Hose Assembly
  • Part Number
    Hose ID
    Hose Length
    Max Pressure
    Fittings
  • 14X12B03
    1/4"
    12' (14X12B03)
    250 psi
    1/4" MNPT x 1/4" MNPT
  • 14X25B03
    1/4"
    25' (14X25B03)
    250 psi
    1/4" MNPT x 1/4" MNPT
  • 14X50B03
    1/4"
    50' (14X50B03)
    250 psi
    1/4" MNPT x 1/4" MNPT
  • 38X12B03
    3/8"
    12' (38X12B03)
    200 psi
    3/8" MNPT x 3/8" MNPT
  • 38X25B03
    3/8"
    25' (38X25B03)
    200 psi
    3/8" MNPT x 3/8" MNPT
  • 38X50B03
    3/8"
    50' (38X50B03)
    200 psi
    3/8" MNPT x 3/8" MNPT
  • 12X25B03
    150 psi
    1/2" MNPT x 1/2" MNPT

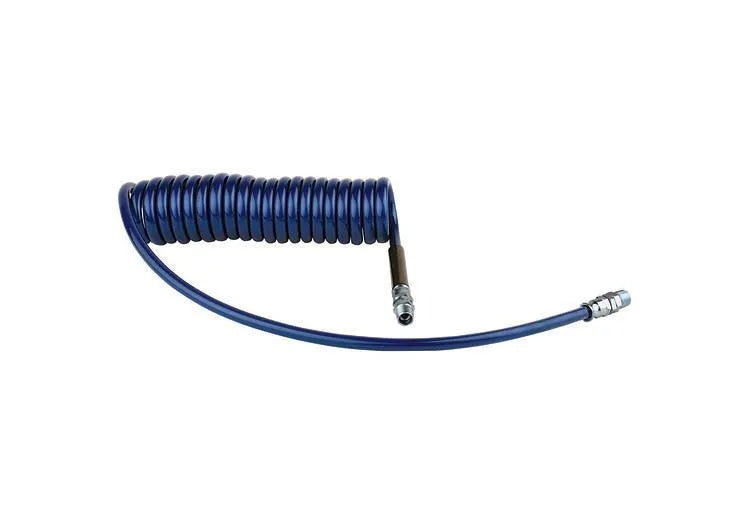

Polyurethane Air Hose Assembly

Finest polyurethane air hose available on the market. Super flexible, 100% kink proof, with low tension retractability. Withstands tough industrial environments while maintaining resiliency. Soft polyurethane will not scratch or mar work surfaces.

Polyurethane Air Hose Assembly
  • Part Number
    Hose ID
    Hose Length
    Max Pressure
    Fittings
  • 14X12B04
    1/4"
    12' (14X12B04)
    125 psi
    1/4" MNPT x 1/4" MNPT
  • 14X25B04
    1/4"
    25' (14X25B04)
    125 psi
    1/4" MNPT x 1/4" MNPT
  • 38X12B04
    3/8"
    12' (38X12B04)
    125 psi
    3/8" MNPT x 3/8" MNPT
  • 38X25B04
    3/8"
    25' (38X25B04)
    125 psi
    3/8" MNPT x 3/8" MNPT

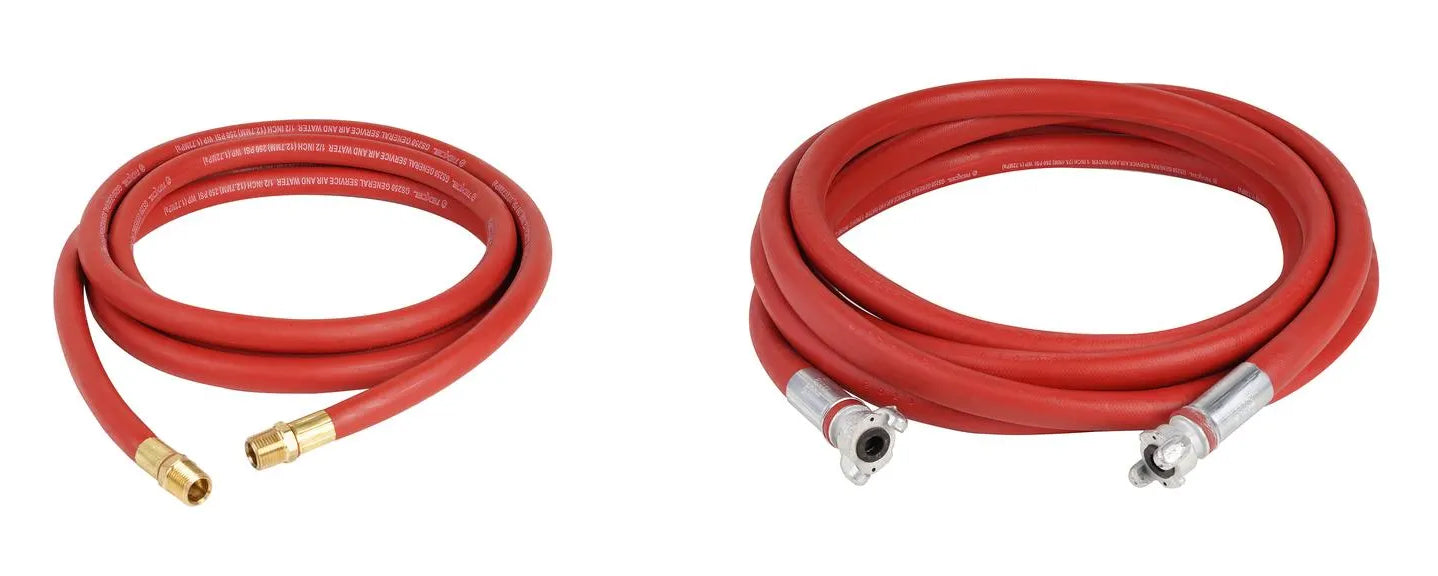

General Purpose Air Hose Assembly

Tough, abrasion- and ozone-resistant, heavy-duty rubber air hose supplies compressed air to Guardair safety air guns and vacuums. Manufactured by Texcel and tested to industry standards.

General Purpose Air Hose Assembly
  • Part Number
    Hose ID
    Hose Length
    Max Pressure
    Fittings
  • 38X12GP
    3/8"
    12' (38X12GP)
    250 psi
    3/8" MNPT x 3/8" MNPT
  • 38X25GP
    3/8"
    25' (38X25GP)
    250 psi
    3/8" MNPT x 3/8" MNPT
  • 38X50GP
    3/8"
    50' (38X50GP)
    250 psi
    3/8" MNPT x 3/8" MNPT
  • 12X12GP
    1/2"
    12' (12X12GP)
    250 psi
    1/2" MNPT x 1/2" MNPT
  • N607
    1/2"
    20' (N607)
    250 psi
    1/2" MNPT x 1/2" MNPT
  • 12X50GP
    1/2"
    50' (12X50GP)
    250 psi
    1/2" MNPT x 1/2" MNPT
  • N606
    3/4"
    20' (N606)
    250 psi
    Pre-installed Universal Couplings
  • 34X50GP
    3/4"
    50' (34X50GP)
    250 psi
    Pre-installed Universal Couplings
  • 10X25GP
    1"
    25' (10X25GP)
    250 psi
    Pre-installed Universal Couplings
  • HT113
    1"
    50' (HT113)
    250 psi
    Pre-installed Universal Couplings

Lightweight Air Hose Assembly

Superior alternative to standard-weight air hose. Ultra lightweight design reduces worker fatigue. Stores flat. High-visibility safety yellow.

Lightweight Air Hose Assembly
  • Part Number
    Hose ID
    Hose Length
    Max Pressure
    Fittings
  • HT57
    1"
    1" ID X 10' (HT57)
    290 psi
    Pre-installed Universal Couplings
  • HT111
    1"
    1" ID X 25' (HT111)
    290 psi
    Pre-installed Universal Couplings
  • HT112
    1"
    1" ID X 50' (HT112)
    290 psi
    Pre-installed Universal Couplings

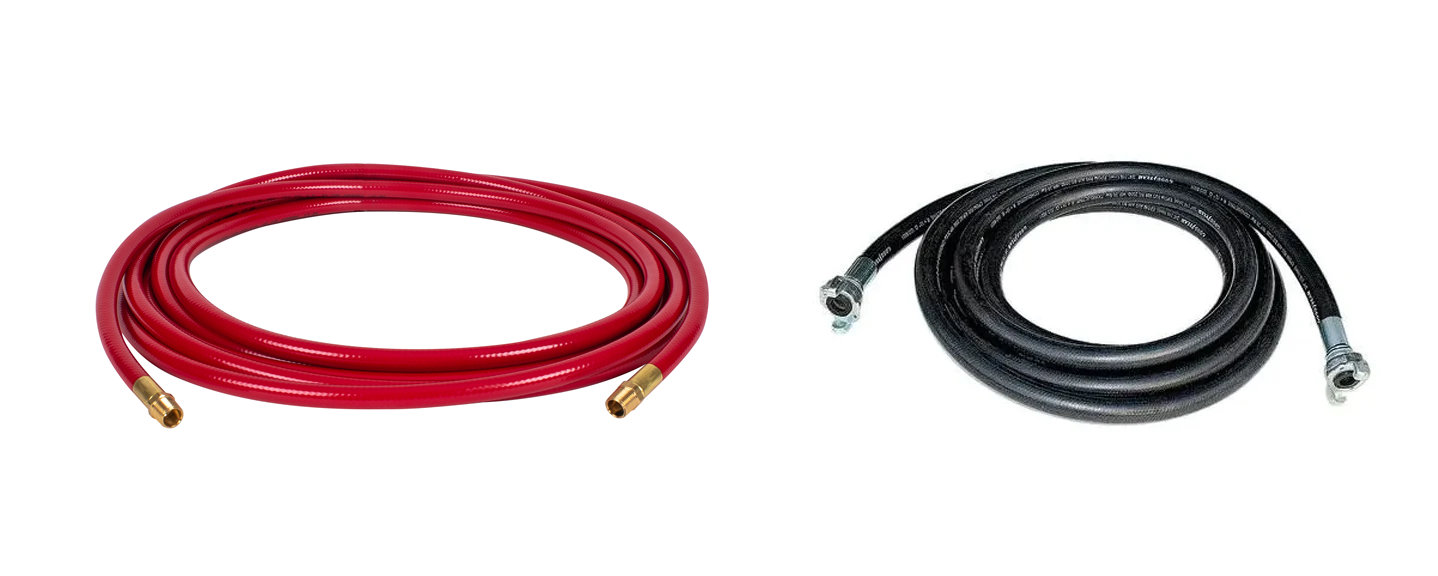

Static Conductive Air Hose Assembly

Ideal for supplying compressed air to Guardair NED and ATEX Vacuums in applications where static electricity is of concern. Reinforced rubber provides excellent ozone resistance and long-term durability. Manufactured and tested to industry standards.

Static Conductive Air Hose Assembly
  • Part Number
    Hose ID
    Hose Length
    Max Pressure
    Fittings
  • 2100A01NED
    3/8"
    20' (2100A01NED)
    300 psi
    3/8" Universal Coupler x 3/8" MNPT Swivel Fitting
  • N607NED
    1/2"
    20' (N607NED)
    300 psi
    3/8" Universal Coupler x 3/8" MNPT Swivel Fitting
  • 34X25SC
    3/4"
    25' (34X25SC)
    300 psi
    3/8" Universal Coupler x 3/8" MNPT Swivel Fitting
