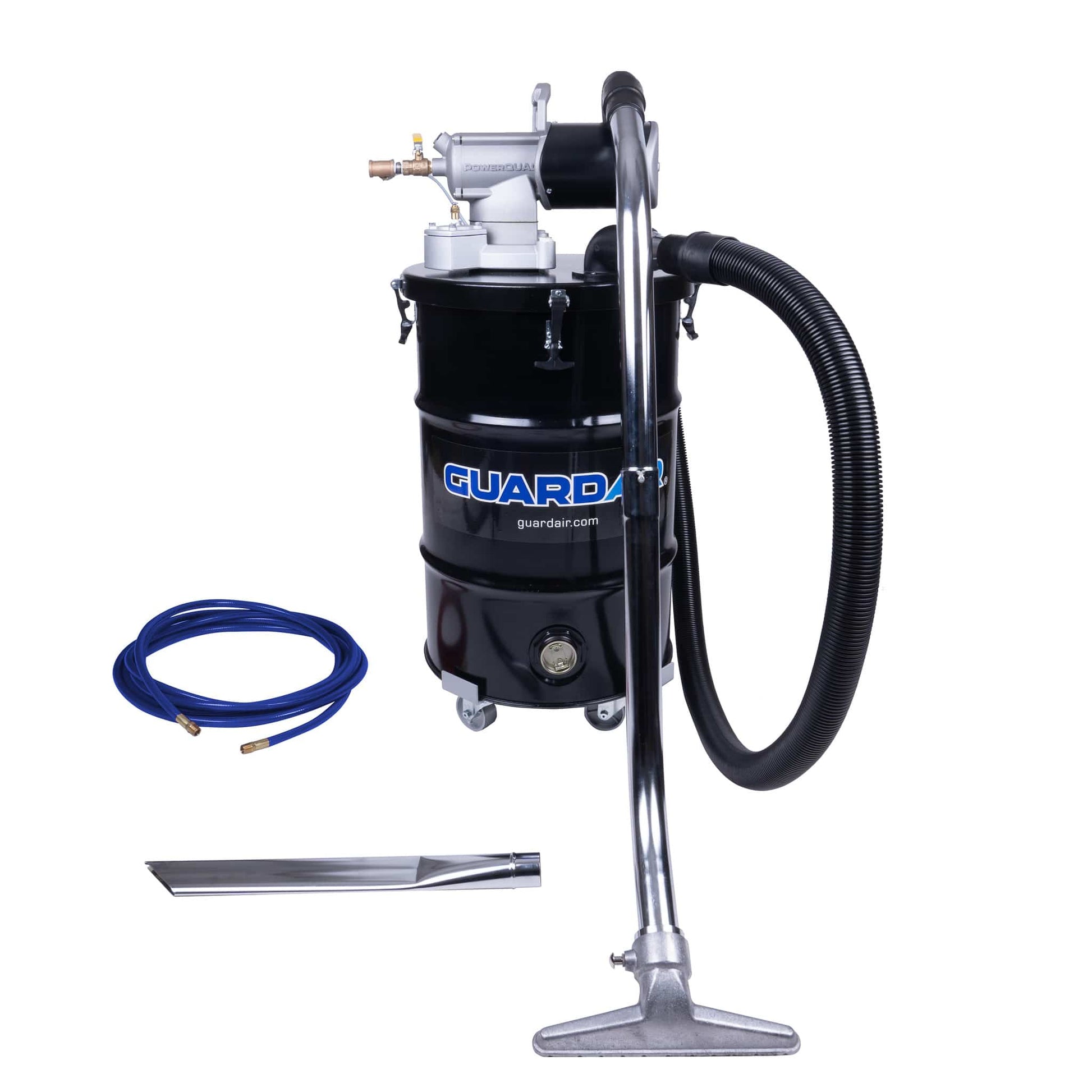

PowerQUAD™ 30 Gallon PulseAir™ Vacuum Kit w/ 2" Inlet

PowerQUAD™ 30 Gallon PulseAir™ Vacuum Kit w/ 2" Inlet

Part Number: PQ30C200NEDPA

  • PowerQUAD 30 Gallon PulseAir Vacuum Kit w/ 2" Inlet
  • PowerQUAD Button Activated Filter Cleaner
  • PowerQUAD Electrically Conductive Components
  • PowerQUAD Patent-Pending Vacuum Generating Engine
  • PowerQUAD User Configurable Injector Nozzles
  • PowerQUAD Wet / Dry Capable
  • PowerQUAD Why Choose PQ Icons
  • PowerQUAD Injector Nozzle Table
  • Meets or Exceeds OSHA Silica Dust Regulation 29 CFR 1926.1156
  • Forever Warranty
  • Assembled in the USA
  • PowerQUAD Air Pressure Gauge
  • PowerQUAD Ball Valve
  • PowerQUAD Vacuum Drain
  • PowerQUAD Cross Dolly
  • PowerQUAD ATEX Clamps/Latches
  • PowerQUAD 2" Inlet
1 17
$3,799.39
$3,799.39
Sale Sold out

Meet the PowerQUAD™ 30-Gallon PulseAir™ Vacuum Kit w/ 2” Inlet – the pinnacle of pneumatic vacuum technology. Engineered for exceptional performance, PowerQUAD™ PulseAir™ Vacuums are ideal for clean-up in high dust environments. Featuring button-activated technology, PowerQUAD™ PulseAir™ Vacuums incorporate on-demand filter cleaning without opening the unit. Designed to minimize operator exposure to harmful dust thereby meeting OSHA Silica Dust Regulation 29 CFR 1926.1153. Electrically bonded components, multiple grounding options, and static conductive attachments eliminate static electricity and nuisance shocks at the source. Powered by compressed air, with no rotating parts, no motors to spark or burnout, and no electric cords, PowerQUAD™ PulseAir™ Vacuums generate superior vacuum suction while delivering substantial operating cost savings. Kit includes static conductive vacuum hose, static conductive air supply hose, and push dolly.

Includes three color-coded, easy-to-change injector nozzle sets for tailored performance. View the PowerQUAD™ Vacuum Performance table here.

All units feature our exclusive GUARDAIR FOREVER WARRANTY.
NON-RETURNABLE ITEM.

View full details
  • (1) PowerQUAD™ 20-Gallon PulseAir™ Vacuum Generating Head w/ 2" Vacuum Inlet
  • (1) Air Supply Shut-Off Valve w/ 1/2" FNPT
  • (1) HEPA Cartridge Filter
  • (1) Washable Pre-Filter Bag
  • (1) Heavy-Duty, 18-Gauge, 30-Gallon Steel Drum
  • (1) 1/2" x 12' Static Conductive Air Supply Hose w/ 1/2" MNPT Swivel connectors
  • (1) 2" x 10' Static Conductive Vacuum Hose
  • (1) 4' Steel Wand w/ 12" Wide Aluminum Floor Tool
  • (1) 24" Metal Crevice Tool
    • Energy Efficient and Powerful: Consume up to 70% less compressed air while delivering unparalleled vacuum suction and substantial operating cost savings.
    • Advanced Noise Reduction: Ultra-quiet operation at 88 dBA or less -- 10–15 dB quieter than traditional vacuums.
    • Intrinsically Safe: No electric motors, or risk of electrical sparks, no electric cords – safe in both wet and dry locations.
    • Customizable Performance: Tailor performance with three color-coded, easy-to-change injector nozzle sets to customize the level of compressed air savings and vacuum suction.
    • Proprietary Design: Rugged, diecast aluminum, vacuum generating engine features unique 2-stage, multi-venturi design engineered to deliver superior performance.
    • Versatile: Equipped with a liquid shutoff assembly -- suitable for wet and dry applications.
    • Compatible: Backwards compatible with all existing Guardair pneumatic vacuum components including drums, covers, attachments and accessories.
  • (1) PowerQUAD™ 20-Gallon PulseAir™ Vacuum Generating Head w/ 2" Vacuum Inlet
  • (1) Air Supply Shut-Off Valve w/ 1/2" FNPT
  • (1) HEPA Cartridge Filter
  • (1) Washable Pre-Filter Bag
  • (1) Heavy-Duty, 18-Gauge, 30-Gallon Steel Drum
  • (1) 1/2" x 12' Static Conductive Air Supply Hose w/ 1/2" MNPT Swivel connectors
  • (1) 2" x 10' Static Conductive Vacuum Hose
  • (1) 4' Steel Wand w/ 12" Wide Aluminum Floor Tool
  • (1) 24" Metal Crevice Tool
    • Part Number Vacuum
    Hose ID
    (in)     		Compressed
    Air Inlet
    (in)     		Compressed
    Air Usage
    (cfm)     		Min. Size
    Air Compressor
    (hp)     		Vacuum Flow
    (cfm)     		Vacuum
    Lift
    (in H20)     		Noise
    Level
    (dBA)     		Min.
    Steel Drum
    (Gauge)     		Dimensions
    (L" x W" x H")     		Weight
    (lbs)
    Part Number PQ30C200NEDPA Vacuum Hose ID 2 Inlet Connection 1/2 Flow (cfm) 20 - 60 Min. Compressor Required (hp) 4.4 - 13.3 Vacuum Flow (cfm) 110 - 149 Vacuum Lift (in H20) 122 - 250 Noise Level (dB) 85 - 88 Steel Drum Gauge 19 Dimensions
    (L" x W" x H")     24 X 24 X 45.25     		Weight (lbs) 86
    Lead Time: 2 Days
