PowerQUAD^™ 30 Gallon PulseAir^™ Vacuum Kit w/ 1.5" Inlet

Name: PowerQUAD™ 30 Gallon PulseAir™ Vacuum Kit w/ 1.5" Inlet
Brand: Guardair
SKU: PQ30C150NEDPA
Price: 3813.91 USD
Availability: InStock

1 22

Part Number: PQ30C150NEDPA

PulseAir Dust Cleanup: 30-gallon pneumatic vacuum with 1.5" inlet for high-dust industrial environments
On-Demand Filter Cleaning: Button-activated air pulse cleans the HEPA filter without opening the unit
Silica Dust Control: Designed to meet OSHA 29 CFR 1926.1153 while minimizing operator exposure

See more details

$3,813.91

Product variants

Quantity

View full details

Overview

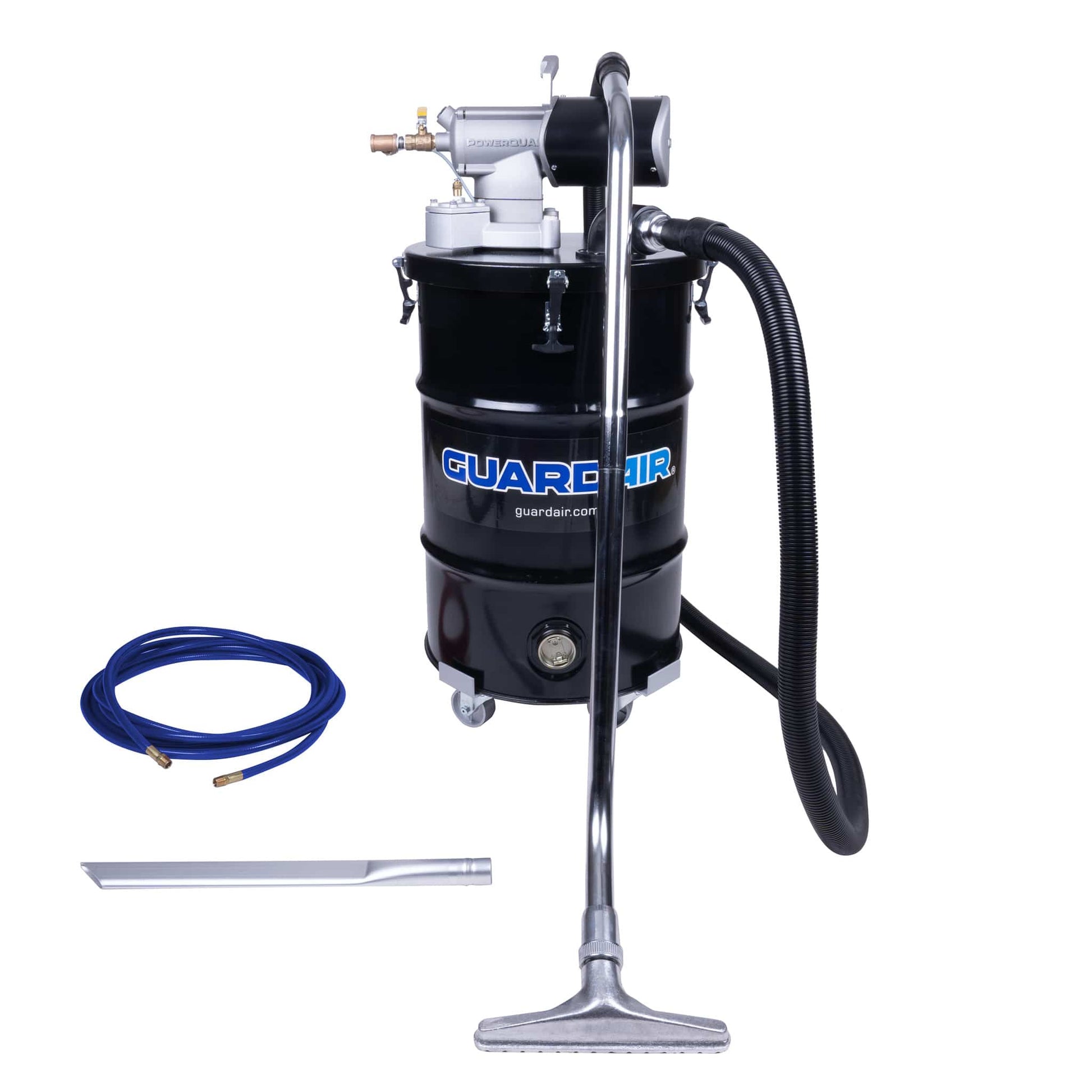

The Guardair PowerQUAD 30-Gallon PulseAir Vacuum Kit (PQ30C150NEDPA) is a compressed-air-powered industrial vacuum with a 1.5" inlet for fine dust and other high-dust cleanup. Button-activated PulseAir technology cleans the HEPA filter on demand without routinely opening the drum, helping reduce operator contact with dusty filters and downtime from clogging. Static-conductive components and hoses help control nuisance shocks, while three injector nozzle sets let crews balance compressed-air consumption and suction. Its motor-free, 2-stage multi-venturi engine supports continuous-duty performance with no electrical power cord. Proudly assembled in the USA.

View the PowerQUAD Vacuum Performance table.

Resources

Features

PulseAir Dust Cleanup: 30-gallon pneumatic vacuum with 1.5" inlet for high-dust industrial environments
On-Demand Filter Cleaning: Button-activated air pulse cleans the HEPA filter without opening the unit
Silica Dust Control: Designed to meet OSHA 29 CFR 1926.1153 while minimizing operator exposure
Static-Conductive System: Bonded components and conductive hoses help control nuisance static shocks
Configurable Performance: Three injector nozzle sets provide flexible vacuum performance while helping conserve compressed air
Quiet Operation: Runs at 85 dBA or less to reduce industrial cleanup noise

Includes

(1) PowerQUAD 30-Gallon PulseAir Vacuum Generating Head w 1.5" Vacuum Inlet
(1) HEPA Cartridge Filter
(1) Washable Pre-Filter Bag
(1) 20/30/55 Gal Wire Cage Coalescing Filter
(1) Air Supply Shut-Off Valve w/ 1/2" FNPT
(1) 1/2" x 12' Static Conductive Air Supply Hose w/ 1/2" MNPT Swivel connectors
(1) 1-1/2" x 10' Static Conductive Vacuum Hose
(1) Heavy-Duty, 18-Gauge, 30-Gallon Steel Drum with a Standard 2" Bung Opening
(1) 4' Steel Wand w/ 12" Wide Aluminum Floor Tool
(1) 24" Metal Crevice Tool

Typical Applications

Industrial vacuum for vacuuming up fine dusts
For use with silica dusts
For use with fine dusts such as powder coating, flours, etc that routinely clog filters
Pharmaceutical, cosmetics, food processing
Continuous duty applications

Shipping & Returns

Lead time: 15 Days. Not eligible for free shipping.

Non-returnable.

Read the full Shipping & Return policy here.

⚠️ WARNING: Cancer and Reproductive Harm - P65warnings.ca.gov

Warranty

All PowerQUAD™ vacuums feature our exclusive GUARDAIR FOREVER WARRANTY.

How do PowerQUAD compressed air-powered vacuums work?

PowerQUAD vacuums use compressed air to create low pressure, generating vacuum flow through a venturi effect for efficient suction without needing an electric motor.

What are the advantages of compressed air-powered vacuums over electric vacuums?

Compressed air-powered vacuums avoid motor burnout, eliminate electrical hazards, reduce Total Cost of Ownership, and offer higher suction power, especially for heavy materials.

What is the difference between Vacuum Flow and Vacuum Lift?

Vacuum Flow measures air volume through the hose, impacting debris movement, while Vacuum Lift measures the height a vacuum can lift materials, key for deep cleaning.

How do vacuums generate static electricity?

Static electricity is created as air moves over the vacuum hose’s internal surface, influenced by air composition, humidity, and material type.

What size air compressor do I need to operate a PowerQUAD vacuum effectively?

For optimal performance, PowerQUAD vacuums typically require an air compressor capable of delivering 4 cubic feet per minute (cfm) per horsepower (HP). For example, a 50 HP compressor will provide about 200 cfm, ideal for continuous operation. Check the PowerQUAD specifications to match your setup accurately.

Can I use any steel drum with my PowerQUAD vacuum generating head?

No. PowerQUAD vacuum generating heads produce extremely high head. Generating vacuum lift of up to 255 inches of H2O running on 80-90 psi of compressed air, they have been known to implode. See the "Specifications" tab for the minimum required steel drum gauge.

Does Guardair offer HEPA and ULPA filters for PowerQUAD vacuums?

Yes, Guardair provides HEPA and ULPA filters for PowerQUAD vacuums, alongside standard filters, to support a variety of cleaning needs.

Part Number	Drum Capacity (gal)	Vacuum Hose ID (in)	Compressed Air Inlet (in)	Compressed Air Usage (cfm)	Vacuum Flow (cfm)	Vacuum Lift (in H₂0)	Noise Level (dBA)	Min. Size Air Compressor (hp)	Min. Steel Drum (Gauge)	Dimensions (L" x W" x H")	Weight (lbs)
PQ20C150NEDPA	20	1.5	1/2	20 - 40 - 60	92 - 118 - 130	126 - 225 - 250	82 - 85	4.4 - 13.3	18	24 X 37.8 X 48.5	82
PQ20C200NEDPA	20	2	1/2	20 - 40 - 60	110 - 140 - 150	122 - 215 - 250	82 - 85	4.4 - 13.3	18	24 X 37.8 X 48.5	82
PQ30C150NEDPA	30	1.5	1/2	20 - 40 - 60	92 - 118 - 130	126 - 225 - 250	85 - 88	4.4 - 13.3	18	24 X 24 X 48.5	86
PQ30C200NEDPA	30	2	1/2	20 - 40 - 60	110 - 140 - 150	122 - 215 - 250	85 - 88	4.4 - 13.3	18	24 X 24 X 45.3	86
PQ55C150NEDPA	55	1.5	1/2	20 - 40 - 60	92 - 118 - 130	126 - 225 - 250	85 - 88	4.4 - 13.3	19	28 X 28 X 50.5	101
PQ55C200NEDPA	55	2	1/2	20 - 40 - 60	110 - 140 - 150	122 - 215 - 250	85 - 88	4.4 - 13.3	19	28 X 28 X 50.5	101
