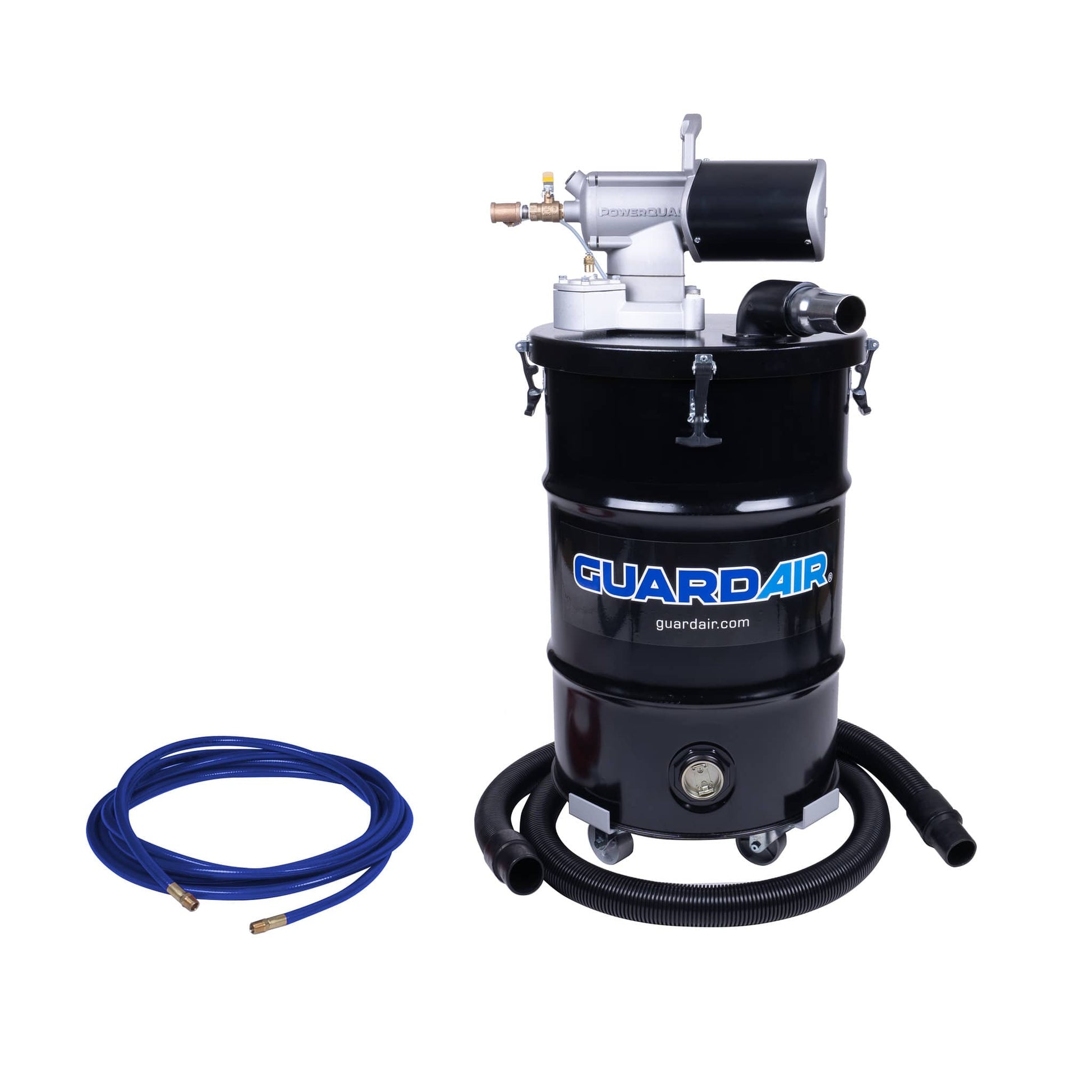

PowerQUAD^™ 30 Gallon PulseAir^™ Dust Extractor Kit w/ 2" Inlet

Name: PowerQUAD™ 30 Gallon PulseAir™ Dust Extractor Kit w/ 2" Inlet
Brand: Guardair
SKU: PQ30C200NEDPAD
Price: 3421.98 USD
Availability: InStock

1 24

Part Number: PQ30C200NEDPAD

PulseAir Dust Extractor: 30-gallon pneumatic source-capture kit with 2" inlet for fine and silica dust
On-Demand Filter Cleaning: Button-activated air pulse cleans the HEPA filter without opening the unit
Silica Dust Control: Designed to meet OSHA 29 CFR 1926.1153 while minimizing operator exposure

See more details

$3,421.98

Product variants

Quantity

View full details

Overview

The Guardair PowerQUAD 30-Gallon PulseAir Dust Extractor Kit (PQ30C200NEDPAD) is a compressed-air-powered source-capture vacuum with a 2" inlet for fine dust, including silica dust from sanders and cutters. Button-activated PulseAir technology cleans the HEPA filter without opening the unit, helping maintain pickup while limiting contact with captured dust. The system is designed to meet OSHA silica dust regulation 29 CFR 1926.1153. Static-conductive hoses and bonded components help control nuisance static; proper grounding is required. With no electric motor, rotating parts, or power cord, the rugged multi-venturi engine supports demanding industrial cleanup. Proudly assembled in the USA.

View the PowerQUAD Vacuum Performance table.

Resources

Features

PulseAir Dust Extractor: 30-gallon pneumatic source-capture kit with 2" inlet for fine and silica dust
On-Demand Filter Cleaning: Button-activated air pulse cleans the HEPA filter without opening the unit
Silica Dust Control: Designed to meet OSHA 29 CFR 1926.1153 while minimizing operator exposure
Static Control: Conductive hoses and bonded parts suppress nuisance static; proper grounding is required
Configurable Performance: Three injector nozzle sets provide flexible vacuum performance while helping conserve compressed air
Quiet Operation: Runs at 85 dBA or less to reduce industrial cleanup noise

Includes

(1) PowerQUAD 30-Gallon PulseAir Vacuum Generating Head w 2" Vacuum Inlet
(1) HEPA Cartridge Filter
(1) Washable Pre-Filter Bag
(1) 20/30/55 Gal Wire Cage Coalescing Filter
(1) Air Supply Shut-Off Valve w/ 1/2" FNPT
(1) 1/2" x 12' Static Conductive Air Supply Hose w/ 1/2" MNPT Swivel connectors
(1) 2" x 10' Static Conductive Vacuum Hose
(1) Heavy-Duty, 18-Gauge, 30-Gallon Steel Drum with a Standard 2" Bung Opening
(1) Drum Dolly w/ (4) 3" Diameter Steel Swivel Casters

Typical Applications

Industrial vacuum for vacuuming up fine dusts
For use with silica dusts
For use with fine dusts such as powder coating, flours, etc that routinely clog filters
For use with dust generating power tools, such as sanders or cutters
Pharmaceutical, cosmetics, food processing

Shipping & Returns

Lead time: 15 Days. Not eligible for free shipping.

Non-returnable.

Read the full Shipping & Return policy here.

⚠️ WARNING: Cancer and Reproductive Harm - P65warnings.ca.gov

Warranty

All PowerQUAD™ vacuums feature our exclusive GUARDAIR FOREVER WARRANTY.

How do PowerQUAD compressed air-powered vacuums work?

PowerQUAD vacuums use compressed air to create low pressure, generating vacuum flow through a venturi effect for efficient suction without needing an electric motor.

What are the advantages of compressed air-powered vacuums over electric vacuums?

Compressed air-powered vacuums avoid motor burnout, eliminate electrical hazards, reduce Total Cost of Ownership, and offer higher suction power, especially for heavy materials.

What is the difference between Vacuum Flow and Vacuum Lift?

Vacuum Flow measures air volume through the hose, impacting debris movement, while Vacuum Lift measures the height a vacuum can lift materials, key for deep cleaning.

How do vacuums generate static electricity?

Static electricity is created as air moves over the vacuum hose’s internal surface, influenced by air composition, humidity, and material type.

What size air compressor do I need to operate a PowerQUAD vacuum effectively?

For optimal performance, PowerQUAD vacuums typically require an air compressor capable of delivering 4 cubic feet per minute (cfm) per horsepower (HP). For example, a 50 HP compressor will provide about 200 cfm, ideal for continuous operation. Check the PowerQUAD specifications to match your setup accurately.

Can I use any steel drum with my PowerQUAD vacuum generating head?

No. PowerQUAD vacuum generating heads produce extremely high head. Generating vacuum lift of up to 255 inches of H2O running on 80-90 psi of compressed air, they have been known to implode. See the "Specifications" tab for the minimum required steel drum gauge.

Does Guardair offer HEPA and ULPA filters for PowerQUAD vacuums?

Yes, Guardair provides HEPA and ULPA filters for PowerQUAD vacuums, alongside standard filters, to support a variety of cleaning needs.

Part Number	Drum Capacity (gal)	Vacuum Hose ID (in)	Compressed Air Inlet (in)	Compressed Air Usage (cfm)	Vacuum Flow (cfm)	Vacuum Lift (in H₂0)	Noise Level (dBA)	Min. Size Air Compressor (hp)	Min. Steel Drum (Gauge)	Dimensions (L" x W" x H")	Weight (lbs)
PQ20C150NEDPAD	20	1.5	1/2	20 - 40 - 60	92 - 118 - 130	126 - 225 - 250	82 - 85	4.4 - 13.3	18	24 X 37.8 X 48.5	82
PQ20C200NEDPAD	20	2	1/2	20 - 40 - 60	110 - 140 - 150	122 - 215 - 250	82 - 85	4.4 - 13.3	18	24 X 37.8 X 48.5	82
PQ30C150NEDPAD	30	1.5	1/2	20 - 40 - 60	92 - 118 - 130	126 - 225 - 250	85 - 88	4.4 - 13.3	18	24 X 24 X 48.5	86
PQ30C200NEDPAD	30	2	1/2	20 - 40 - 60	110 - 140 - 150	122 - 215 - 250	85 - 88	4.4 - 13.3	18	24 X 24 X 45.3	86
