- Energy Efficient and Powerful: Consume up to 70% less compressed air while delivering unparalleled vacuum suction and substantial operating cost savings.
- Advanced Noise Reduction: Ultra-quiet operation at 88 dBA or less -- 10–15 dB quieter than traditional vacuums.
- Intrinsically Safe: No electric motors, or risk of electrical sparks, no electric cords -- safe in both wet and dry locations.
- Customizable Performance: Tailor performance with three color-coded, easy-to-change injector nozzle sets to customize the level of compressed air savings and vacuum suction.
- Proprietary Design: Rugged, diecast aluminum, vacuum generating engine features unique 2-stage, multi-venturi design engineered to deliver superior performance.
- Versatile: Equipped with a liquid shutoff assembly -- suitable for wet and dry wet applications.
- Compatible: Backwards compatible with all existing Guardair pneumatic components including drums, covers, attachments and accessories.
Part Number |
Vacuum Hose ID (in) |
Compressed Air Inlet (in) |
Compressed Air Usage (cfm) |
Min. Size Air Compressor (hp) |
Vacuum Flow (cfm) |
Vacuum Lift (in H20) |
Noise Level (dBA) |
Min. Steel Drum (Gauge) |
Dimensions (L" x W" x H") |
Weight (lbs) |
---|---|---|---|---|---|---|---|---|---|---|

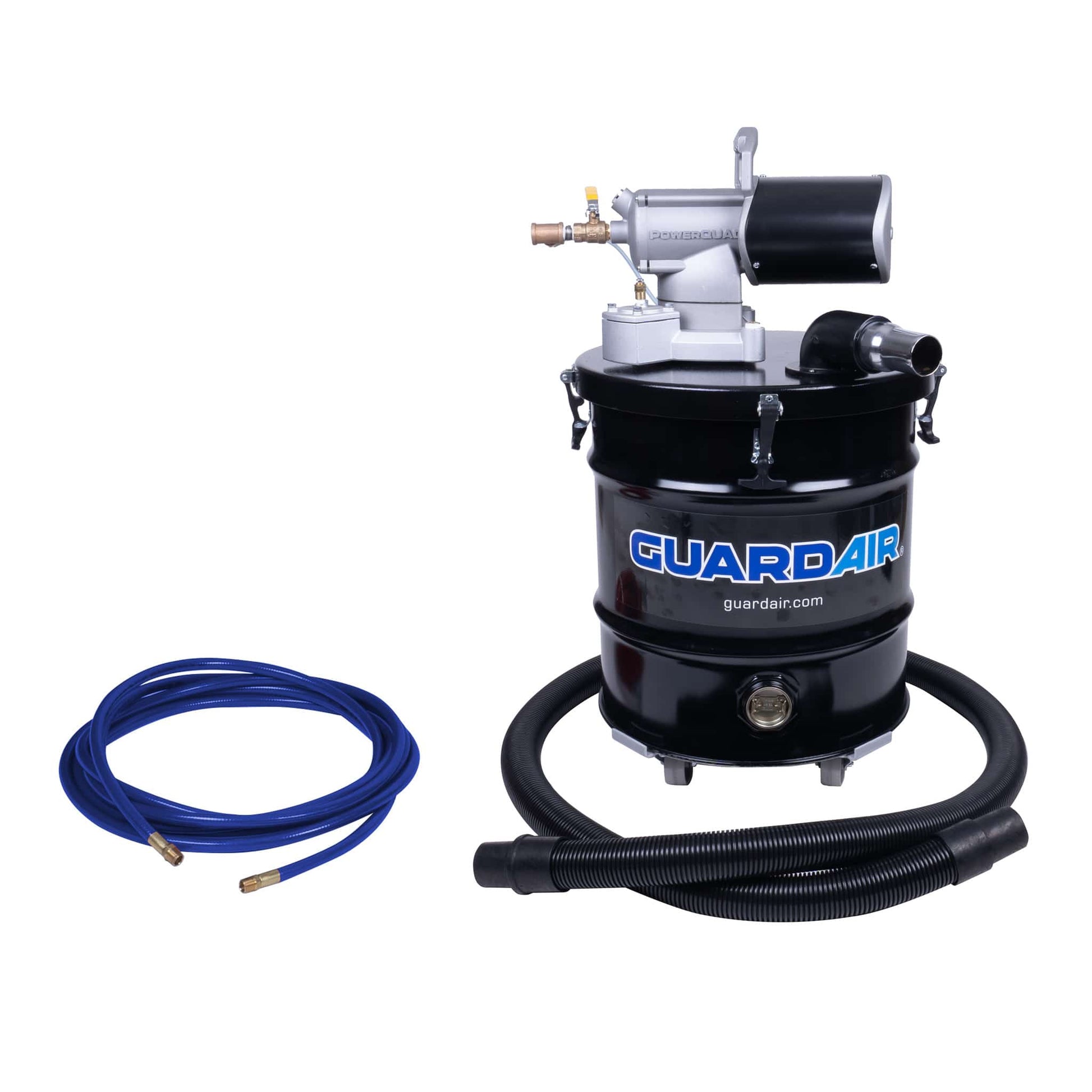

Part Number PQ20C200NEDPAD | Vacuum Hose ID 1.5 | Inlet Connection 1/2 | Flow (cfm) 20 - 60 | Min. Compressor Required (hp) 4.4 - 13.3 | Vacuum Flow (cfm) 92 - 129 | Vacuum Lift (in H20) 126 - 251 | Noise Level (dB) 82 - 85 | Steel Drum Gauge 18 |
Dimensions (L" x W" x H") 24 X 37.75 X 48.5 |
Weight (lbs) 82 |
Lead Time: 12 Days
