PowerQUAD^™ 5 Gallon Vacuum Generating Head Kit w/ 1.25" Inlet

Name: PowerQUAD™ 5 Gallon Vacuum Generating Head Kit w/ 1.25" Inlet
Brand: Guardair
SKU: PQ05H125K
Price: 1132.02 USD
Availability: InStock

1 18

Part Number: PQ05H125K

Tool-Ready Wet/Dry Vacuum Kit: 5-gallon head with 1.25" hose and cleanup tools equips a compatible drum (Sold Separately)
Configurable Performance: Three injector nozzle sets provide flexible vacuum performance while helping conserve compressed air
Energy-Efficient Power: Uses up to 70% less compressed air while maintaining strong vacuum performance

See more details

$1,132.02

Product variants

Quantity

View full details

Overview

The Guardair PowerQUAD Vacuum Generating Head Kit (PQ05H125K) converts a compatible 5-gallon steel drum into a compressed-air-powered wet/dry vacuum for chips, dust, debris, liquids, and sludge. This 1.25" configuration adds a 10' vacuum hose and cleanup tools, reducing the components crews need to source separately. Three color-coded injector nozzle sets let crews balance compressed-air use and suction. The rugged 2-stage, multi-venturi engine has no electric motor, rotating parts, or power cord to spark, burn out, or overheat, and a liquid shutoff supports wet pickup. Proudly assembled in the USA.

View the PowerQUAD Vacuum Performance table.

Resources

Features

Tool-Ready Wet/Dry Vacuum Kit: 5-gallon head with 1.25" hose and cleanup tools equips a compatible drum (Sold Separately)
Configurable Performance: Three injector nozzle sets provide flexible vacuum performance while helping conserve compressed air
Energy-Efficient Power: Uses up to 70% less compressed air while maintaining strong vacuum performance
Lower-Noise Operation: Runs at 86 dBA or less to reduce industrial cleanup noise
Wet/Dry Ready: Liquid shutoff supports collection of dry debris, liquids, and sludge
Durable Venturi Engine: Diecast aluminum design has no rotating parts or electric motor

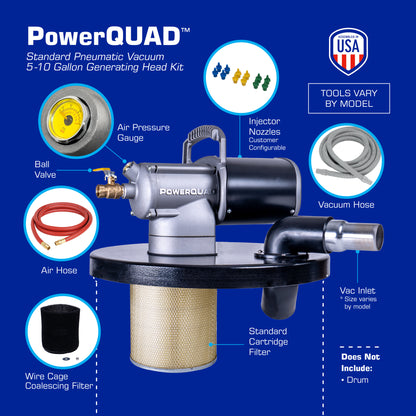

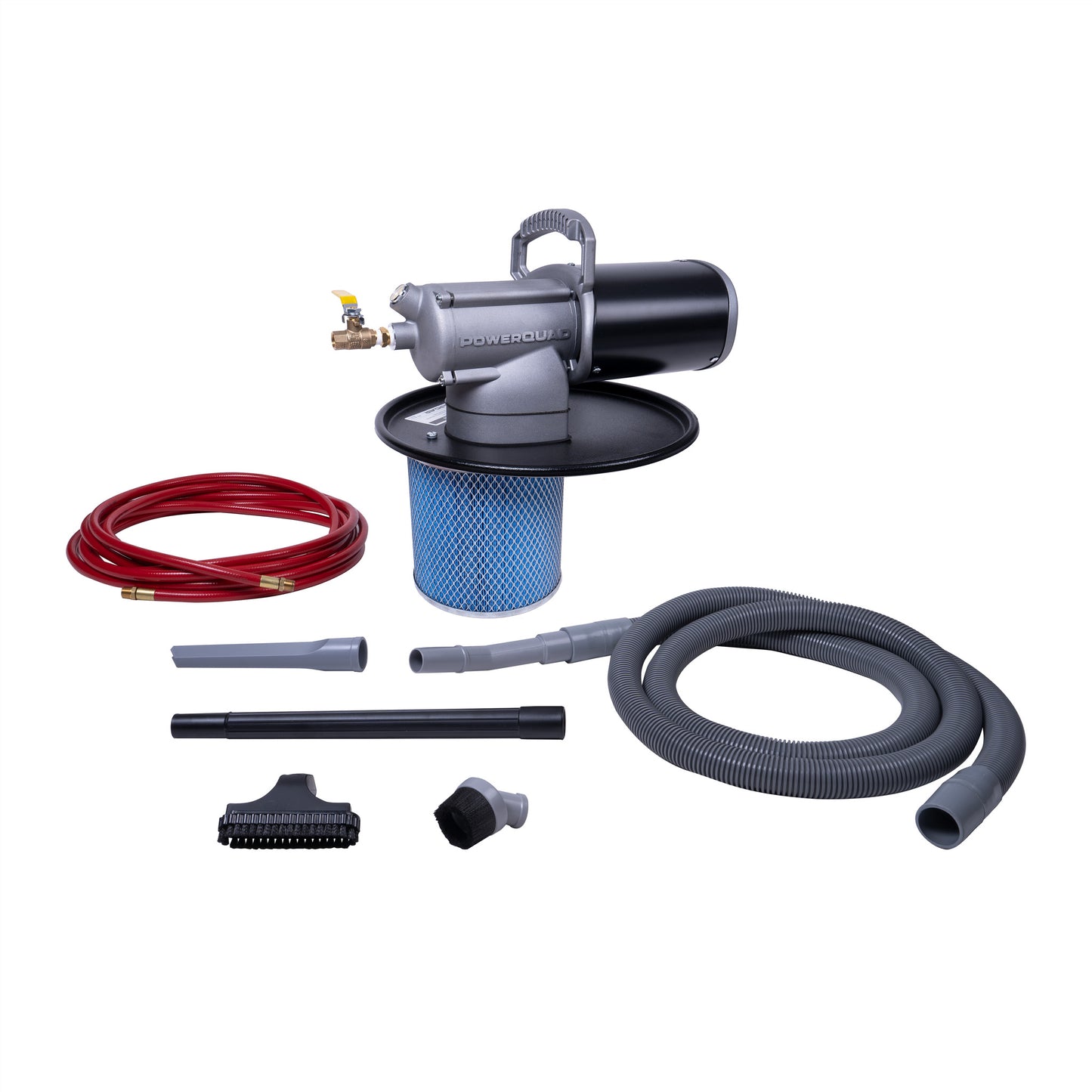

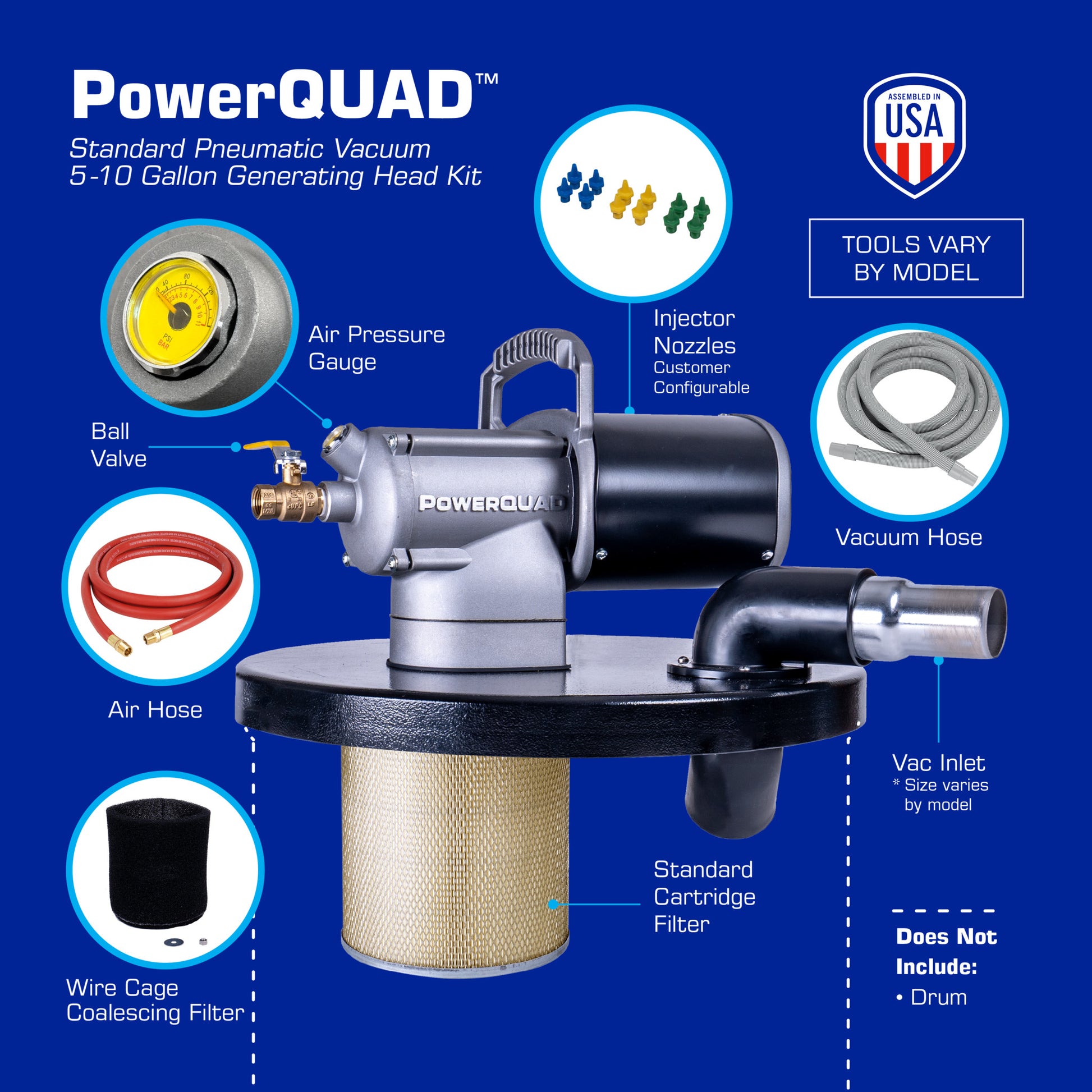

Includes

(1) PowerQUAD 5-Gallon Vacuum Generating Head w/ 1.25" Vacuum Inlet
(1) Small Standard Cartridge Filter
(1) 5/10 Gal Wire Cage Coalescing Filter
(1) Air Supply Shut-Off Valve w/ 3/8" FNPT
(1) 1-1/4" x 10' Standard Duty Vacuum Hose
(1) 8-1/4" Long Plastic Crevice Tool
(1) 1-1/4" Curved Tool Coupler
(1) 3" Round Brush Tool
(1) 19" Plastic Wand

Typical Applications

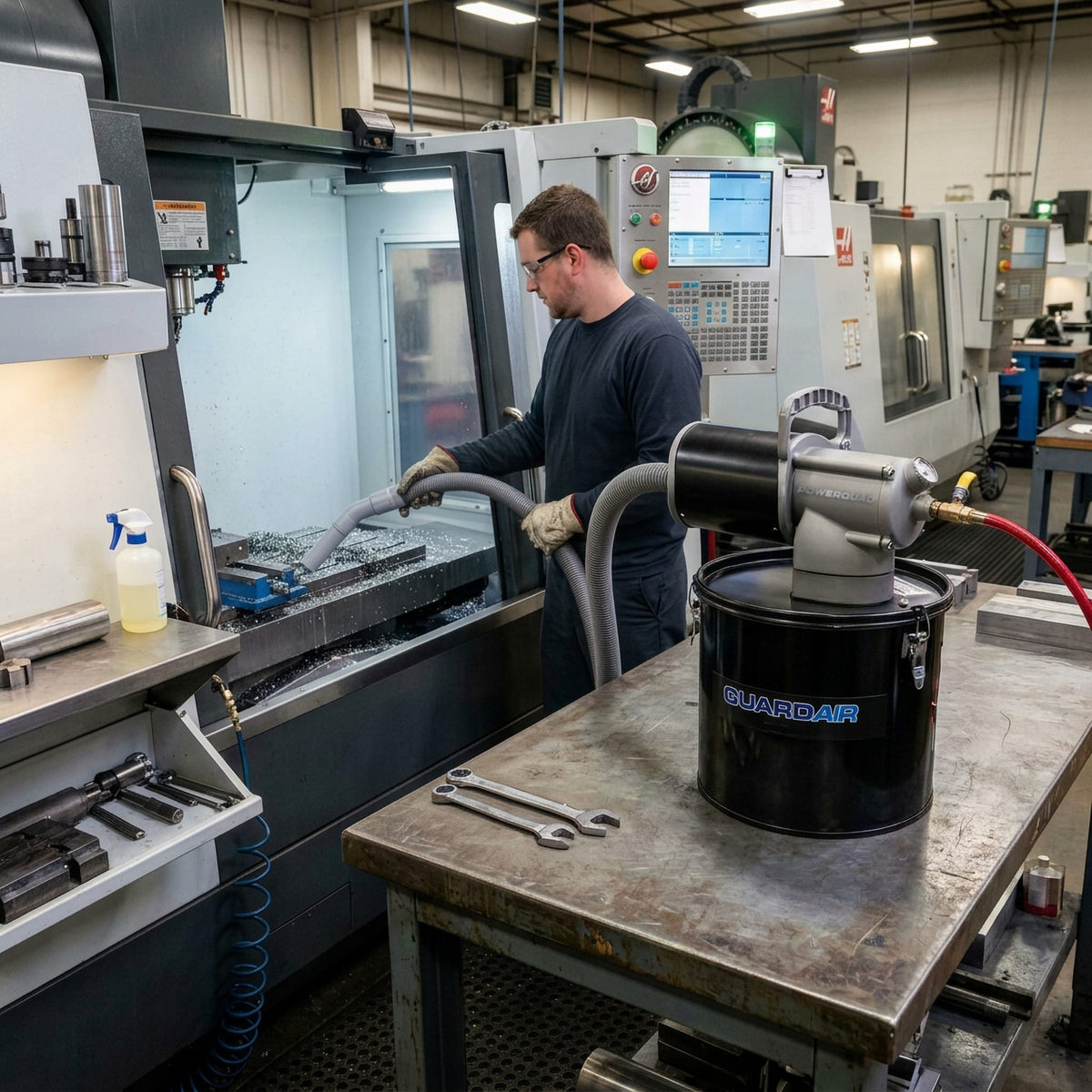

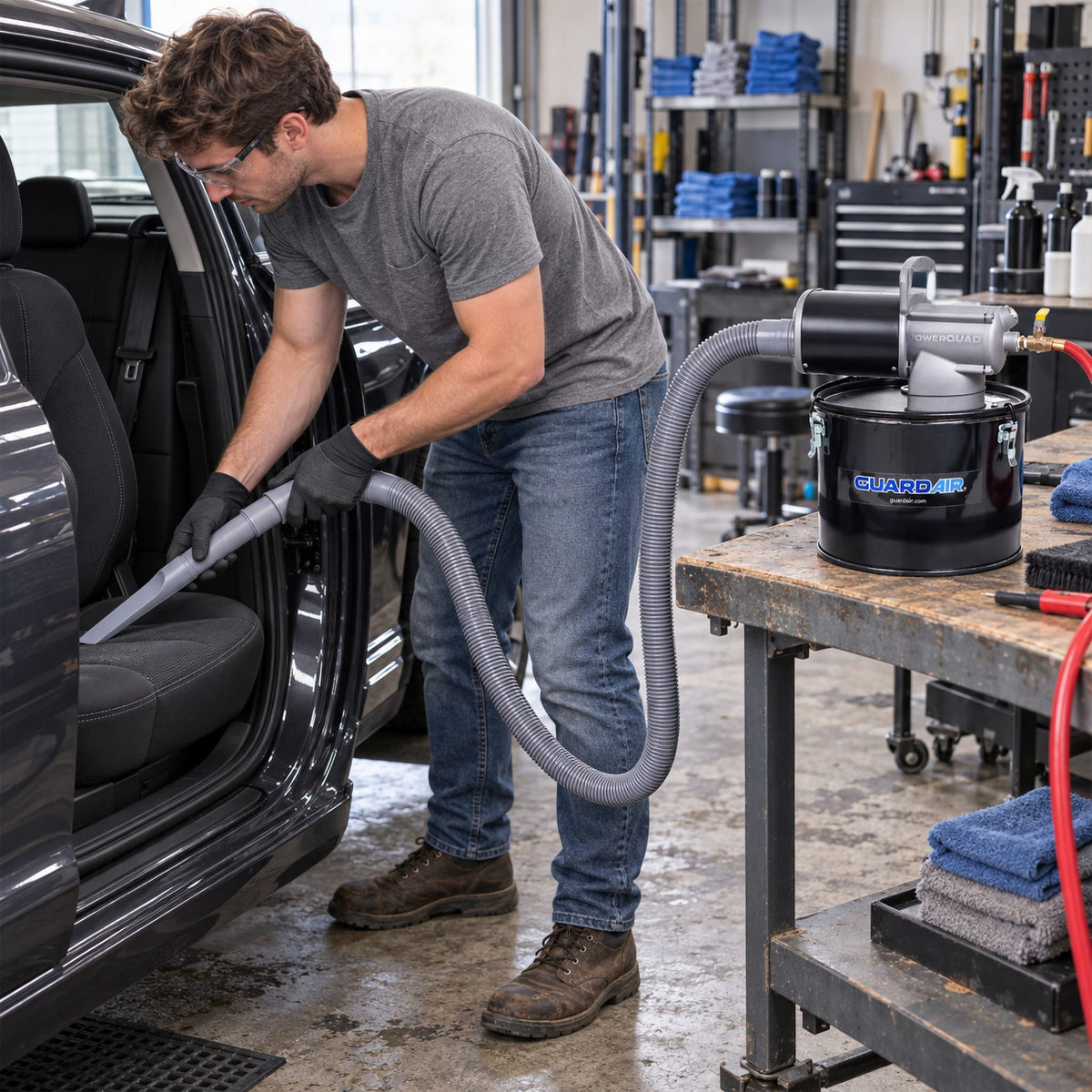

Industrial vacuum for vacuuming up chips, dust, debris, liquids or sludge
Applications that require a hand carry portable vacuum
Continuous duty applications

Shipping & Returns

Lead time: 8 Days. Eligible for free ground shipping on domestic orders unless the order requires palletized shipping.

Non-returnable.

Read the full Shipping & Return policy here.

⚠️ WARNING: Cancer and Reproductive Harm - P65warnings.ca.gov

Warranty

All PowerQUAD™ vacuums feature our exclusive GUARDAIR FOREVER WARRANTY.

How do PowerQUAD compressed air-powered vacuums work?

PowerQUAD vacuums use compressed air to create low pressure, generating vacuum flow through a venturi effect for efficient suction without needing an electric motor.

What are the advantages of compressed air-powered vacuums over electric vacuums?

Compressed air-powered vacuums avoid motor burnout, eliminate electrical hazards, reduce Total Cost of Ownership, and offer higher suction power, especially for heavy materials.

What is the difference between Vacuum Flow and Vacuum Lift?

Vacuum Flow measures air volume through the hose, impacting debris movement, while Vacuum Lift measures the height a vacuum can lift materials, key for deep cleaning.

How do vacuums generate static electricity?

Static electricity is created as air moves over the vacuum hose’s internal surface, influenced by air composition, humidity, and material type.

What size air compressor do I need to operate a PowerQUAD vacuum effectively?

For optimal performance, PowerQUAD vacuums typically require an air compressor capable of delivering 4 cubic feet per minute (cfm) per horsepower (HP). For example, a 50 HP compressor will provide about 200 cfm, ideal for continuous operation. Check the PowerQUAD specifications to match your setup accurately.

Can I use any steel drum with my PowerQUAD vacuum generating head?

No. PowerQUAD vacuum generating heads produce extremely high head. Generating vacuum lift of up to 255 inches of H2O running on 80-90 psi of compressed air, they have been known to implode. See the "Specifications" tab for the minimum required steel drum gauge.

Does Guardair offer HEPA and ULPA filters for PowerQUAD vacuums?

Yes, Guardair provides HEPA and ULPA filters for PowerQUAD vacuums, alongside standard filters, to support a variety of cleaning needs.

Part Number	Drum Capacity (gal)	Vacuum Hose ID (in)	Compressed Air Inlet (in)	Compressed Air Usage (cfm)	Vacuum Flow (cfm)	Vacuum Lift (in H₂0)	Noise Level (dBA)	Min. Size Air Compressor (hp)	Min. Steel Drum (Gauge)	Dimensions (L" x W" x H")	Weight (lbs)
PQ10H150K	10	1.5	1/2	20 - 40 - 60	92 - 118 - 130	126 - 225 - 250	82 - 85	4.4 - 13.3	20	19.8 X 19.8 X 19.1	21
PQ30H150K	20/30	1.5	1/2	20 - 40 - 60	92 - 118 - 130	126 - 225 - 250	82 - 85	4.4 - 13.3	18	24 X 24 X 23	34
PQ30H200K	20/30	2	1/2	20 - 40 - 60	110 - 140 - 150	122 - 215 - 250	85 - 88	4.4 - 13.3	18	24 X 24 X 23	38
PQ05H125K	5	1.25	3/8	20 - 35 - 45	75 - 92 - 97	118 - 184 - 213	81 - 86	4.4 - 10	20	19.8 X 19.8 X 19.1	18
PQ55H150K	55	1.5	1/2	20 - 40 - 60	92 - 118 - 130	126 - 225 - 250	82 - 85	4.4 - 13.3	19	28 X 28 X 23	39
PQ55H200K	55	2	1/2	20 - 40 - 60	110 - 140 - 150	122 - 215 - 250	85 - 88	4.4 - 13.3	19	28 X 28 X 23	43
