PowerQUAD^™ 20/30 Gallon Vacuum Generating Head w/ 2" Inlet

Name: PowerQUAD™ 20/30 Gallon Vacuum Generating Head w/ 2" Inlet
Brand: Guardair
SKU: PQ30H200
Price: 1293.38 USD
Availability: InStock

1 19

Part Number: PQ30H200

Wet/Dry Vacuum Head: 2" inlet handles dry debris and liquids; mounts to a 20- or 30-gallon drum, sold separately
Configurable Performance: Three injector nozzle sets provide flexible vacuum performance while helping conserve compressed air
Energy-Efficient Power: Uses up to 70% less compressed air while maintaining strong vacuum performance

See more details

$1,293.38

Product variants

Quantity

View full details

Overview

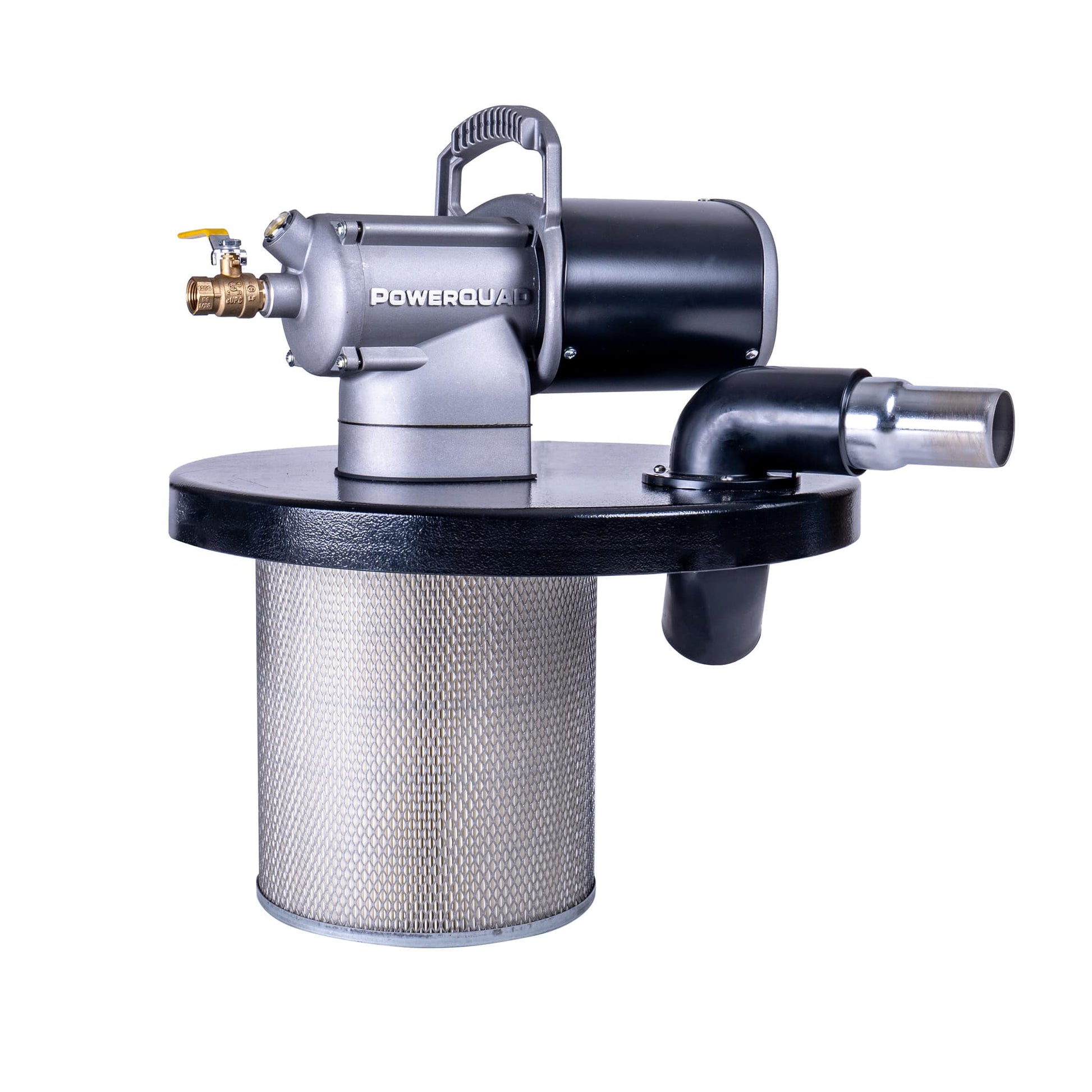

The Guardair PowerQUAD Vacuum Generating Head (PQ30H200) converts a compatible 20- or 30-gallon steel drum into a compressed-air-powered wet/dry vacuum for chips, dust, debris, liquids, and sludge. Its 2" vacuum inlet gives crews a drum-mount cleanup option without buying a complete vacuum assembly. Three color-coded injector nozzle sets let crews balance compressed-air use and suction. The rugged 2-stage, multi-venturi engine has no electric motor, rotating parts, or power cord to spark, burn out, or overheat, and a liquid shutoff supports wet pickup. Proudly assembled in the USA.

View the PowerQUAD Vacuum Performance table.

Resources

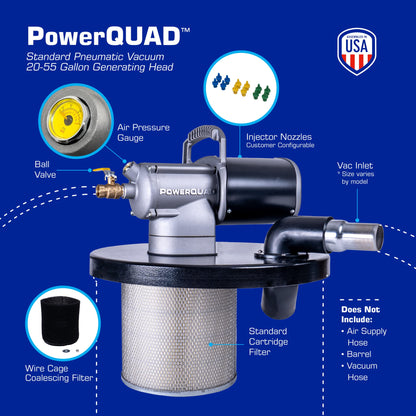

Features

Wet/Dry Vacuum Head: 2" inlet handles dry debris and liquids; mounts to a 20- or 30-gallon drum, sold separately
Configurable Performance: Three injector nozzle sets provide flexible vacuum performance while helping conserve compressed air
Energy-Efficient Power: Uses up to 70% less compressed air while maintaining strong vacuum performance
Lower-Noise Operation: Runs at 88 dBA or less to reduce industrial cleanup noise
Wet/Dry Ready: Liquid shutoff supports collection of dry debris, liquids, and sludge
Durable Venturi Engine: Diecast aluminum design has no rotating parts or electric motor

Includes

(1) PowerQUAD 20 or 30-Gallon Vacuum Generating Head w/ 2" Vacuum Inlet
(1) Standard Cartridge Filter
(1) 20/30/55 Gal Wire Cage Coalescing Filter
(1) Air Supply Shut-Off Valve w/ 1/2" FNPT

Typical Applications

Industrial vacuum for vacuuming up chips, dust, debris, liquids or sludge
Continuous duty applications

Shipping & Returns

Lead time: 8 Days. Eligible for free ground shipping on domestic orders unless the order requires palletized shipping.

Non-returnable.

Read the full Shipping & Return policy here.

⚠️ WARNING: Cancer and Reproductive Harm - P65warnings.ca.gov

Warranty

All PowerQUAD™ vacuums feature our exclusive GUARDAIR FOREVER WARRANTY.

How do PowerQUAD compressed air-powered vacuums work?

PowerQUAD vacuums use compressed air to create low pressure, generating vacuum flow through a venturi effect for efficient suction without needing an electric motor.

What are the advantages of compressed air-powered vacuums over electric vacuums?

Compressed air-powered vacuums avoid motor burnout, eliminate electrical hazards, reduce Total Cost of Ownership, and offer higher suction power, especially for heavy materials.

What is the difference between Vacuum Flow and Vacuum Lift?

Vacuum Flow measures air volume through the hose, impacting debris movement, while Vacuum Lift measures the height a vacuum can lift materials, key for deep cleaning.

How do vacuums generate static electricity?

Static electricity is created as air moves over the vacuum hose’s internal surface, influenced by air composition, humidity, and material type.

What size air compressor do I need to operate a PowerQUAD vacuum effectively?

For optimal performance, PowerQUAD vacuums typically require an air compressor capable of delivering 4 cubic feet per minute (cfm) per horsepower (HP). For example, a 50 HP compressor will provide about 200 cfm, ideal for continuous operation. Check the PowerQUAD specifications to match your setup accurately.

Can I use any steel drum with my PowerQUAD vacuum generating head?

No. PowerQUAD vacuum generating heads produce extremely high head. Generating vacuum lift of up to 255 inches of H2O running on 80-90 psi of compressed air, they have been known to implode. See the "Specifications" tab for the minimum required steel drum gauge.

Does Guardair offer HEPA and ULPA filters for PowerQUAD vacuums?

Yes, Guardair provides HEPA and ULPA filters for PowerQUAD vacuums, alongside standard filters, to support a variety of cleaning needs.

Part Number	Drum Capacity (gal)	Vacuum Hose ID (in)	Compressed Air Inlet (in)	Compressed Air Usage (cfm)	Vacuum Flow (cfm)	Vacuum Lift (in H₂0)	Noise Level (dBA)	Min. Size Air Compressor (hp)	Min. Steel Drum (Gauge)	Dimensions (L" x W" x H")	Weight (lbs)
PQ05H125	5	1.25	3/8	20 - 35 - 45	75 - 92 - 97	118 - 184 - 213	81 - 86	4.4 - 10	20	19.8 X 19.8 X 19.1	16
PQ10H150	10	1.5	1/2	20 - 40 - 60	92 - 118 - 130	126 - 225 - 250	82 - 85	4.4 - 13.3	20	19.8 X 19.8 X 19.1	16
PQ30H150	20/30	1.5	1/2	20 - 40 - 60	92 - 118 - 130	126 - 225 - 250	82 - 85	4.4 - 13.3	18	24 X 24 X 23	28
PQ30H200	20/30	2	1/2	20 - 40 - 60	110 - 140 - 150	122 - 215 - 250	85 - 88	4.4 - 13.3	18	24 X 24 X 23	28
PQ55H150	55	1.5	1/2	20 - 40 - 60	92 - 118 - 130	126 - 225 - 250	82 - 85	4.4 - 13.3	19	28 X 28 X 23	33
PQ55H200	55	2	1/2	20 - 40 - 60	110 - 140 - 150	122 - 215 - 250	85 - 88	4.4 - 13.3	19	28 X 28 X 23	33
