PowerQUAD™ 55 Gallon Vacuum Generating Head w/ 2" Inlet

PowerQUAD™ 55 Gallon Vacuum Generating Head w/ 2" Inlet

Part Number: PQ55H200

  • PowerQUAD 55 Gallon Vacuum Generating Head w/ 2" Inlet

    PQ55H200

1 1
$1,230.62 USD
$1,230.62 USD
Sale Sold out

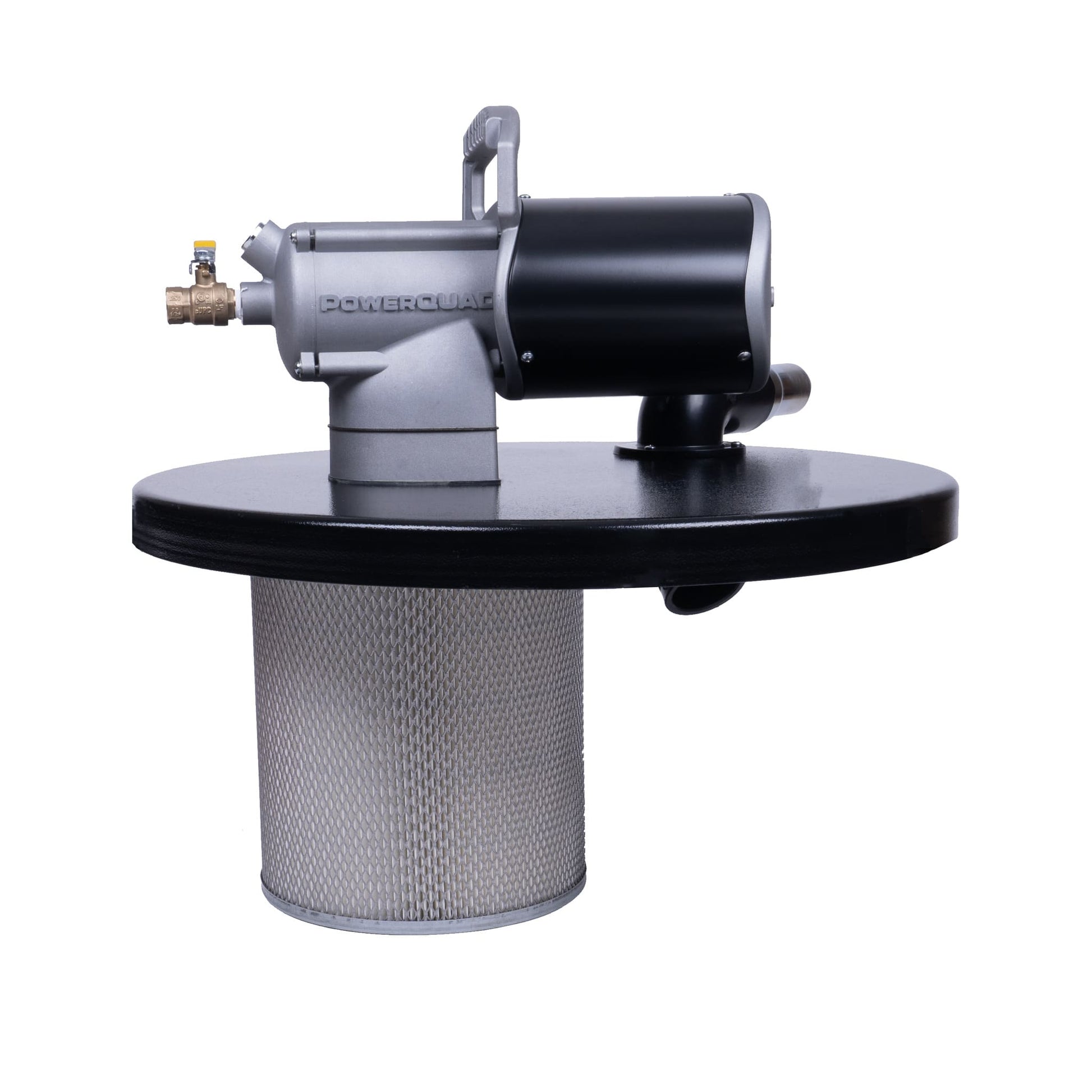

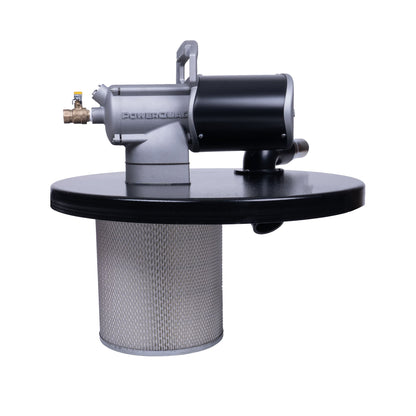

Mount the PowerQUAD™ Vacuum Generating Head on a 55 gallon drum for instant, high-performance vacuum capability. Engineered for exceptional performance, PowerQUAD™ Vacuums are ideal for vacuuming up chips, dust, debris, liquids, or sludge in industrial and commercial applications. Powered by compressed air, with no rotating parts, no motors to spark or burnout, and no electric cords, PowerQUAD™ Vacuums generate superior vacuum suction while delivering substantial operating cost savings. Kit includes vacuum generating head with inlet, air supply shut-off valve, and filter.

Includes three color-coded, easy-to-change injector nozzle sets for tailored performance. View the PowerQUAD™ Vacuum Performance table here.

All units feature our exclusive GUARDAIR FOREVER WARRANTY.
NON-RETURNABLE ITEM.

View full details
  • (1) PowerQUAD™ 55-Gallon Vacuum Generating Head w/ 2" Vacuum Inlet
  • (1) Air Supply Shut-Off Valve w/ 1/2" FNPT
  • (1) 20/30/55 Gal Wire Cage Coalescing Filter
    • Energy Efficient and Powerful: Consume up to 70% less compressed air while delivering unparalleled vacuum suction and substantial operating cost savings.
    • Advanced Noise Reduction: Ultra-quiet operation at 88 dBA or less -- 10–15 dB quieter than traditional vacuums.
    • Intrinsically Safe: No electric motors, or risk of electrical sparks, no electric cords -- safe in both wet and dry locations.
    • Customizable Performance: Tailor performance with three color-coded, easy-to-change injector nozzle sets to customize the level of compressed air savings and vacuum suction.
    • Proprietary Design: Rugged, diecast aluminum, vacuum generating engine features unique 2-stage, multi-venturi design engineered to deliver superior performance.
    • Versatile: Equipped with a liquid shutoff assembly -- suitable for both wet and dry wet applications.
    • Compatible: Backwards compatible with all existing Guardair pneumatic vacuum components including drums, covers, attachments and accessories.
  • (1) PowerQUAD™ 55-Gallon Vacuum Generating Head w/ 2" Vacuum Inlet
  • (1) Air Supply Shut-Off Valve w/ 1/2" FNPT
  • (1) 20/30/55 Gal Wire Cage Coalescing Filter
    • Part Number Vacuum
    Hose ID
    (in)     		Compressed
    Air Inlet
    (in)     		Compressed
    Air Usage
    (cfm)     		Min. Size
    Air Compressor
    (hp)     		Vacuum Flow
    (cfm)     		Vacuum
    Lift
    (in H20)     		Noise
    Level
    (dBA)     		Min.
    Steel Drum
    (Gauge)     		Dimensions
    (L" x W" x H")     		Weight
    (lbs)
    Part Number PQ55H200 Vacuum Hose ID 2 Inlet Connection 1/2 Flow (cfm) 20 - 60 Min. Compressor Required (hp) 4.4 - 13.3 Vacuum Flow (cfm) 110 - 149 Vacuum Lift (in H20) 122 - 250 Noise Level (dB) 85 - 88 Steel Drum Gauge 19 Dimensions
    (L" x W" x H")     28 X 28 X 23     		Weight (lbs) 33
