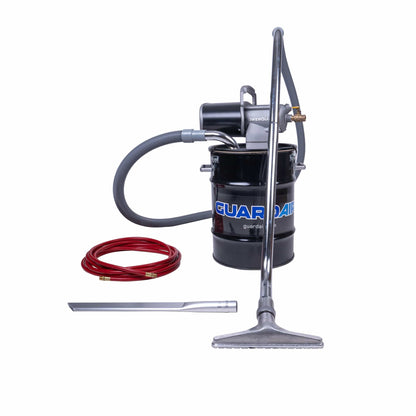

PowerQUAD^™ 10 Gallon Vacuum Kit w/ 1.5" Inlet

Name: PowerQUAD™ 10 Gallon Vacuum Kit w/ 1.5" Inlet
Brand: Guardair
SKU: PQ10C150
Price: 1700.00 USD
Availability: InStock

1 19

Part Number: PQ10C150

Pneumatic Wet/Dry Vacuum: 10-gallon kit with 1.5" inlet picks up chips, dust, debris, liquids, and sludge
Configurable Performance: Three injector nozzle sets provide flexible vacuum performance while helping conserve compressed air
Energy Efficient Power: Uses up to 70% less compressed air while maintaining strong vacuum performance

See more details

$1,700.00

Product variants

Quantity

View full details

Overview

The Guardair PowerQUAD Vacuum Kit (PQ10C150) is a compressed-air-powered wet/dry vacuum for chips, dust, debris, liquids, and sludge in industrial and commercial facilities. Its portable 10-gallon drum adds collection capacity while staying practical for mobile cleanup. Three color-coded injector nozzle sets let crews balance compressed-air use and vacuum performance. The rugged 2-stage, multi-venturi engine has no electric motor, rotating parts, or power cord to spark, burn out, or overheat, and a liquid shutoff supports wet pickup. Proudly assembled in the USA.

View the PowerQUAD Vacuum Performance table.

Resources

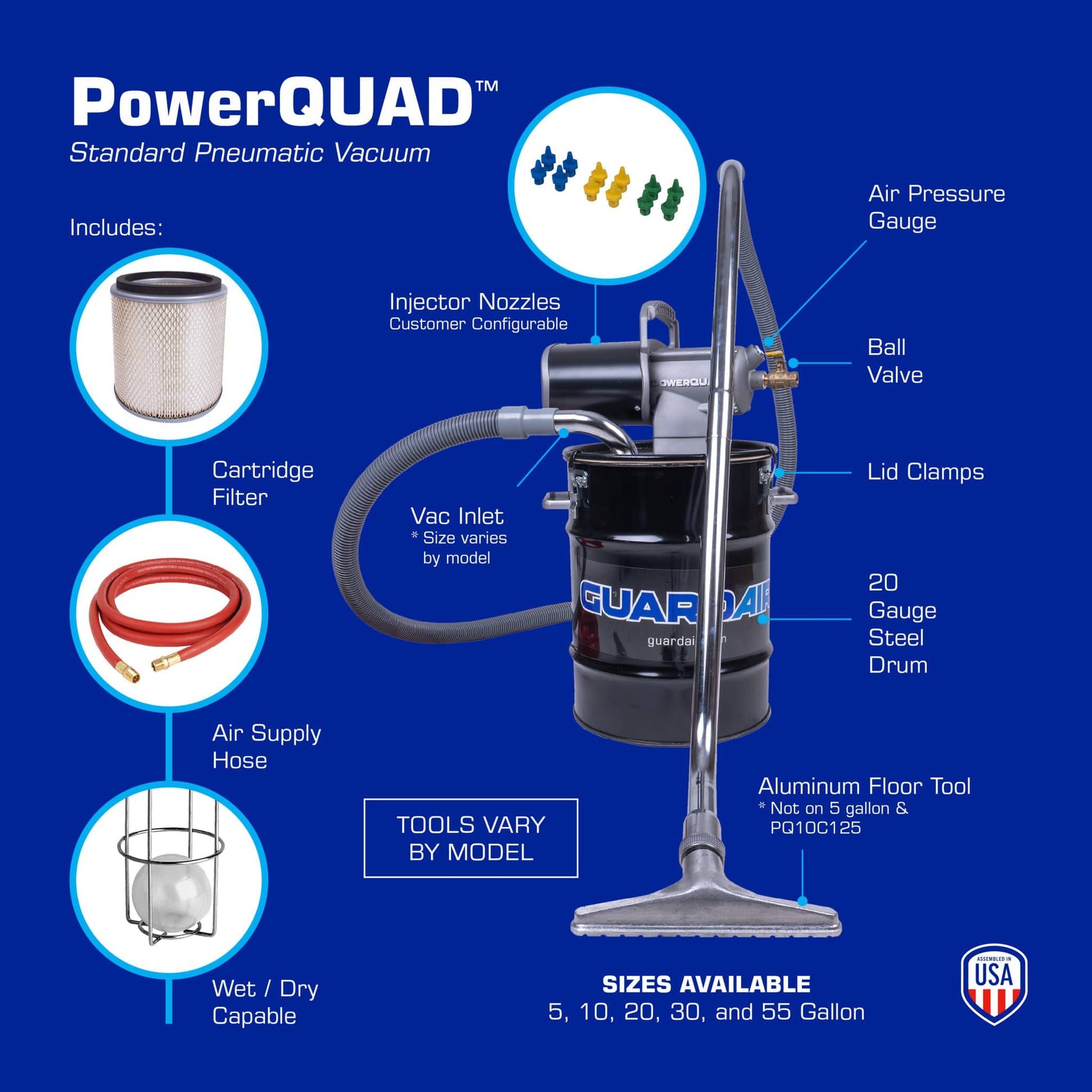

Features

Pneumatic Wet/Dry Vacuum: 10-gallon kit with 1.5" inlet picks up chips, dust, debris, liquids, and sludge
Configurable Performance: Three injector nozzle sets provide flexible vacuum performance while helping conserve compressed air
Energy Efficient Power: Uses up to 70% less compressed air while maintaining strong vacuum performance
Quiet Operation: Runs at 88 dBA or less to reduce industrial cleanup noise
Wet/Dry Ready: Liquid shutoff supports collection of dry debris, liquids, and sludge
Durable Venturi Engine: Diecast aluminum design has no rotating parts or electric motor

Includes

(1) PowerQUAD 10-Gallon Vacuum Generating Head w/ 1.5" Vacuum Inlet
(1) Small Standard Cartridge Filter
(1) 5/10 Gal Wire Cage Coalescing Filter
(1) Air Supply Shut-Off Valve w/ 1/2" FNPT
(1) 3/8" x 12' Air Supply Hose w/ 1/2" MNPT Swivel connectors
(1) 1-1/2" x 10' Standard Duty Vacuum Hose
(1) Heavy-Duty, 20-Gauge, 10-Gallon Steel Drum
(1) 4' Steel Wand w/ 12" Wide Aluminum Floor Tool
(1) 11" Metal Crevice Tool

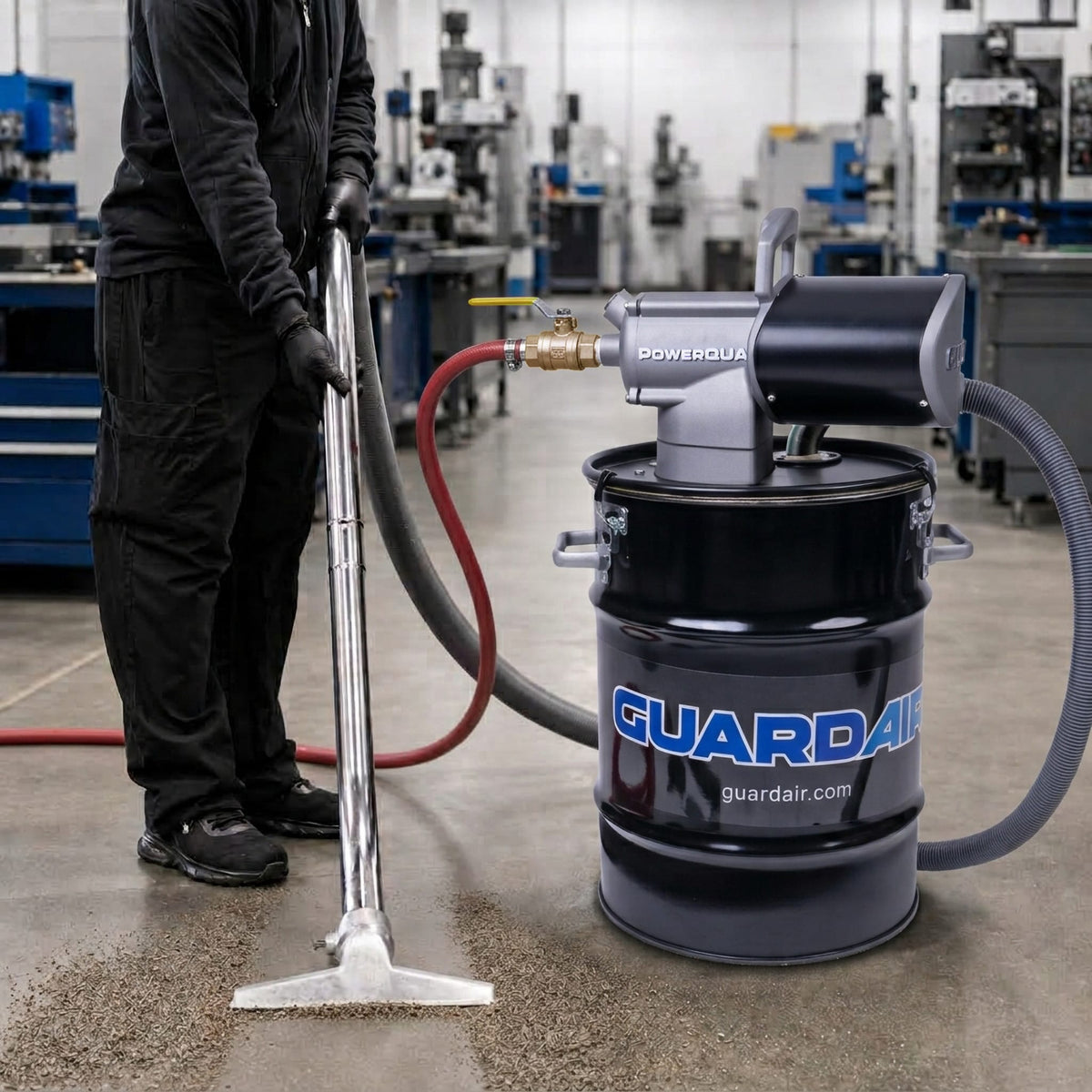

Typical Applications

Industrial vacuum for vacuuming up chips, dust, debris, liquids or sludge
Applications that require a hand carry portable vacuum, but with more capacity
Continuous duty applications

Shipping & Returns

Lead time: 8 Days. Eligible for free ground shipping on domestic orders unless the order requires palletized shipping.

Non-returnable.

Read the full Shipping & Return policy here.

⚠️ WARNING: Cancer and Reproductive Harm - P65warnings.ca.gov

Warranty

All PowerQUAD™ vacuums feature our exclusive GUARDAIR FOREVER WARRANTY.

How do PowerQUAD compressed air-powered vacuums work?

PowerQUAD vacuums use compressed air to create low pressure, generating vacuum flow through a venturi effect for efficient suction without needing an electric motor.

What are the advantages of compressed air-powered vacuums over electric vacuums?

Compressed air-powered vacuums avoid motor burnout, eliminate electrical hazards, reduce Total Cost of Ownership, and offer higher suction power, especially for heavy materials.

What is the difference between Vacuum Flow and Vacuum Lift?

Vacuum Flow measures air volume through the hose, impacting debris movement, while Vacuum Lift measures the height a vacuum can lift materials, key for deep cleaning.

How do vacuums generate static electricity?

Static electricity is created as air moves over the vacuum hose’s internal surface, influenced by air composition, humidity, and material type.

What size air compressor do I need to operate a PowerQUAD vacuum effectively?

For optimal performance, PowerQUAD vacuums typically require an air compressor capable of delivering 4 cubic feet per minute (cfm) per horsepower (HP). For example, a 50 HP compressor will provide about 200 cfm, ideal for continuous operation. Check the PowerQUAD specifications to match your setup accurately.

Can I use any steel drum with my PowerQUAD vacuum generating head?

No. PowerQUAD vacuum generating heads produce extremely high head. Generating vacuum lift of up to 255 inches of H2O running on 80-90 psi of compressed air, they have been known to implode. See the "Specifications" tab for the minimum required steel drum gauge.

Does Guardair offer HEPA and ULPA filters for PowerQUAD vacuums?

Yes, Guardair provides HEPA and ULPA filters for PowerQUAD vacuums, alongside standard filters, to support a variety of cleaning needs.

Part Number	Drum Capacity (gal)	Vacuum Hose ID (in)	Compressed Air Inlet (in)	Compressed Air Usage (cfm)	Vacuum Flow (cfm)	Vacuum Lift (in H₂0)	Noise Level (dBA)	Min. Size Air Compressor (hp)	Min. Steel Drum (Gauge)	Dimensions (L" x W" x H")	Weight (lbs)
PQ05C125	5	1.25	3/8	20 - 35 - 45	75 - 92 - 97	118 - 184 - 213	81 - 86	4.4 - 10	20	19.8 X 19.8 X 20.1	27
PQ10C125	10	1.25	3/8	20 - 35 - 45	75 - 92 - 97	118 - 184 - 213	81 - 86	4.4 - 10	20	19.8 X 19.8 X 28.6	31
PQ10C150	10	1.5	1/2	20 - 40 - 60	92 - 118 - 130	126 - 225 - 250	82 - 85	4.4 - 13.3	20	19.8 X 19.8 X 28.6	37
PQ20C150	20	1.5	1/2	20 - 40 - 60	92 - 118 - 130	126 - 225 - 250	82 - 85	4.4 - 13.3	18	24 X 24 X 36	74
PQ20C200	20	2	1/2	20 - 40 - 60	110 - 140 - 150	122 - 215 - 250	82 - 85	4.4 - 13.3	18	24 X 24 X 36	76
PQ30C150	30	1.5	1/2	20 - 40 - 60	92 - 118 - 130	126 - 225 - 250	82 - 85	4.4 - 13.3	18	24 X 24 X 48.5	78
PQ30C200	30	2	1/2	20 - 40 - 60	110 - 140 - 150	122 - 215 - 250	85 - 88	4.4 - 13.3	18	24 X 24 X 48.5	80
PQ55C150	55	1.5	1/2	20 - 40 - 60	92 - 118 - 130	126 - 225 - 250	82 - 85	4.4 - 13.3	19	28 X 28 X 48.5	91
PQ55C200	55	2	1/2	20 - 40 - 60	110 - 140 - 150	122 - 215 - 250	85 - 88	4.4 - 13.3	19	28 X 28 X 48.5	95
