PowerQUAD™ 20 Gallon Vacuum Kit w/ 1.5" Inlet

PowerQUAD™ 20 Gallon Vacuum Kit w/ 1.5" Inlet

Part Number: PQ20C150

  • PowerQUAD 20 Gallon Vacuum Kit w/ 1.5" Inlet

    PQ20C150

  • PowerQUAD Patent-Pending Vacuum Generating Engine

    PQ20C150

  • PowerQUAD User Configurable Injector Nozzles

    PQ20C150

  • PowerQUAD Wet / Dry Capable

    PQ20C150

  • PowerQUAD Why Choose PQ Icons

    PQ20C150

  • PowerQUAD Injector Nozzle Table

    PQ20C150

  • Forever Warranty

    PQ20C150

  • Assembled in the USA

    PQ20C150

  • PowerQUAD Air Pressure Gauge

    PQ20C150

  • PowerQUAD Ball Valve

    PQ20C150

  • PowerQUAD Vacuum Drain

    PQ20C150

  • PowerQUAD Cross Dolly

    PQ20C150

  • PowerQUAD Clamps/Latches

    PQ20C150

  • PowerQUAD 1/2" Inlet

    PQ20C150

1 14
$1,895.17 USD
$1,895.17 USD
Sale Sold out

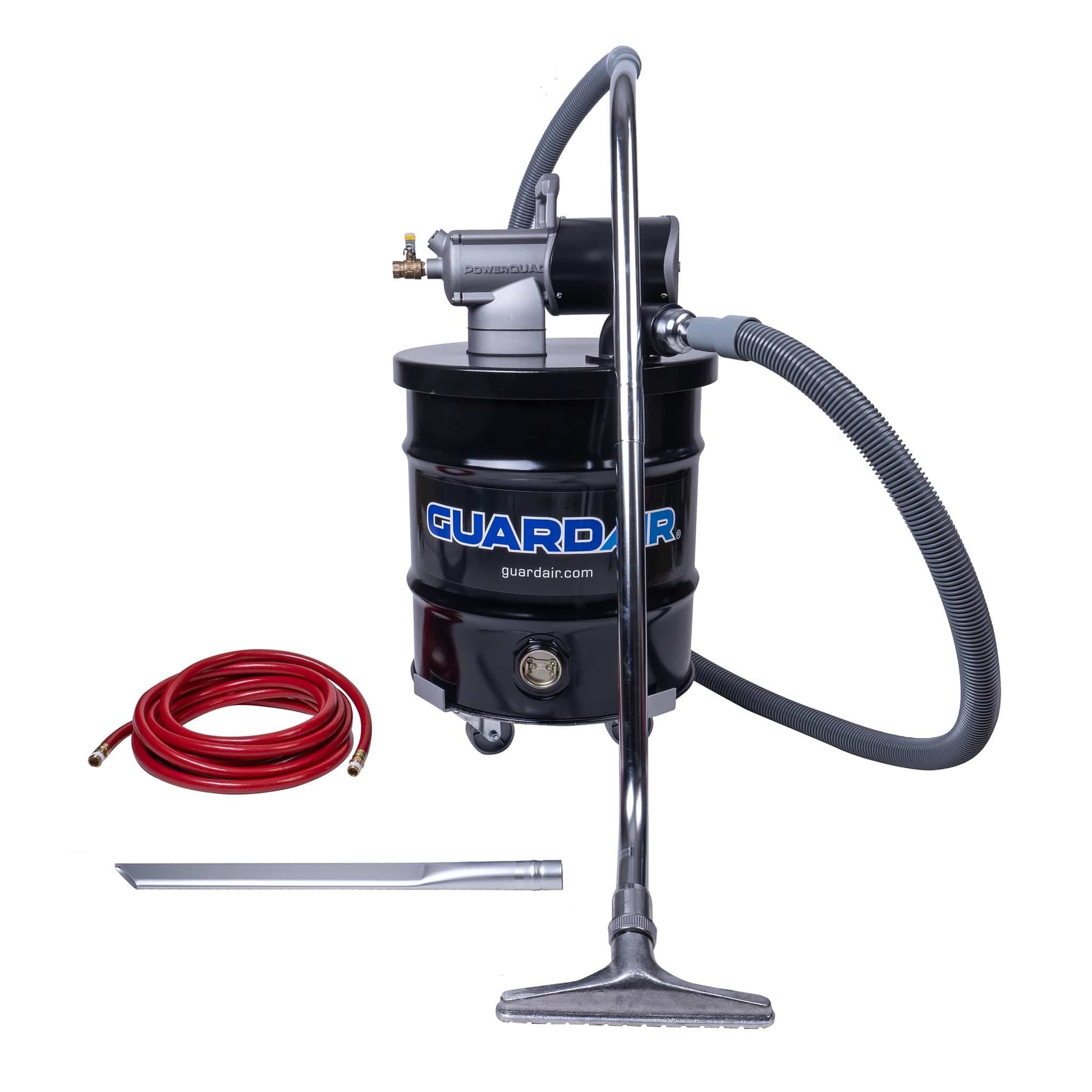

Meet the PowerQUAD™ 20-Gallon Vacuum w/ 1.5” Inlet – the pinnacle of pneumatic vacuum technology. Engineered for exceptional performance, PowerQUAD™ Vacuums are ideal for vacuuming up chips, dust, debris, liquids, or sludge in industrial and commercial applications. Powered by compressed air, with no rotating parts, no motors to spark or burnout, and no electric cords, PowerQUAD™ Vacuums generate superior vacuum suction while delivering substantial operating cost savings. Kit includes vacuum hose, air supply hose and accessories.

Includes three color-coded, easy-to-change injector nozzle sets for tailored performance. View the PowerQUAD™ Vacuum Performance table here.

All units feature our exclusive GUARDAIR FOREVER WARRANTY.
NON-RETURNABLE ITEM.

View full details
  • (1) PowerQUAD™ 20-Gallon Vacuum Generating Head w/ 1.5" Vacuum Inlet
  • (1) Air Supply Shut-Off Valve w/ 1/2" FNPT
  • (1) Standard Cartridge Filter
  • (1) 20/30/55 Gal Wire Cage Coalescing Filter
  • (1) Heavy-Duty, 18-Gauge, 20-Gallon Steel Drum
  • (1) 1/2" x 12' Air Supply Hose w/ 1/2" MNPT Swivel connectors
  • (1) 1-1/2" x 10' Standard Duty Vacuum Hose
  • (1) 4' Steel Wand w/ 12" Wide Aluminum Floor Tool
  • (1) 24" Metal Crevice Tool
  • (1) Drum Dolly w/ (4) 3" Diameter Steel Swivel Casters
    • Energy Efficient and Powerful: Consume up to 70% less compressed air while delivering unparalleled vacuum suction and substantial operating cost savings.
    • Advanced Noise Reduction: Ultra-quiet operation at 88 dBA or less -- 10–15 dB quieter than traditional vacuums.
    • Intrinsically Safe: No electric motors, or risk of electrical sparks, no electric cords -- safe in both wet and dry locations.
    • Customizable Performance: Tailor performance with three color-coded, easy-to-change injector nozzle sets to customize the level of compressed air savings and vacuum suction.
    • Proprietary Design: Rugged, diecast aluminum, vacuum generating engine features unique 2-stage, multi-venturi design engineered to deliver superior performance.
    • Versatile: Equipped with a liquid shutoff assembly -- suitable for both wet and dry wet applications.
    • Compatible: Backwards compatible with all existing Guardair pneumatic vacuum components including drums, covers, attachments and accessories.
  • (1) PowerQUAD™ 20-Gallon Vacuum Generating Head w/ 1.5" Vacuum Inlet
  • (1) Air Supply Shut-Off Valve w/ 1/2" FNPT
  • (1) Standard Cartridge Filter
  • (1) 20/30/55 Gal Wire Cage Coalescing Filter
  • (1) Heavy-Duty, 18-Gauge, 20-Gallon Steel Drum
  • (1) 1/2" x 12' Air Supply Hose w/ 1/2" MNPT Swivel connectors
  • (1) 1-1/2" x 10' Standard Duty Vacuum Hose
  • (1) 4' Steel Wand w/ 12" Wide Aluminum Floor Tool
  • (1) 24" Metal Crevice Tool
  • (1) Drum Dolly w/ (4) 3" Diameter Steel Swivel Casters
    • Part Number Vacuum
    Hose ID
    (in)     		Compressed
    Air Inlet
    (in)     		Compressed
    Air Usage
    (cfm)     		Min. Size
    Air Compressor
    (hp)     		Vacuum Flow
    (cfm)     		Vacuum
    Lift
    (in H20)     		Noise
    Level
    (dBA)     		Min.
    Steel Drum
    (Gauge)     		Dimensions
    (L" x W" x H")     		Weight
    (lbs)
    Part Number PQ20C150 Vacuum Hose ID 1.5 Inlet Connection 1/2 Flow (cfm) 20 - 60 Min. Compressor Required (hp) 4.4 - 13.3 Vacuum Flow (cfm) 92 - 129 Vacuum Lift (in H20) 126 - 251 Noise Level (dB) 82 - 85 Steel Drum Gauge 18 Dimensions
    (L" x W" x H")     24 X 24 X 36     		Weight (lbs) 74
    Lead Time: 2 Days
