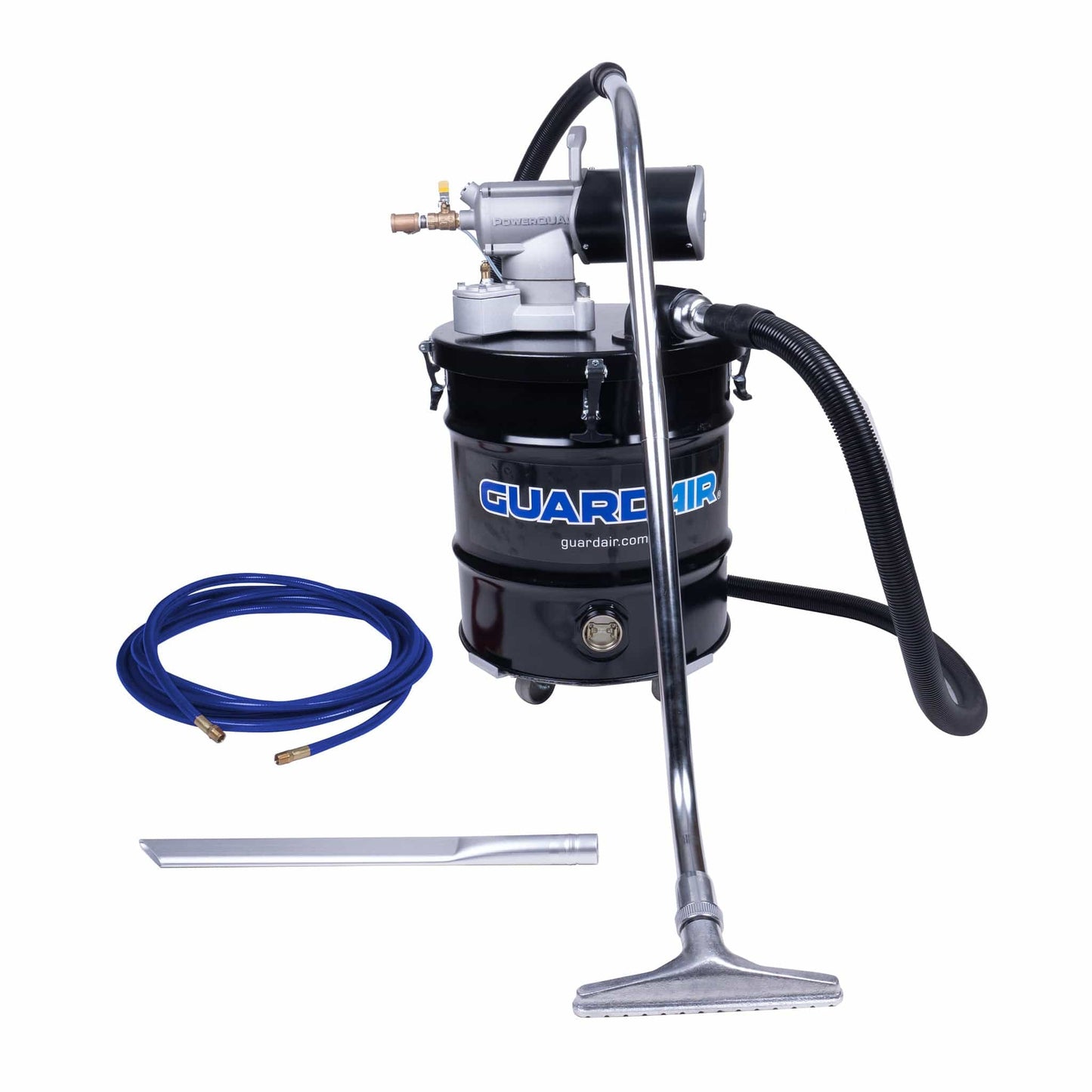

PowerQUAD^™ 20 Gallon PulseAir^™ Vacuum Kit w/ 1.5" Inlet

Part Number: PQ20C150NEDPA

PQ20C150NEDPA
PQ20C150NEDPA
PQ20C150NEDPA
PQ20C150NEDPA
PQ20C150NEDPA
PQ20C150NEDPA
PQ20C150NEDPA
PQ20C150NEDPA
PQ20C150NEDPA
PQ20C150NEDPA
PQ20C150NEDPA
PQ20C150NEDPA
PQ20C150NEDPA
PQ20C150NEDPA
PQ20C150NEDPA
PQ20C150NEDPA
PQ20C150NEDPA

$3,460.23 USD

Sale Sold out

Product variants

Quantity

Meet the PowerQUAD^™ 20-Gallon PulseAir^™ Vacuum Kit w/ 1.5” Inlet – the pinnacle of pneumatic vacuum technology. Engineered for exceptional performance, PowerQUAD^™ PulseAir^™ Vacuums are ideal for clean-up in high dust environments. Featuring button-activated technology, PowerQUAD^™ PulseAir^™ Vacuums incorporate on-demand filter cleaning without opening the unit. Designed to minimize operator exposure to harmful dust thereby meeting OSHA Silica Dust Regulation 29 CFR 1926.1153. Electrically bonded components, multiple grounding options, and static conductive attachments eliminate static electricity and nuisance shocks at the source. Powered by compressed air, with no rotating parts, no motors to spark or burnout, and no electric cords, PowerQUAD^™ PulseAir^™ Vacuums generate superior vacuum suction while delivering substantial operating cost savings. Kit includes static conductive vacuum hose, static conductive air supply hose, and push dolly.

Includes three color-coded, easy-to-change injector nozzle sets for tailored performance. View the PowerQUAD^™ Vacuum Performance table here.

All units feature our exclusive GUARDAIR FOREVER WARRANTY.
NON-RETURNABLE ITEM.

View full details

Energy Efficient and Powerful: Consume up to 70% less compressed air while delivering unparalleled vacuum suction and substantial operating cost savings.
Advanced Noise Reduction: Ultra-quiet operation at 88 dBA or less -- 10–15 dB quieter than traditional vacuums.
Intrinsically Safe: No electric motors, or risk of electrical sparks, no electric cords – safe in both wet and dry locations.
Customizable Performance: Tailor performance with three color-coded, easy-to-change injector nozzle sets to customize the level of compressed air savings and vacuum suction.
Proprietary Design: Rugged, diecast aluminum, vacuum generating engine features unique 2-stage, multi-venturi design engineered to deliver superior performance.
Versatile: Equipped with a liquid shutoff assembly -- suitable for wet and dry applications.
Compatible: Backwards compatible with all existing Guardair pneumatic vacuum components including drums, covers, attachments and accessories.

(1) PowerQUAD^™ 20-Gallon PulseAir^™ Vacuum Generating Head w 1.5" Vacuum Inlet

(1) Air Supply Shut-Off Valve w/ 1/2" FNPT

(1) HEPA Cartridge Filter

(1) Washable Pre-Filter Bag

(1) Heavy-Duty, 18-Gauge, 20-Gallon Steel Drum

(1) 1/2" x 12' Static Conductive Air Supply Hose w/ 1/2" MNPT Swivel connectors

(1) 1-1/2" x 10' Static Conductive Vacuum Hose

(1) 4' Steel Wand w/ 12" Wide Aluminum Floor Tool

(1) 24" Metal Crevice Tool

Part Number	Vacuum Hose ID (in)	Compressed Air Inlet (in)	Compressed Air Usage (cfm)	Min. Size Air Compressor (hp)	Vacuum Flow (cfm)	Vacuum Lift (in H20)	Noise Level (dBA)	Min. Steel Drum (Gauge)	Dimensions (L" x W" x H")	Weight (lbs)
Part Number PQ20C150NEDPA	Vacuum Hose ID 1.5	Inlet Connection 1/2	Flow (cfm) 20 - 60	Min. Compressor Required (hp) 4.4 - 13.3	Vacuum Flow (cfm) 92 - 129	Vacuum Lift (in H20) 126 - 251	Noise Level (dB) 82 - 85	Steel Drum Gauge 18	Dimensions (L" x W" x H") 24 X 37.75 X 48.5	Weight (lbs) 82

Lead Time: 2 Days
