PowerQUAD Pneumatic Vacuum Operation
With no motor or rotating parts to wear out or burn out, PowerQUAD Pneumatic Vacuums are powered by compressed air and offer years of dependable, trouble-free operation. Utilizing the "Venturi Effect", they generate exceptional vacuum lift and more vacuum flow than conventional pneumatic or electric vacuums.

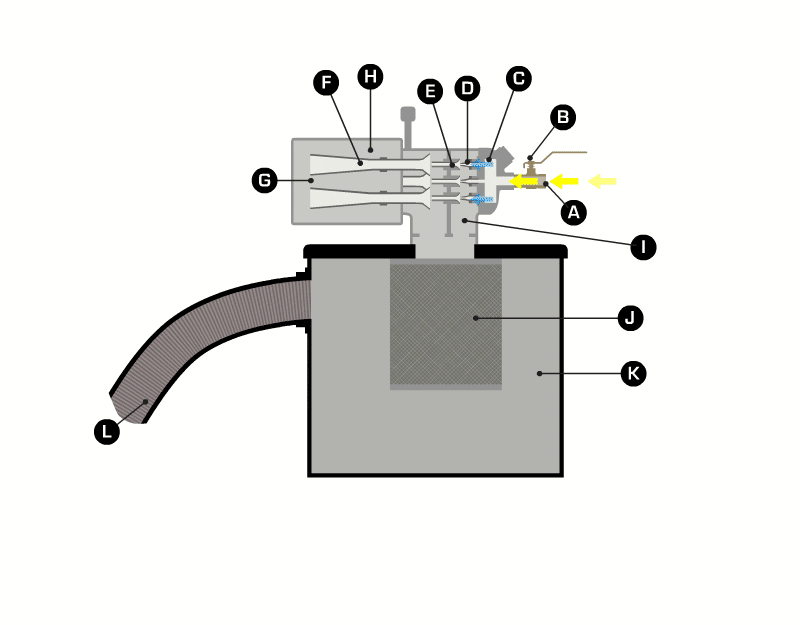

Here's how they work:
- (A) Compressed air from air supply hose
- (B) Passes through ball valve
- (C) Into the manifold
- (D) Through four (4) air injector nozzles
- (E) Into the first set of four (4) venturi
- (F) Then through the second set of four (4) venturi
- (G) Passes by the silencer foam
- (H) Exits through exhaust housing to atmosphere
- (I) Expanding compressed air induces low-pressure
- (J) Drawing air through the internal filter
- (K) Into vacuum drum
- (L) From the vacuum hose
