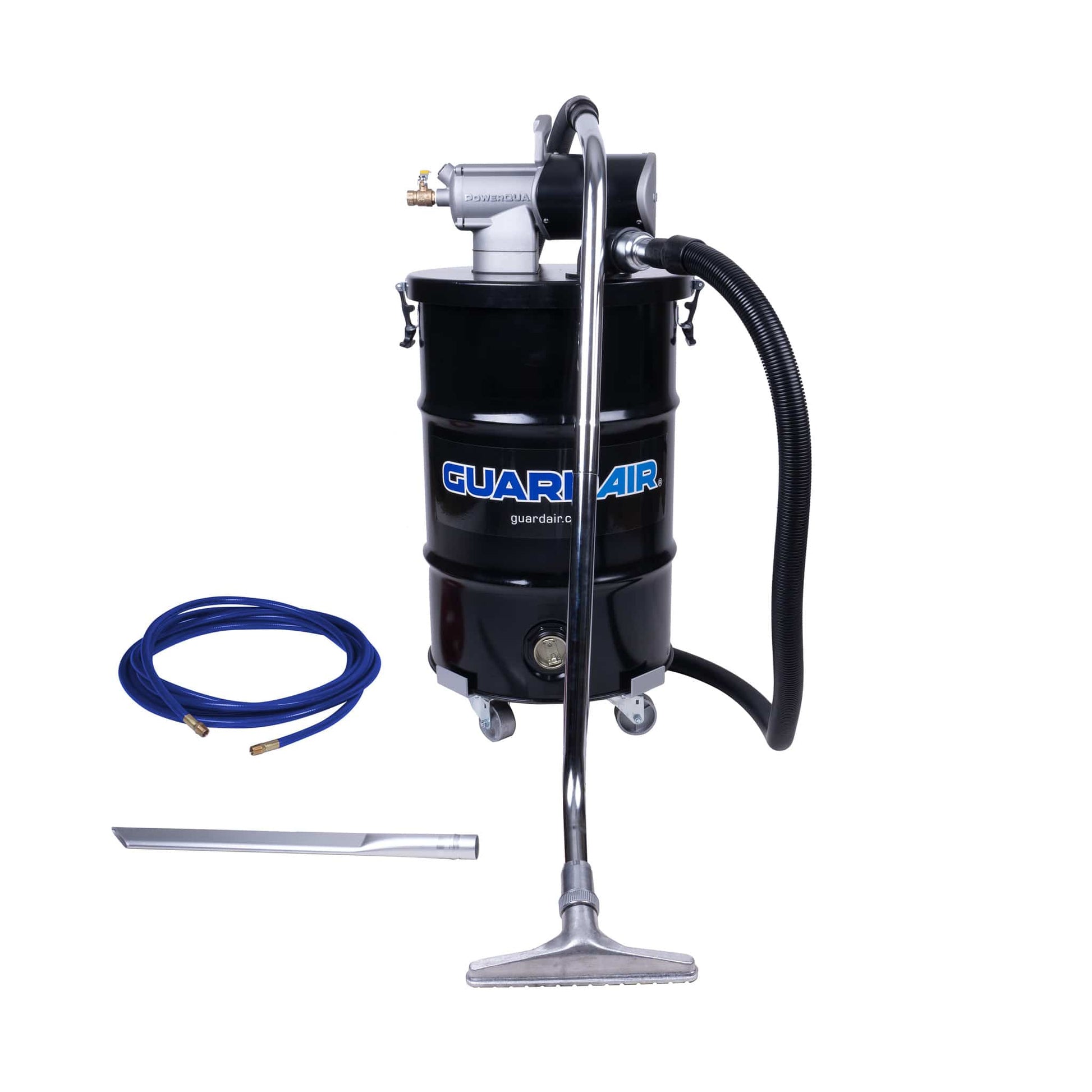

PowerQUAD™ 30 Gallon ATEX Vacuum Kit w/ 1.5" Inlet

PowerQUAD™ 30 Gallon ATEX Vacuum Kit w/ 1.5" Inlet

Part Number: PQ30C150ATEX

  • PowerQUAD 30 Gallon ATEX Vacuum Kit w/ 1.5" Inlet

    PQ30C150ATEX

  • PowerQUAD Electrically Conductive Components

    PQ30C150ATEX

  • PowerQUAD Patent-Pending Vacuum Generating Engine

    PQ30C150ATEX

  • PowerQUAD User Configurable Injector Nozzles

    PQ30C150ATEX

  • PowerQUAD Wet / Dry Capable

    PQ30C150ATEX

  • PowerQUAD Why Choose PQ Icons

    PQ30C150ATEX

  • PowerQUAD Injector Nozzle Table

    PQ30C150ATEX

  • Forever Warranty

    PQ30C150ATEX

  • Assembled in the USA

    PQ30C150ATEX

  • PowerQUAD Air Pressure Gauge

    PQ30C150ATEX

  • PowerQUAD Ball Valve

    PQ30C150ATEX

  • PowerQUAD Vacuum Drain

    PQ30C150ATEX

  • PowerQUAD Cross Dolly

    PQ30C150ATEX

  • PowerQUAD ATEX Clamps/Latches

    PQ30C150ATEX

  • PowerQUAD 1/2" Inlet

    PQ30C150ATEX

1 15
$3,072.75 USD
$3,072.75 USD
Sale Sold out

Meet the PowerQUAD™ 30-Gallon ATEX Vacuum Kit w/ 1.5” Inlet – the pinnacle of pneumatic vacuum technology. Engineered for exceptional performance, ATEX-certified, PowerQUAD™ ATEX Vacuums are ideal for vacuuming combustible dust and operating in many hazardous locations. Electrically bonded components, multiple grounding options, and static conductive attachments eliminate static electricity at the source. Powered by compressed air, with no rotating parts, no motors to spark or burnout, and no electric cords, PowerQUAD™ ATEX Vacuums generate superior vacuum suction while delivering substantial operating cost savings. Kit includes static conductive vacuum hose, static conductive air supply hose and metal accessories.

Includes three color-coded, easy-to-change injector nozzle sets for tailored performance. View the PowerQUAD™ Vacuum Performance table here.

All units feature our exclusive GUARDAIR FOREVER WARRANTY.
NON-RETURNABLE ITEM.

View full details
  • (1) PowerQUAD™ 30-Gallon ATEX Vacuum Generating Head w 1.5" Vacuum Inlet
  • (1) Air Supply Shut-Off Valve w/ 1/2" FNPT
  • (1) Standard Cartridge Filter
  • (1) 20/30/55 Gal Wire Cage Coalescing Filter
  • (1) Heavy-Duty, 18-Gauge, 30-Gallon Steel Drum
  • (1) 1/2" x 12' Static Conductive Air Supply Hose w/ 1/2" MNPT Swivel connectors
  • (1) 1-1/2" x 10' Static Conductive Vacuum Hose
  • (1) 4' Steel Wand w/ 12" Wide Aluminum Floor Tool
  • (1) 24" Metal Crevice Tool
  • (1) Drum Dolly w/ (4) 3" Diameter Steel Swivel Casters
    • ATEX Certified: Meets European ATEX Directives -- suitable for use in the following hazardous locations: Class I Division 1** Groups A, B, C, D T6; Class II Division 1 Groups E, G, T6; Class III ** Zone 1 only
    • Energy Efficient and Powerful: Consume up to 70% less compressed air while delivering unparalleled vacuum suction and substantial operating cost savings.
    • Advanced Noise Reduction: Ultra-quiet operation at 88 dBA or less -- 10–15 dB quieter than traditional vacuums.
    • Intrinsically Safe: No electric motors, or risk of electrical sparks, no electric cords -- safe in wet, dry, or hazardous locations.
    • Customizable Performance: Tailor performance with three color-coded, easy-to-change injector nozzle sets to customize the level of compressed air savings and vacuum suction.
    • Proprietary Design: Rugged, diecast aluminum, vacuum generating engine features unique 2-stage, multi-venturi design engineered to deliver superior performance.
    • Versatile: Equipped with a liquid shutoff assembly -- suitable for wet and dry wet applications.
    • Compatible: Backwards compatible with all existing Guardair pneumatic vacuum components including drums, covers, attachments and accessories.
  • (1) PowerQUAD™ 30-Gallon ATEX Vacuum Generating Head w 1.5" Vacuum Inlet
  • (1) Air Supply Shut-Off Valve w/ 1/2" FNPT
  • (1) Standard Cartridge Filter
  • (1) 20/30/55 Gal Wire Cage Coalescing Filter
  • (1) Heavy-Duty, 18-Gauge, 30-Gallon Steel Drum
  • (1) 1/2" x 12' Static Conductive Air Supply Hose w/ 1/2" MNPT Swivel connectors
  • (1) 1-1/2" x 10' Static Conductive Vacuum Hose
  • (1) 4' Steel Wand w/ 12" Wide Aluminum Floor Tool
  • (1) 24" Metal Crevice Tool
  • (1) Drum Dolly w/ (4) 3" Diameter Steel Swivel Casters
    • Part Number Vacuum
    Hose ID
    (in)     		Compressed
    Air Inlet
    (in)     		Compressed
    Air Usage
    (cfm)     		Min. Size
    Air Compressor
    (hp)     		Vacuum Flow
    (cfm)     		Vacuum
    Lift
    (in H20)     		Noise
    Level
    (dBA)     		Min.
    Steel Drum
    (Gauge)     		Dimensions
    (L" x W" x H")     		Weight
    (lbs)
    Part Number PQ30C150ATEX Vacuum Hose ID 1.5 Inlet Connection 1/2 Flow (cfm) 20 - 60 Min. Compressor Required (hp) 4.4 - 13.3 Vacuum Flow (cfm) 92 - 129 Vacuum Lift (in H20) 126 - 251 Noise Level (dB) 82 - 85 Steel Drum Gauge 18 Dimensions
    (L" x W" x H")     24 X 24 X 48.5     		Weight (lbs) 80
    Lead Time: 12 Days
