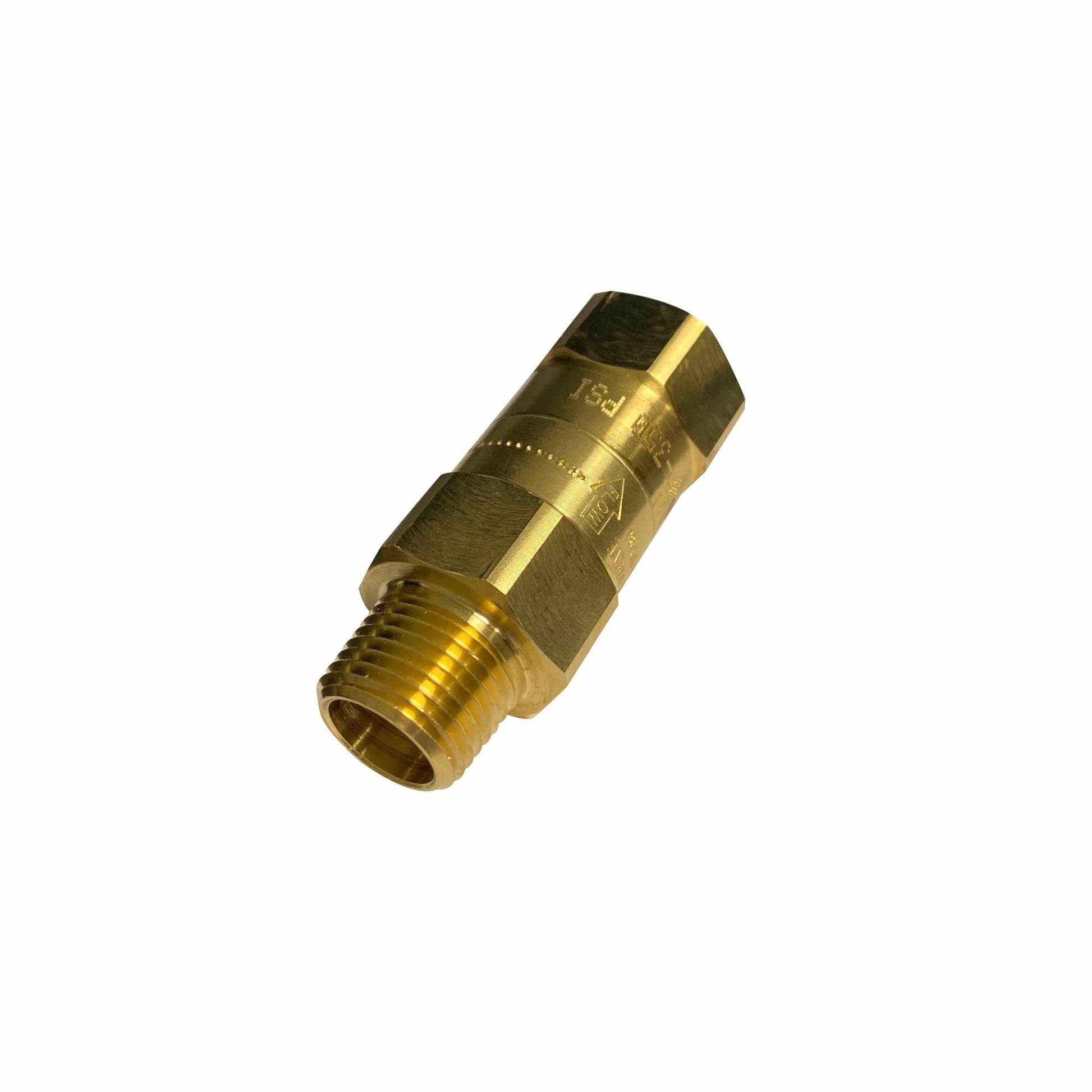

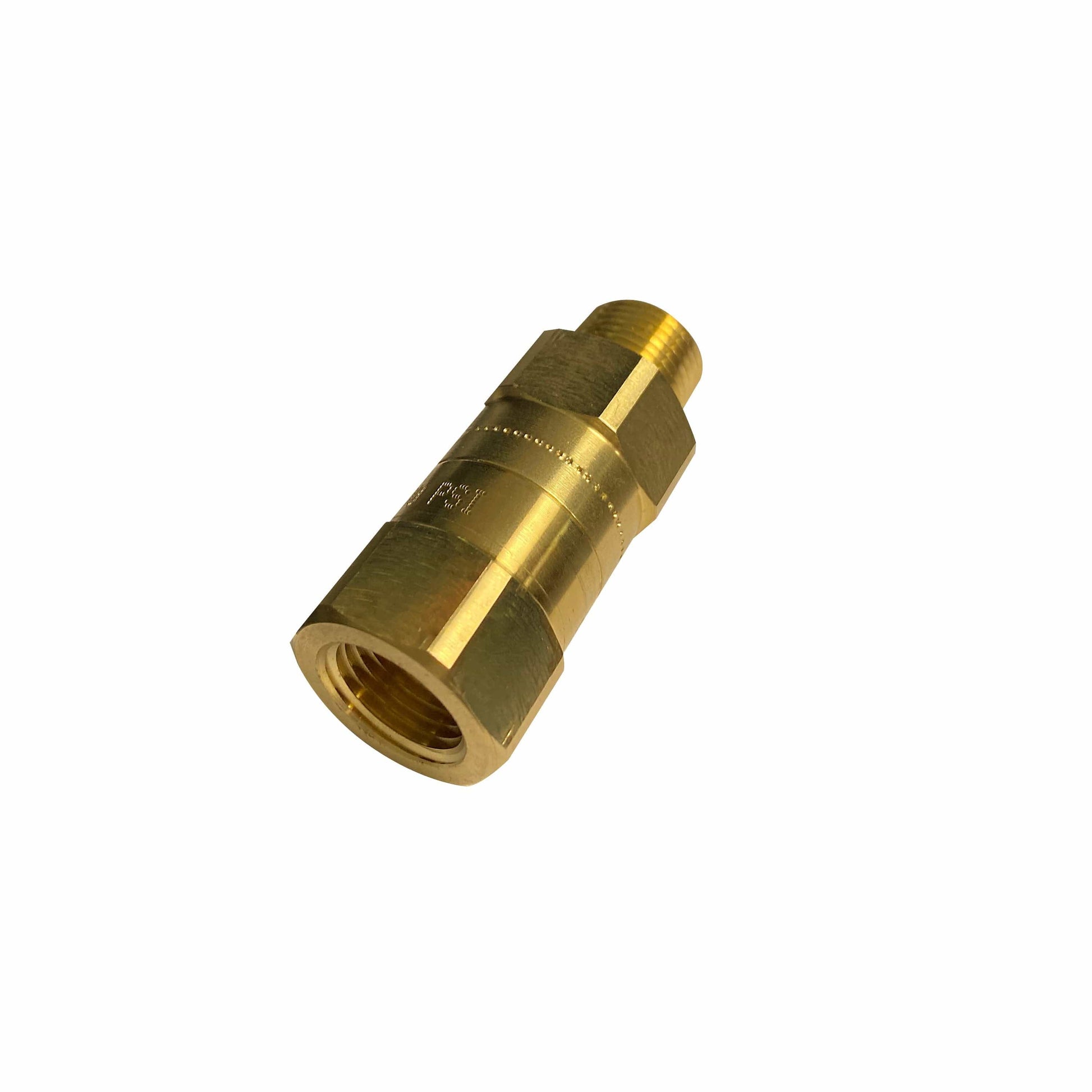

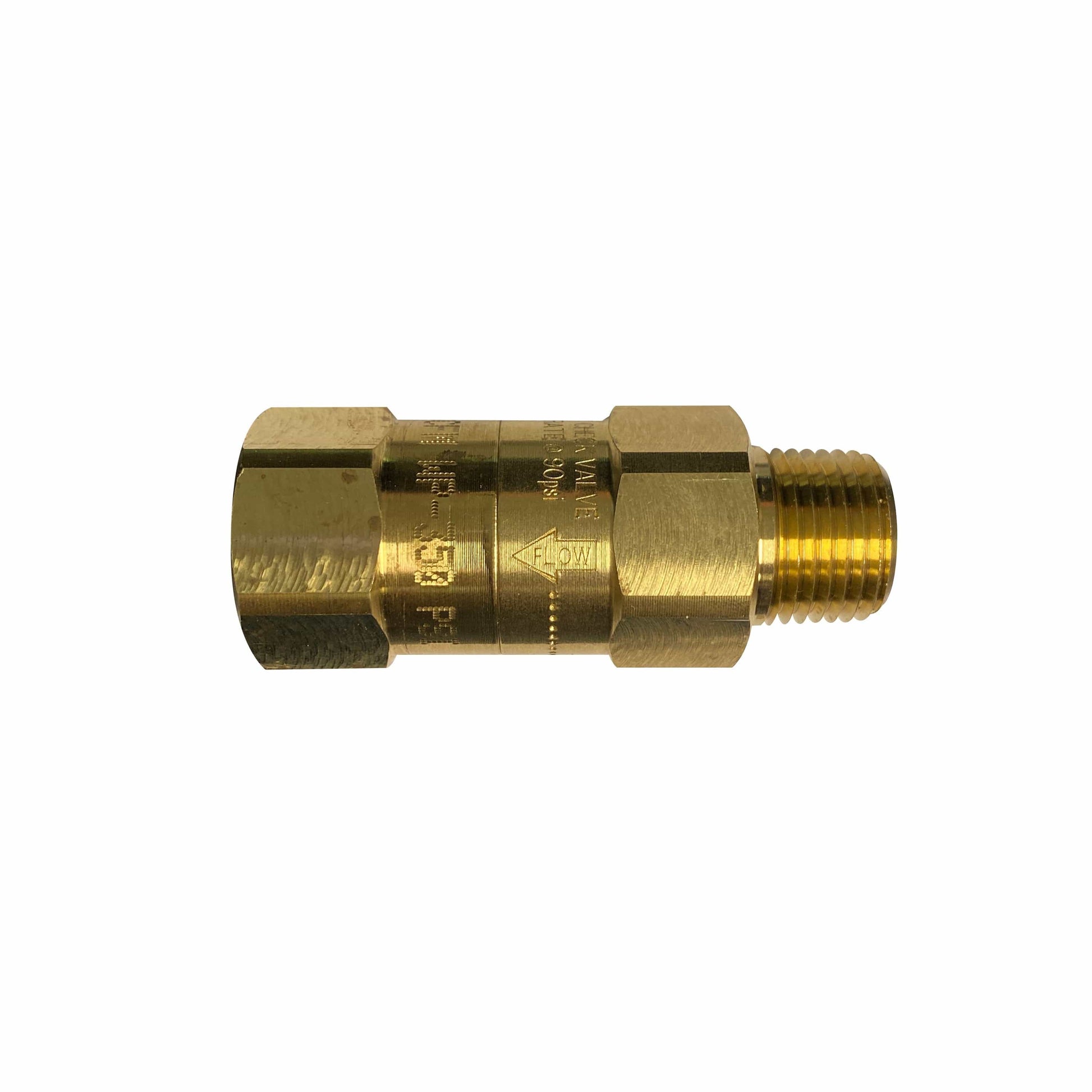

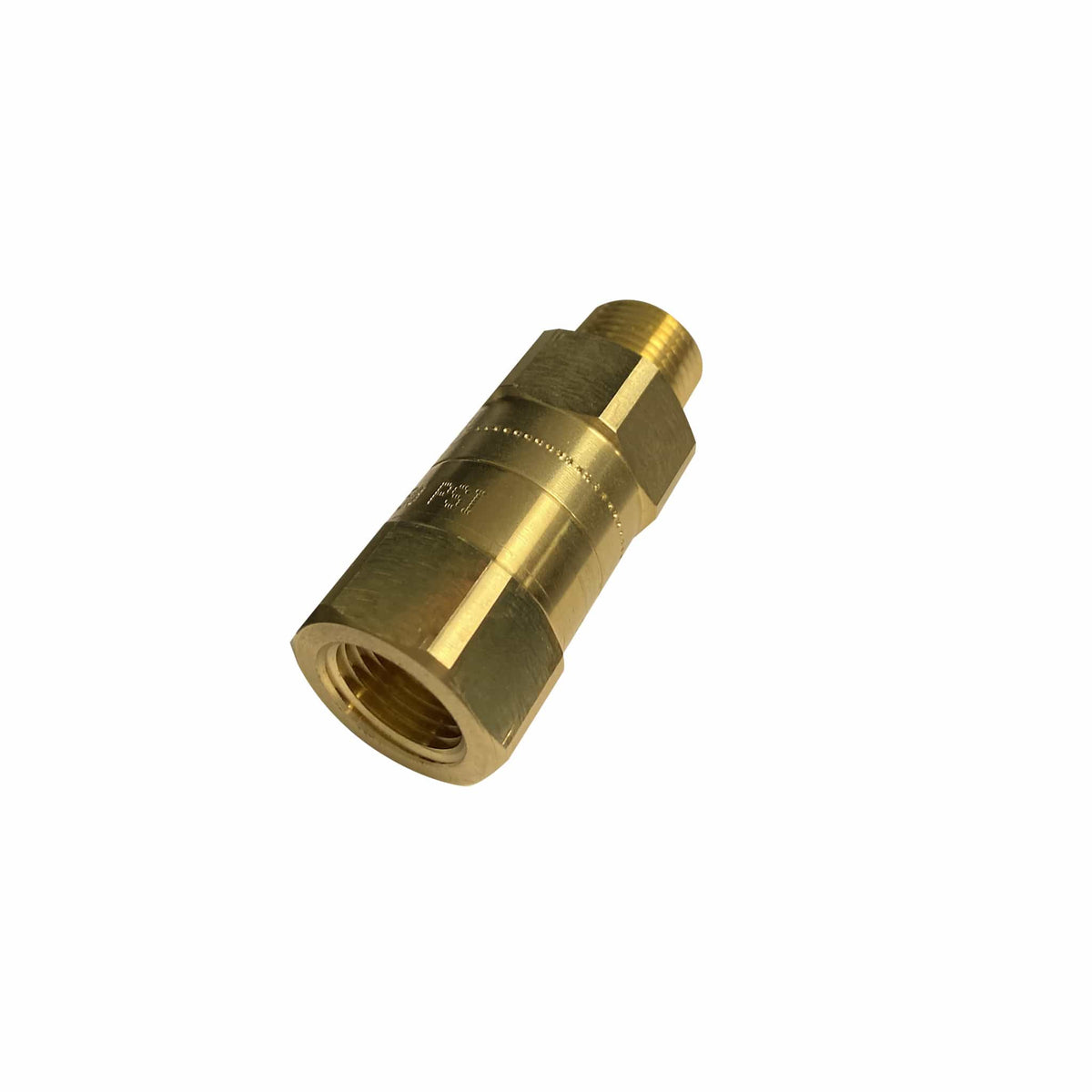

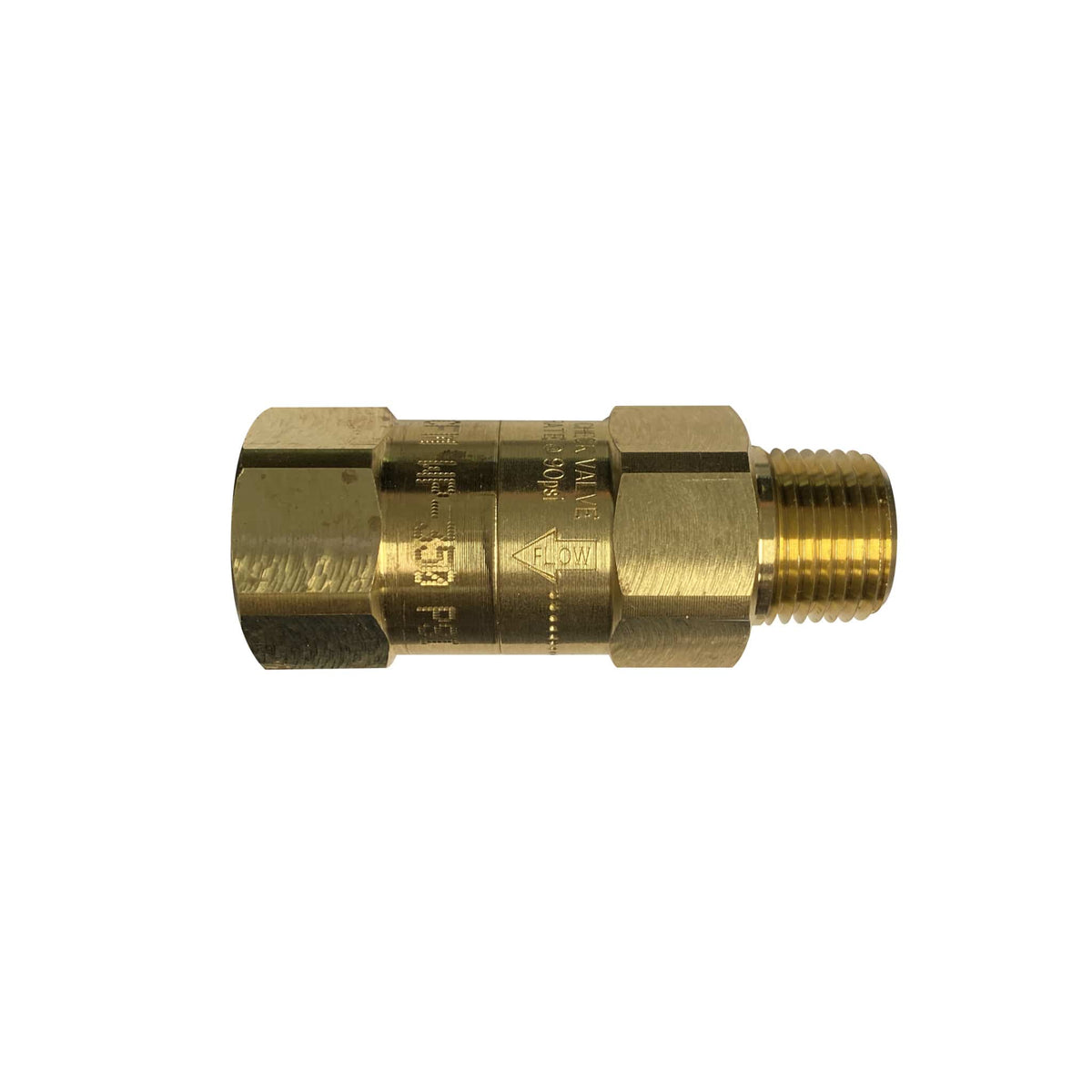

Safety Excess Flow Check Valve - 1/2" FNPT - 1/2" FNPT

Safety Excess Flow Check Valve - 1/2" FNPT - 1/2" FNPT

Part Number: 12H18

Skip to product information
1 of 3
Regular price $65.48 USD
Regular price Sale price $65.48 USD
Sale Sold out

Automatically shuts off air flow upon a sudden air line break. Protects plant personnel and property from injury by "whipping" air hoses. Resets when repair is made. Allows full, unrestricted flow of air in normal open position. Meets OSHA Standard 1926.302(b)(7) for air hoses exceeding 1/2" ID requiring a safety device at the source of supply or branch line to reduce pressure in case of hose failure.

chart
View full details
  • Rugged brass construction
  • Arrow marking ensures correct air flow direction
  • Rugged brass construction
  • Arrow marking ensures correct air flow direction
Part Number Compressed Air Inlet
(in)
Dimensions
(L" x W" x H")
Weight (lbs)
Part Number 12H18 Inlet Connection 1/2 Dimensions
(L" x W" x H")
3.5 X 1.6 X 1.6
Weight (lbs) 0.4
