- Chrome-plated wire cage with plastic ball float
- Plastic foam coalescing filter
Couldn't load pickup availability
Overview
Ideal for wet/dry vacuum applications, Liquid Shutoff Assembly limits intake of vacuumed fluids when the drum becomes full. As the liquid level rises, the ball float rises within the wire cage, and blocks vacuum operation, thereby preventing accidental discharge of vacuumed fluids and protecting the PowerQUAD™ vacuum engine.
Wire cage bolts onto underside of drum cover. Coalescing filter slips over the wire cage. Coalescing filter remains in place during liquid recovery and captures mist during operation. Cartridge filter (not included) for dry applications installs over the coalescing filter and mounts to the wire cage. Mounting hardware included.
Fits Guardair PowerQUAD™ 5 and 10 Gallon Drum Vacuums and Vacuum Generating Heads.
Related Literature
Collapsible content
Features
- Chrome-plated wire cage with plastic ball float
- Plastic foam coalescing filter

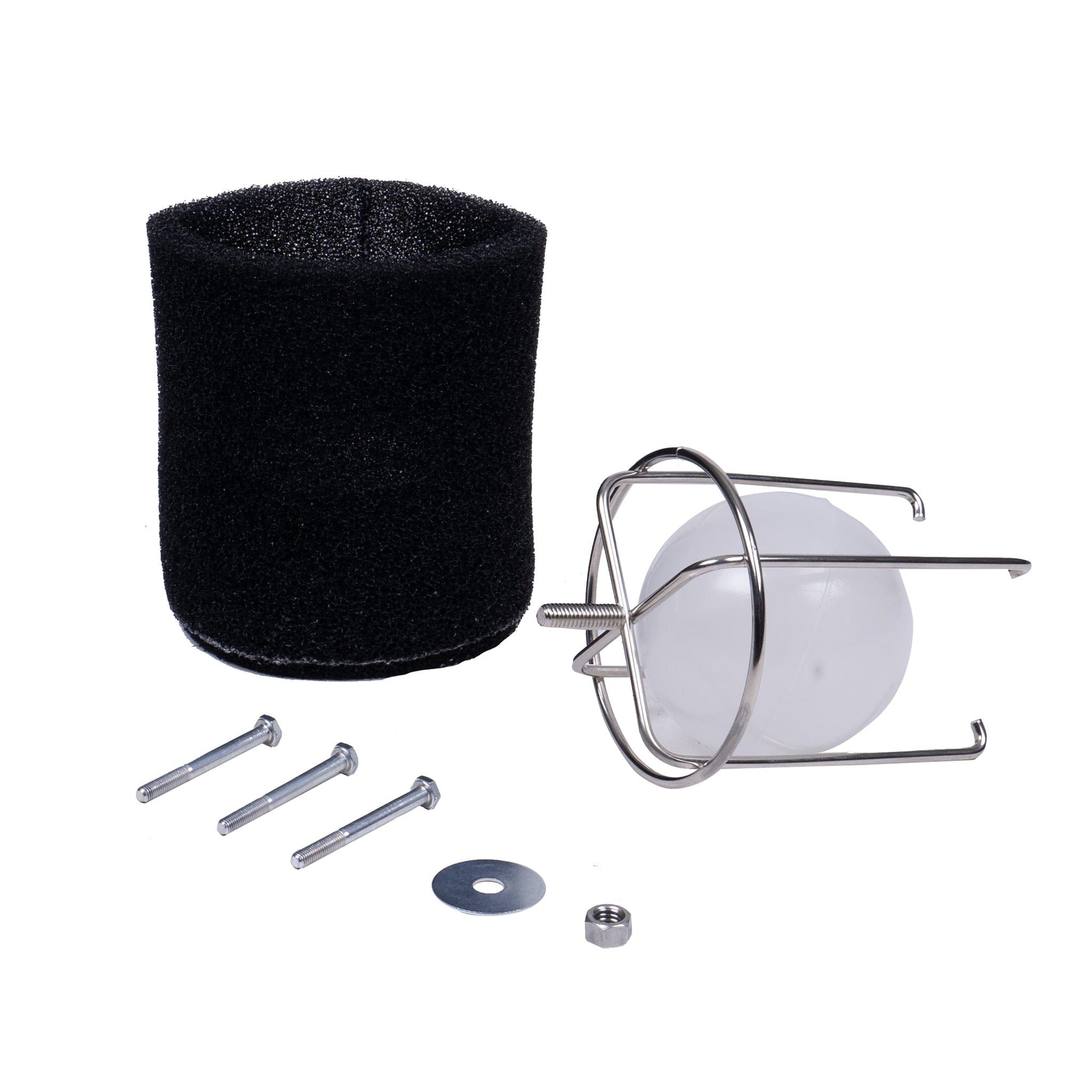

Includes
- (1) 5/10 Gal Wire Cage Coalescing Filter
- (1) Installation Hardware
- (1) Wire Cage
- (1) Ball Float
Typical Applications
Shipping & Returns
Lead time: . Eligible for free ground shipping on domestic orders of $149 or more.
Returnable within 30 days. Must be in factory mint condition and is subject to a 25% restocking charge.
Read the full Shipping & Return policy here.
⚠️ WARNING: Cancer and Reproductive Harm - P65warnings.ca.gov
Warranty
Limited Warranty – One Year Warranty Period. See more details.
