- Chrome-plated wire cage with plastic ball float
- Foam coalescing filter
- Standard cartridge filter features: Galvanized carbon steel cage, Nano fiber filtration media (80% polyester/20% cellulose), 10 microns @ minimum 98% efficiency rating
Couldn't load pickup availability
Overview

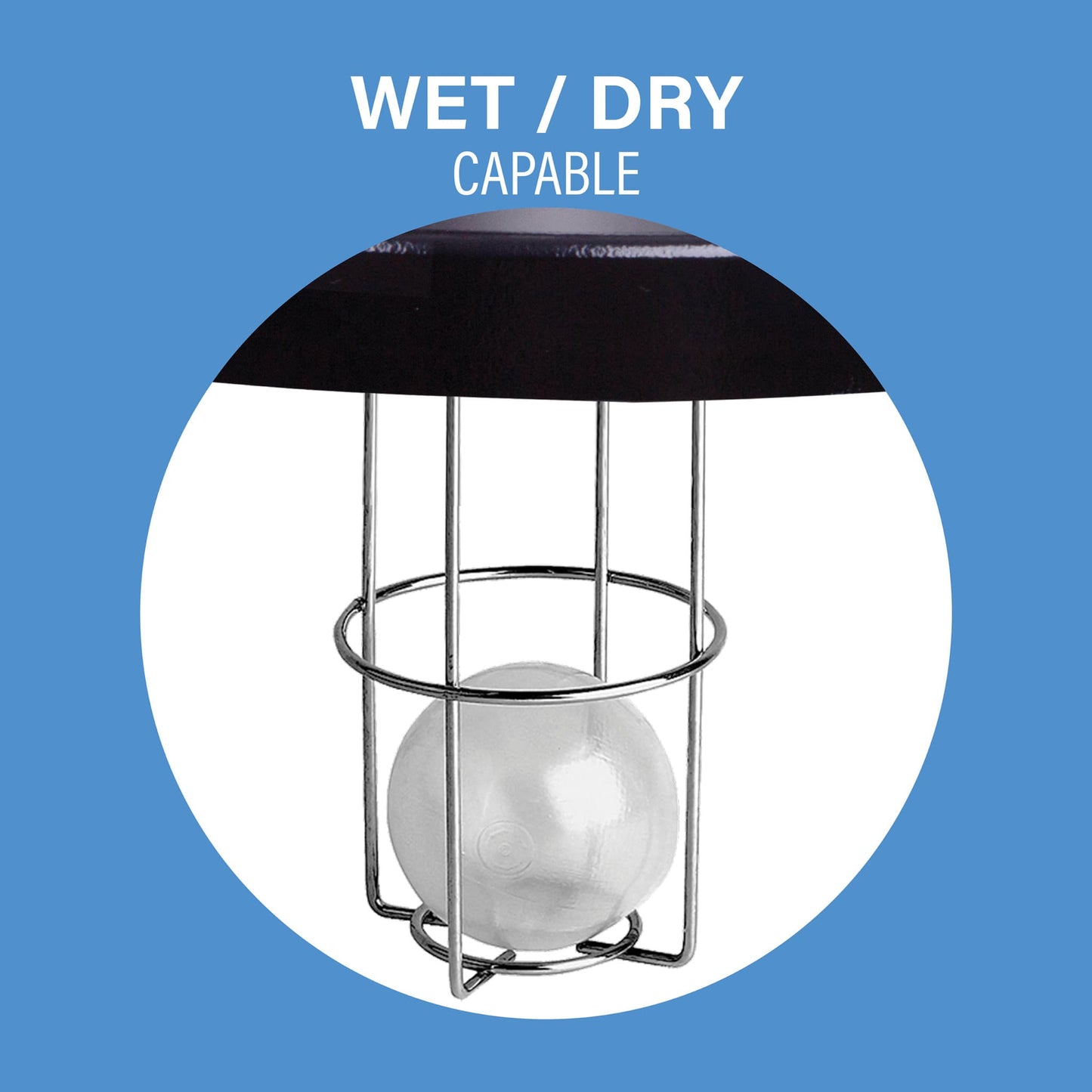

Ideal for wet/dry vacuum applications, Liquid Shutoff Assembly limits intake of vacuumed fluids when the drum becomes full. As the liquid level rises, the ball float rises within the wire cage, and blocks vacuum operation, thereby preventing accidental discharge of vacuumed fluids and protecting the PowerQUAD™ vacuum engine.
Wire cage bolts onto underside of drum cover. Coalescing filter slips over the wire cage. Coalescing filter remains in place during liquid recovery and captures mist during operation. Cartridge filter for dry applications installs over the coalescing filter and mounts to the wire cage. Mounting hardware included.
Fits Guardair PowerQUAD™ 20, 30 and 55 Gallon Drum Vacuums and Vacuum Generating Heads.
Related Literature
Collapsible content
Features
- Chrome-plated wire cage with plastic ball float
- Foam coalescing filter
- Standard cartridge filter features: Galvanized carbon steel cage, Nano fiber filtration media (80% polyester/20% cellulose), 10 microns @ minimum 98% efficiency rating

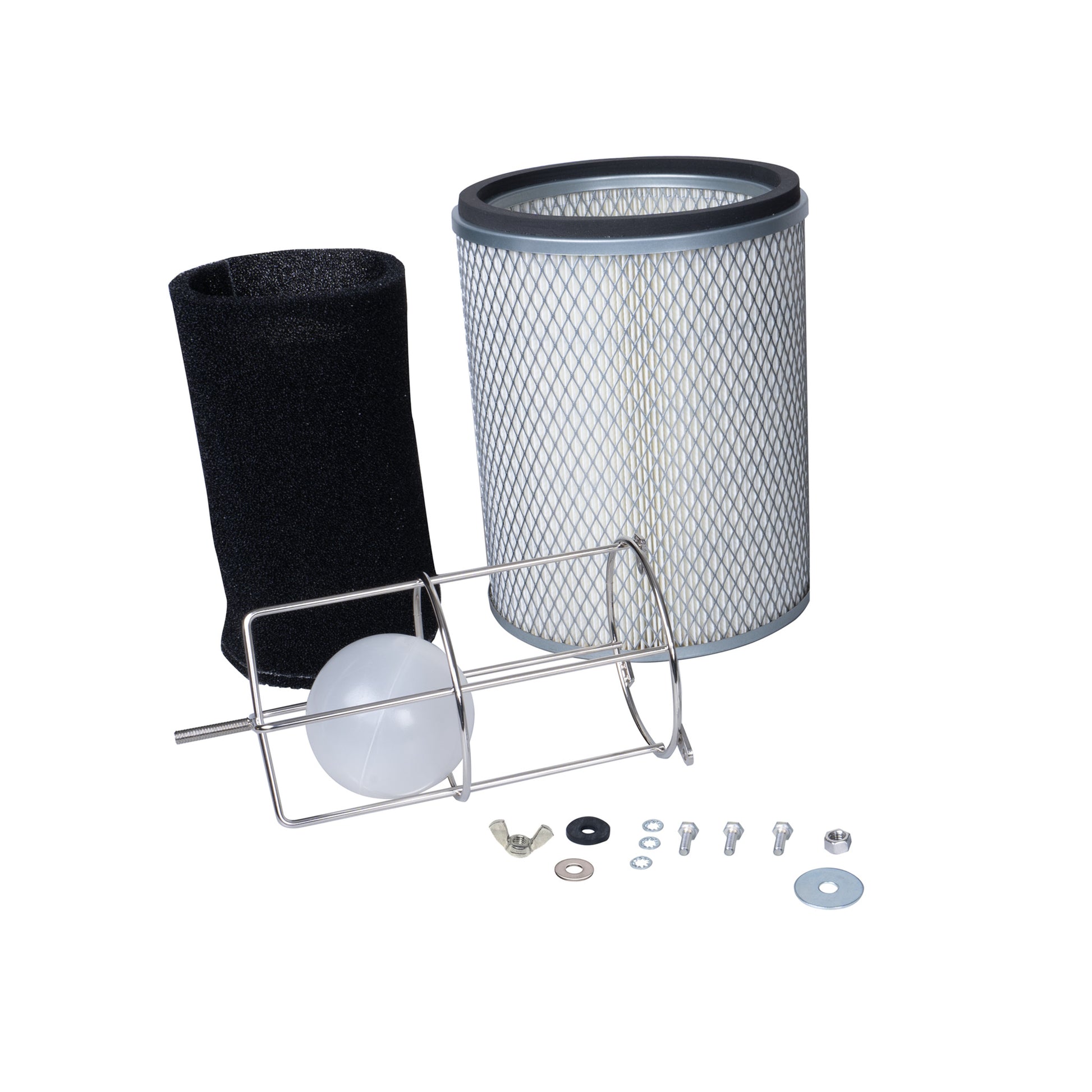

Includes
- (1) Wire Cage
- (1) Ball Float
- (1) 20/30/55 Gal Wire Cage Coalescing Filter
- (1) Installation Hardware
- (1) Standard Cartridge Filter
Typical Applications
