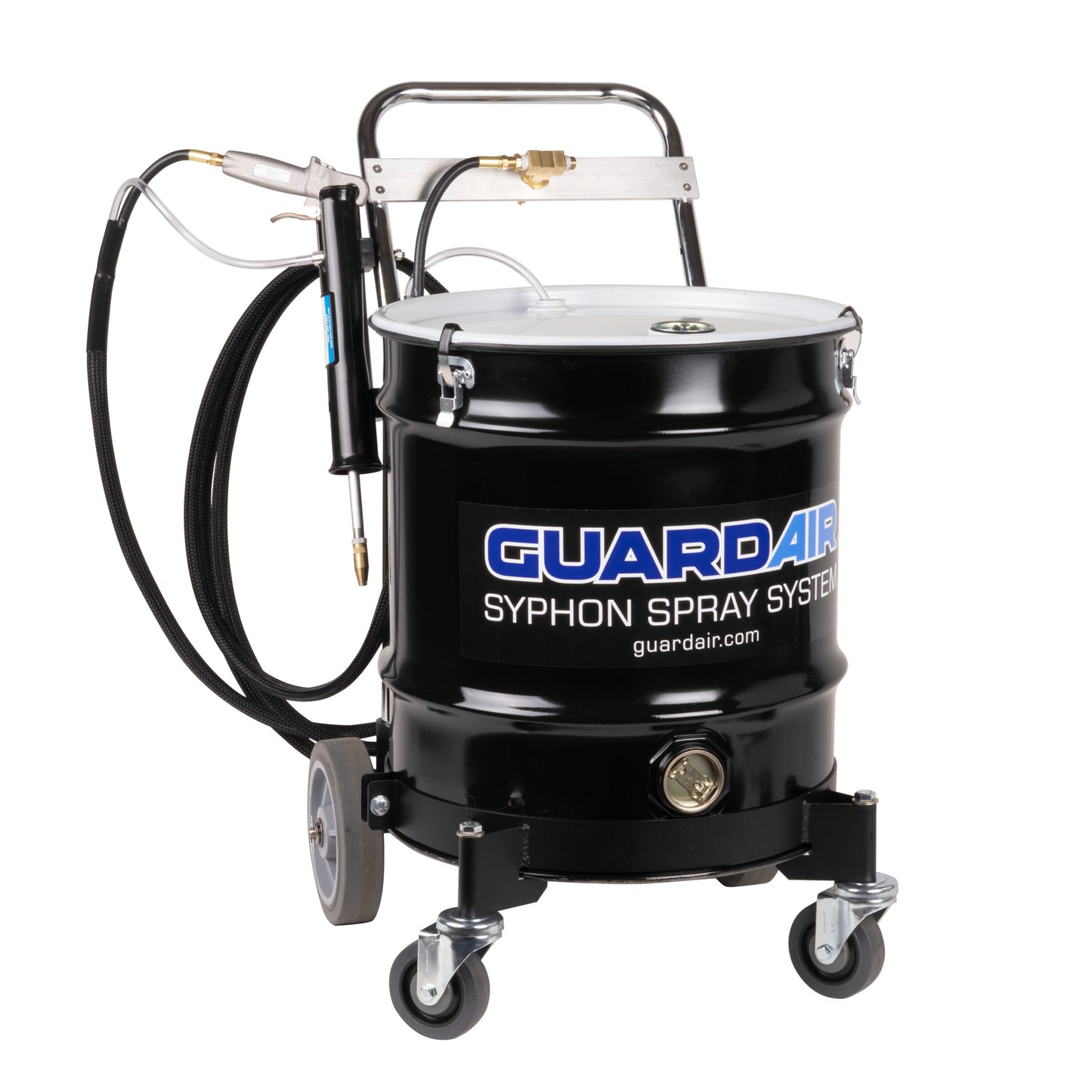

Syphon Spray System Part Number: SS2020

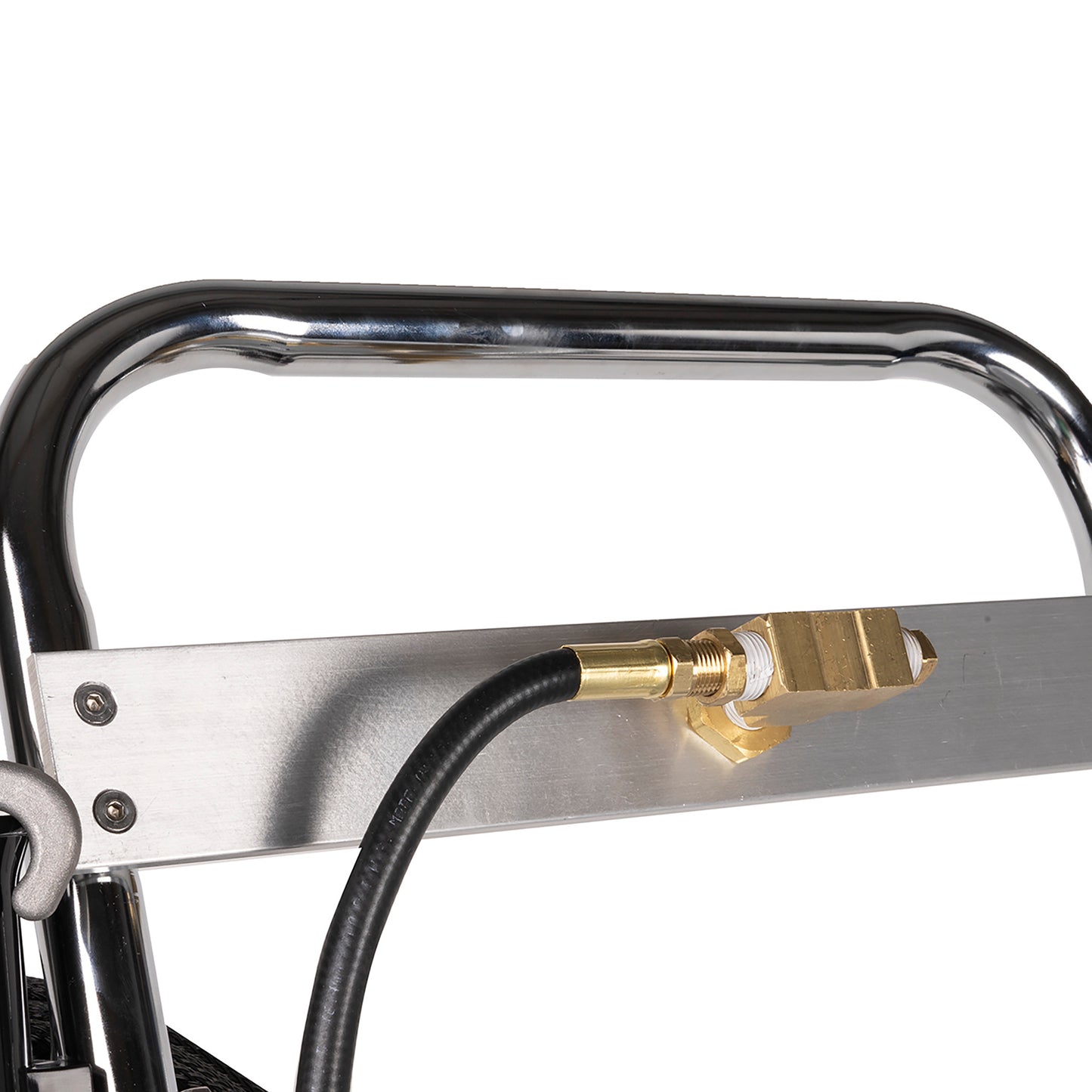

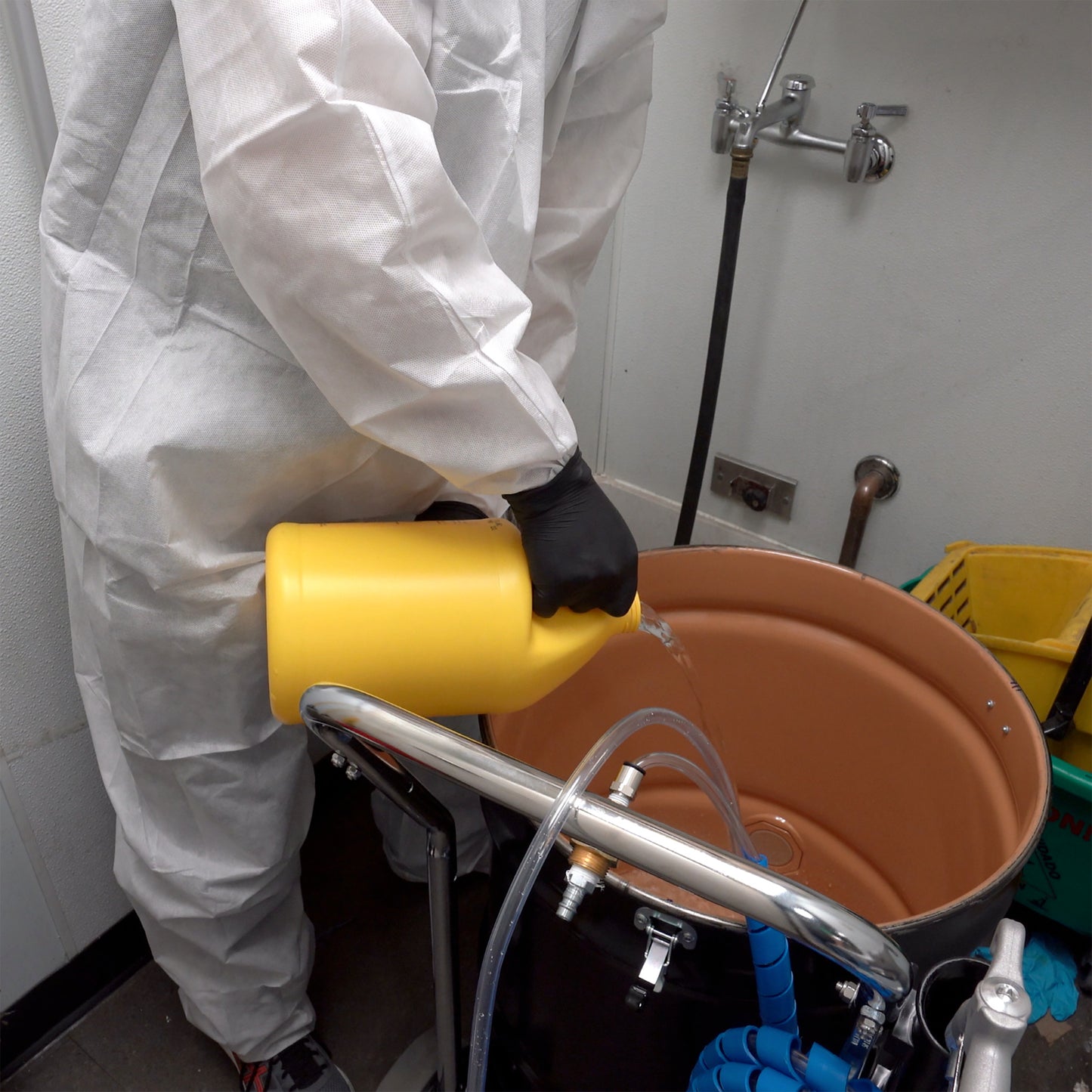

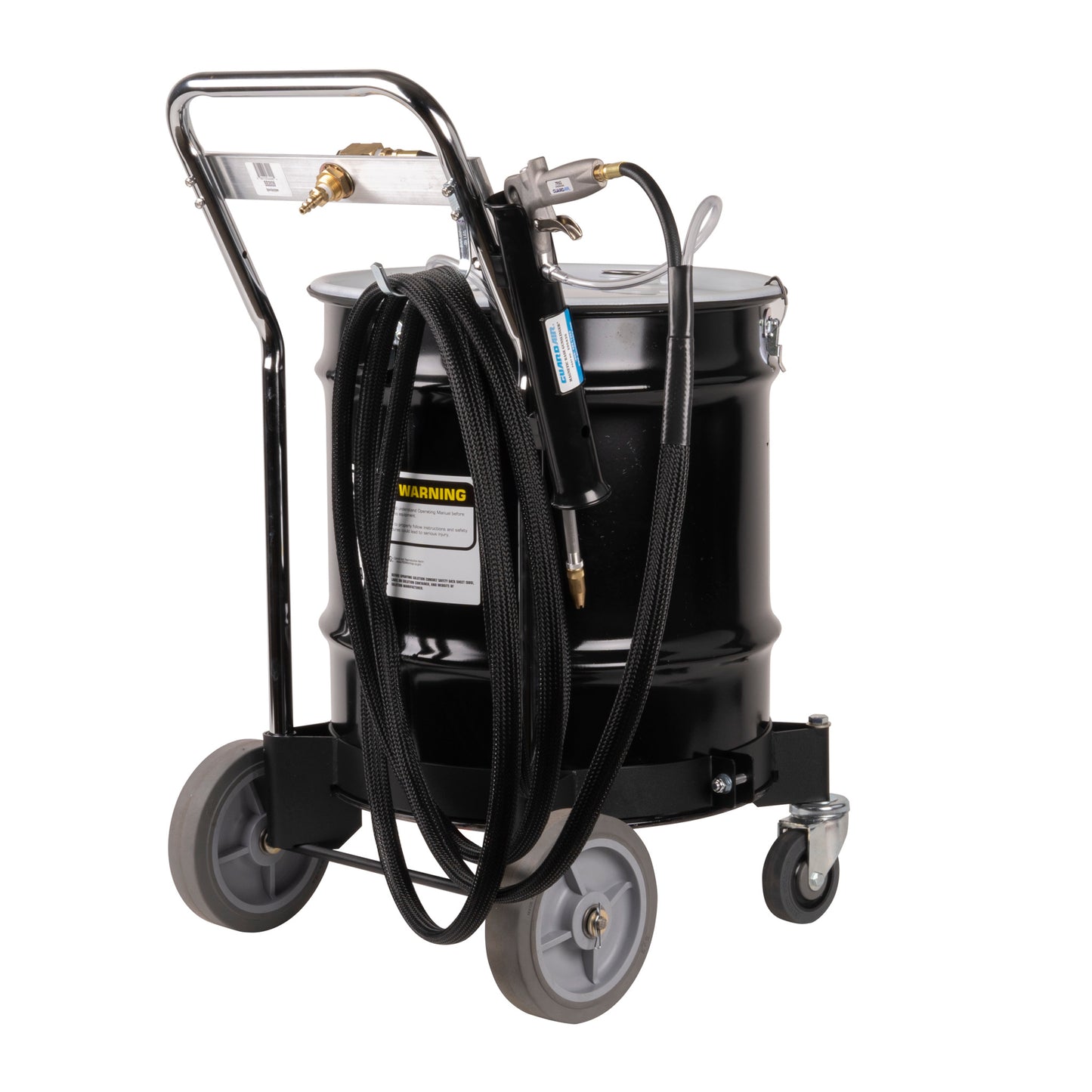

Powered by compressed air, the Syphon Spray System is a cost-effective alternative to expensive sanitizing cleaning services. Ideal for cleaning benches, tools, machinery and work surfaces with disinfectants and sanitizing solutions. Featuring a 12” Syphon Spray Gun drawing from a 20-gallon canister, the Syphon Spray System delivers up to 16 gallons of liquid per hour. Adjustable nozzle tip controls flow and spray pattern. 20-gallon steel canister stores cleaning solutions with a secure lid to avoid spillage while rolling. Canister mounted on maneuverable dolly with push handle. Components suitable for use with common, noncorrosive disinfecting solutions.

*Non-Returnable Item

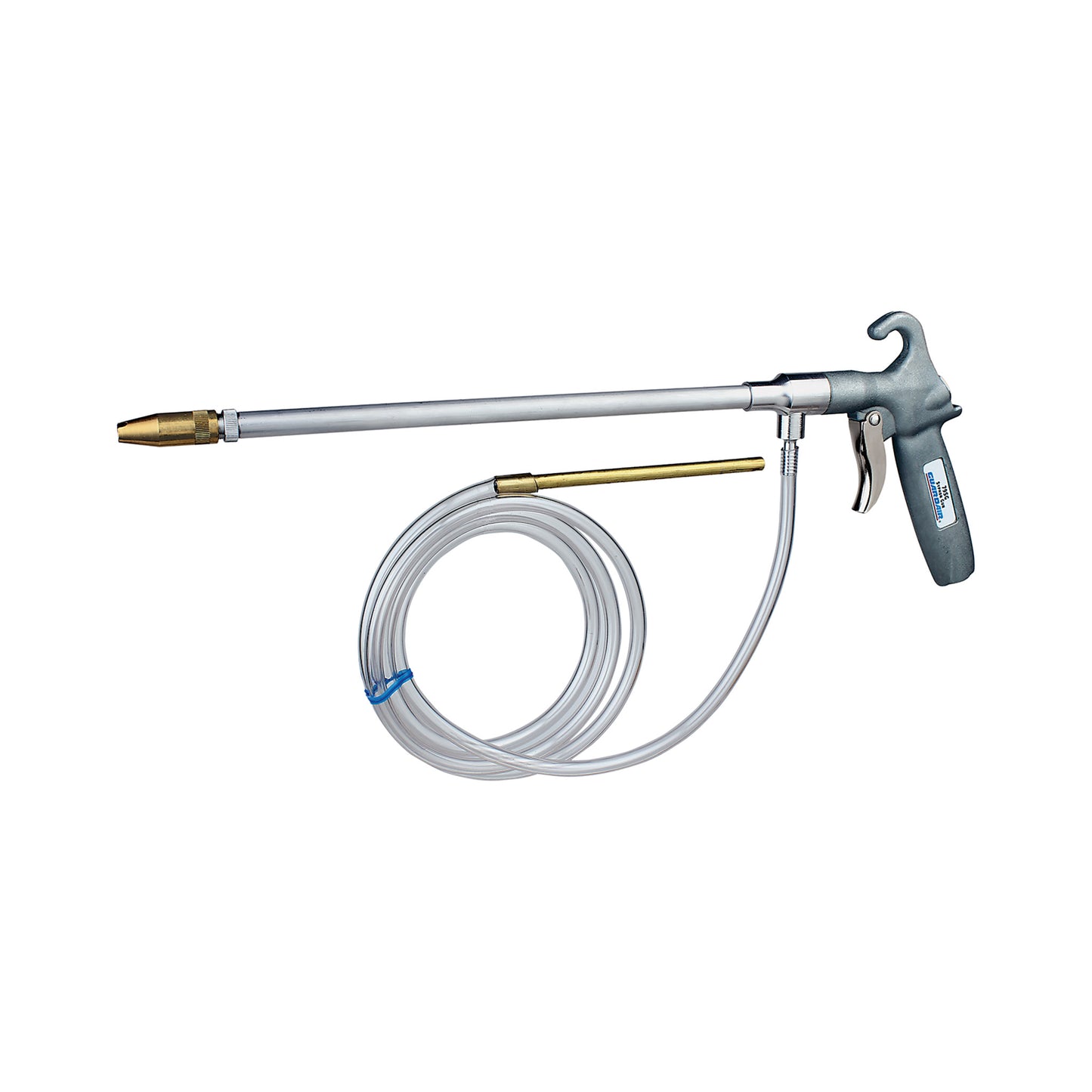

  • Versatile Syphon Spray Gun with 12" aluminum extension and adjustable brass nozzle

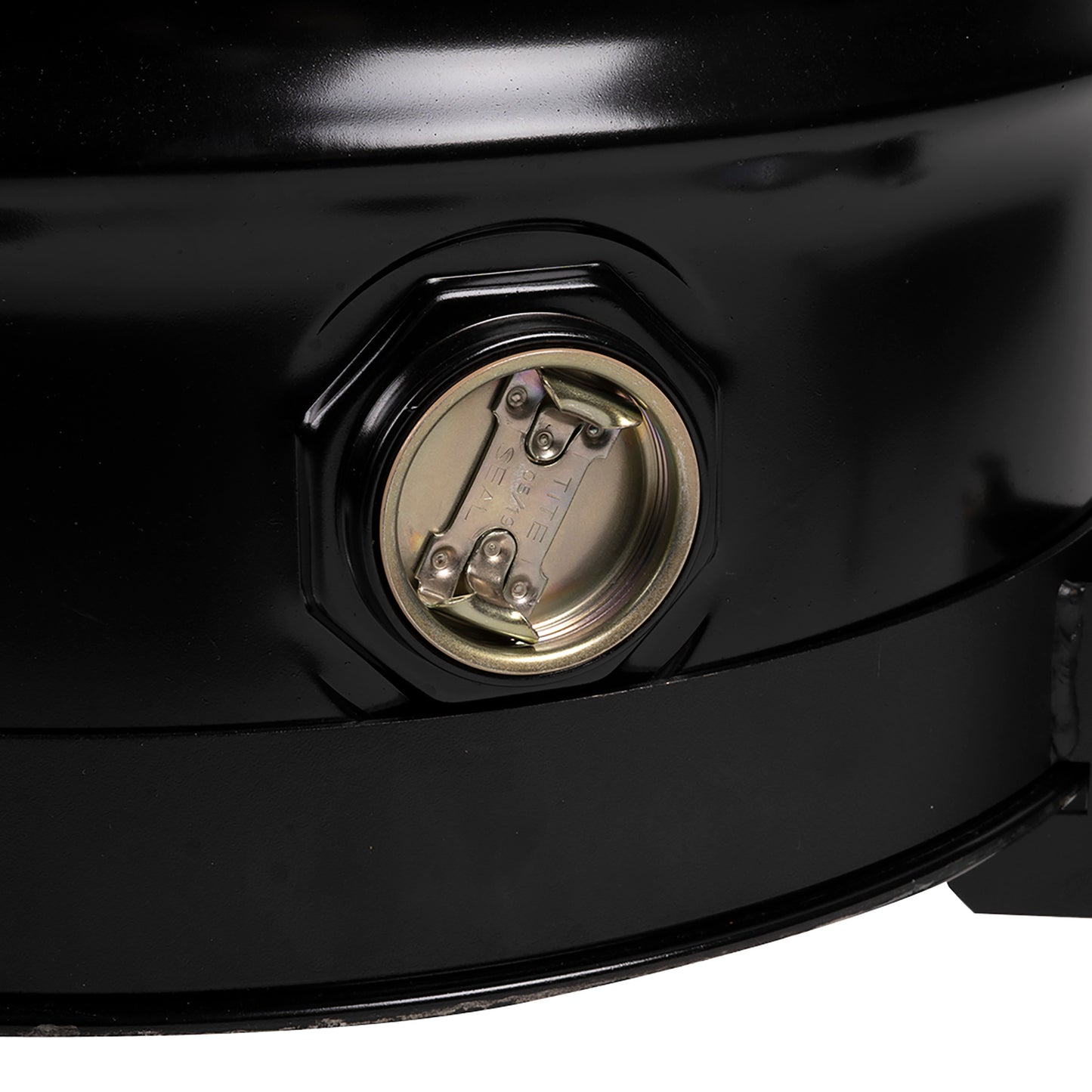

  • Heavy-duty, 18 gauge, 20-gallon steel canister

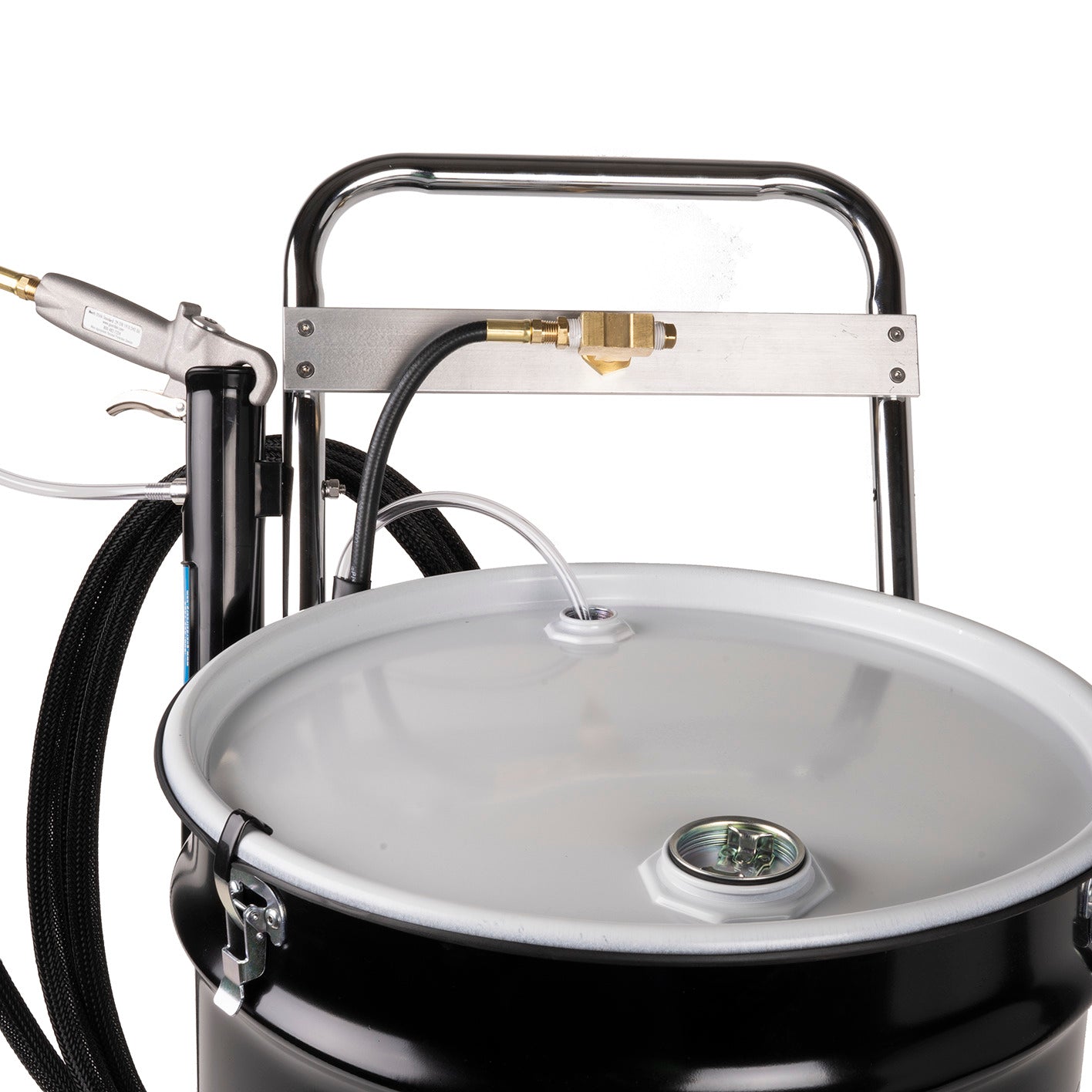

  • Removable lid with clamps

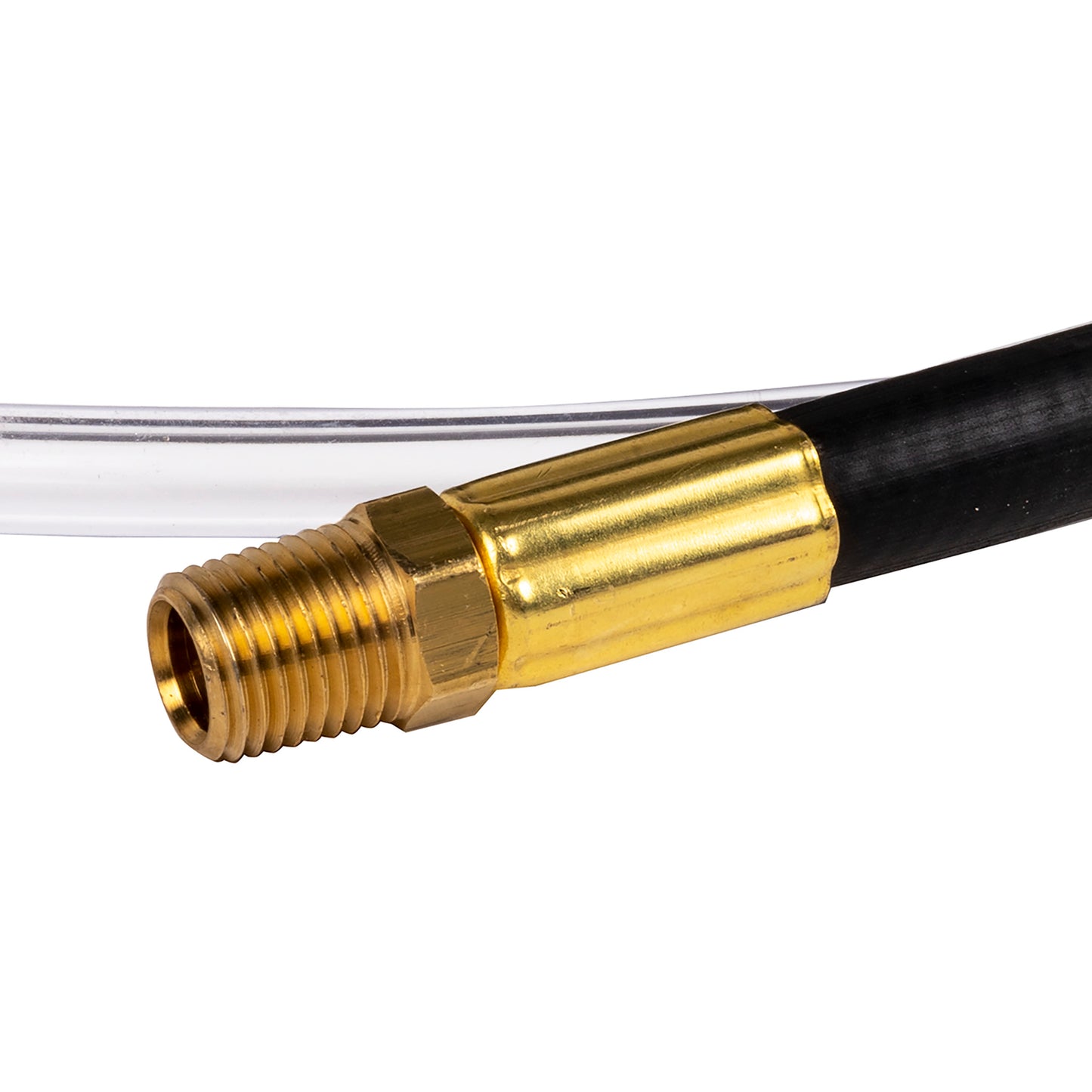

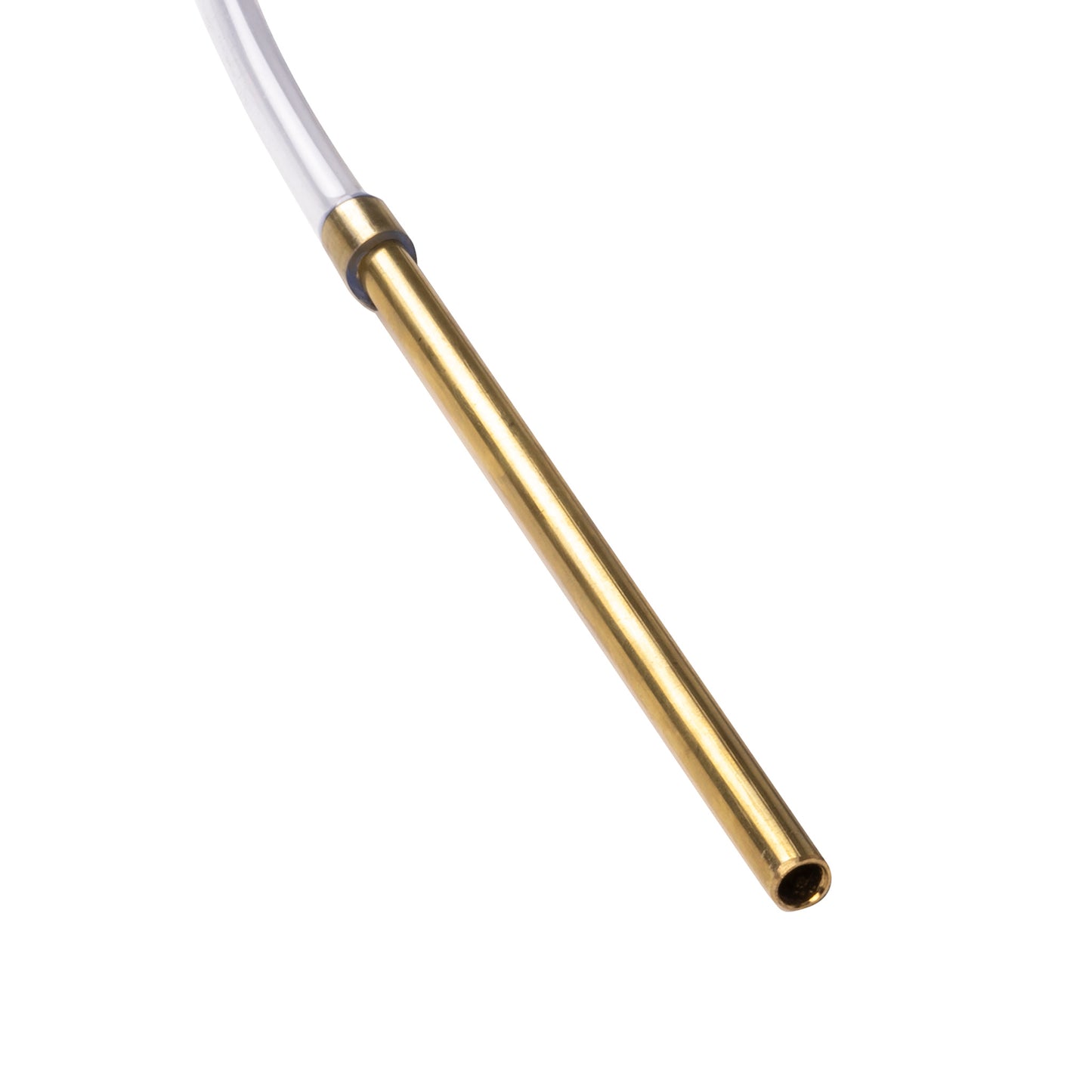

  • 20’ syphon hose assembly to reach remote locations
  • 3/8” NPT inlet with 1/4” Industrial Interchange plug
  • All metal construction with Syphon Spray Gun and hose storage
  • (1) 12" 79SG Syphon Spray Gun

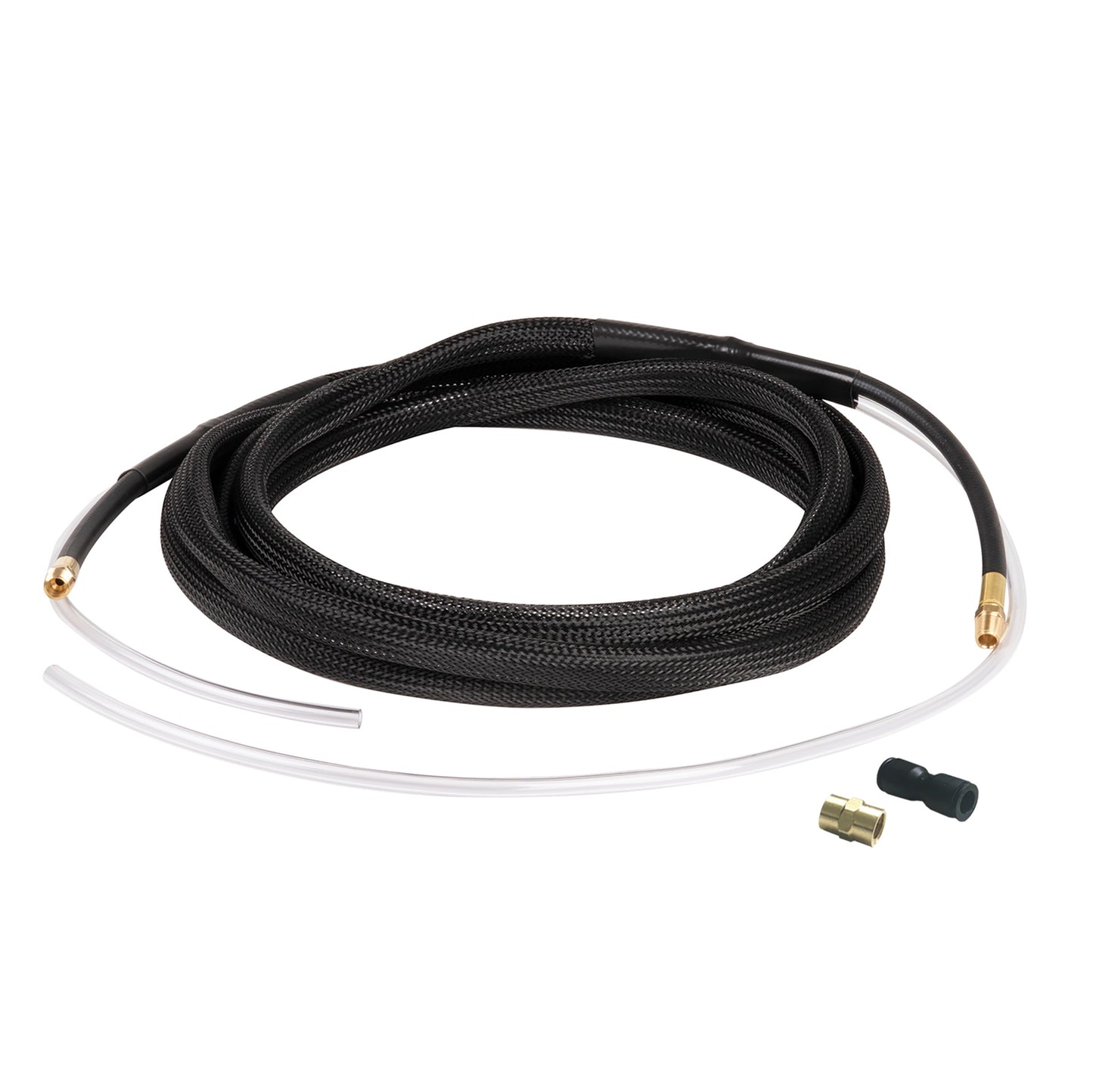

  • (1) 20’ Air/Syphon Hose Assembly
  • (1) 20-Gallon Steel Canister with Removable Lid
  • (1) Drum Dolly Assembly
Part NumberAir Inlet
FNPT (in)
Min. Compressor Required (hp)Flow (cfm)Syphon Flow Rate (gph)Steel Drum GaugeDimensions
(L" x W" x H")
Weight (lbs)
Part Number SS2020 Air Inlet
FNPT (in)
Min. Compressor Required (hp) 2 Flow (cfm) 9 Syphon Flow Rate (gph) 16 Steel Drum Gauge 18 Dimensions
(L" x W" x H")
27 x 20.8 x 35.5
Weight (lbs) 52

Lead time: 3 days

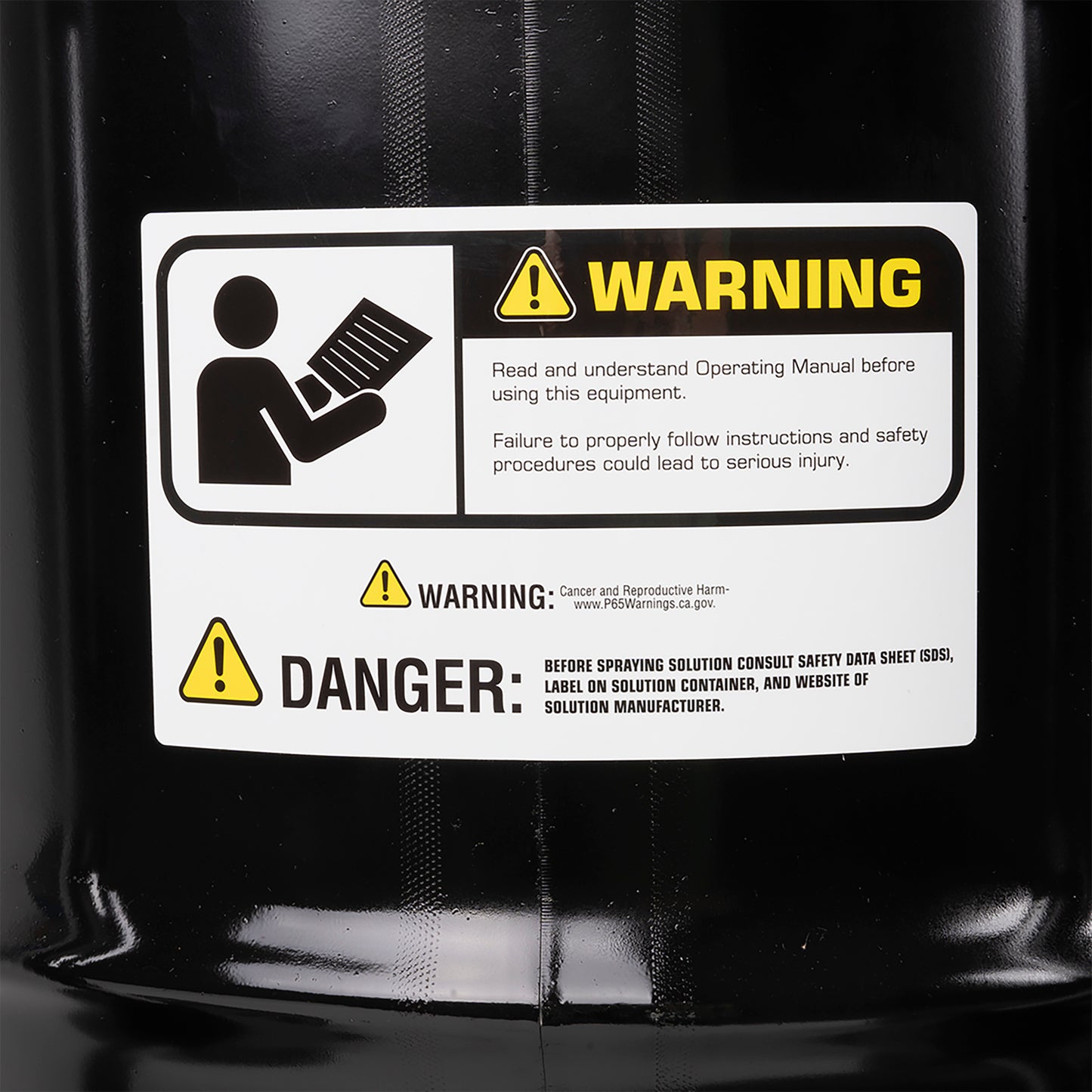

 WARNING: Cancer and Reproductive Harm -
